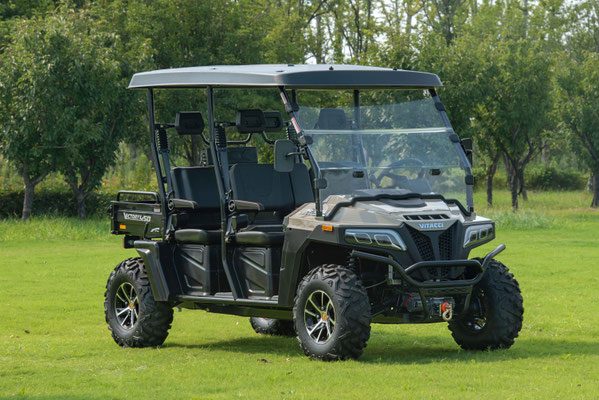

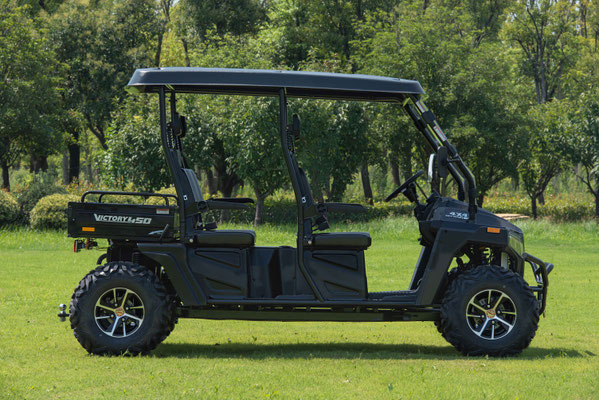

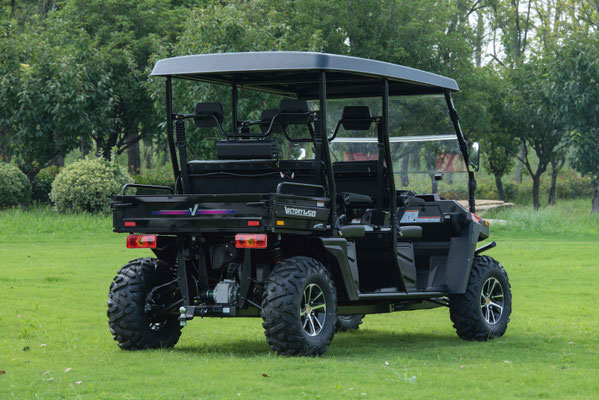

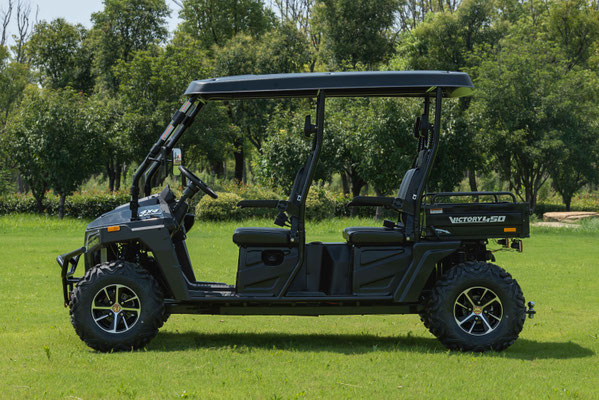

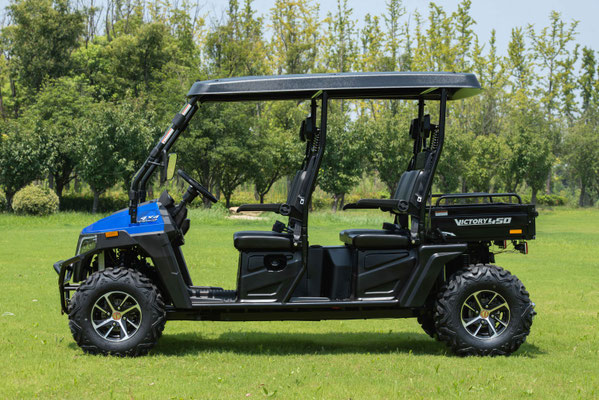

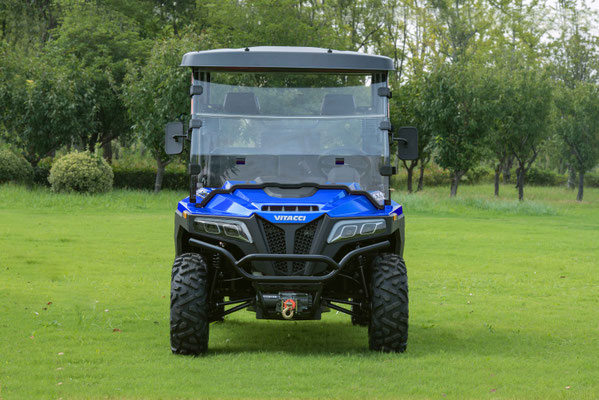

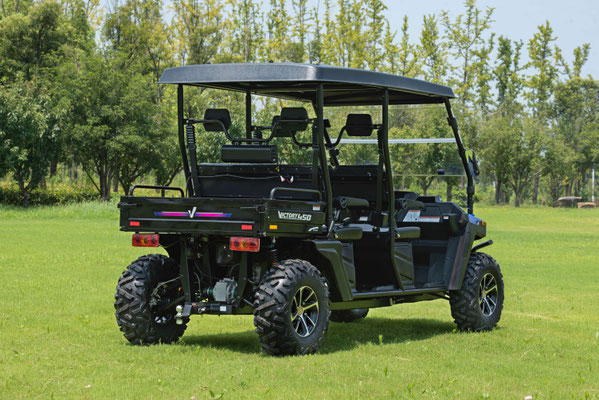

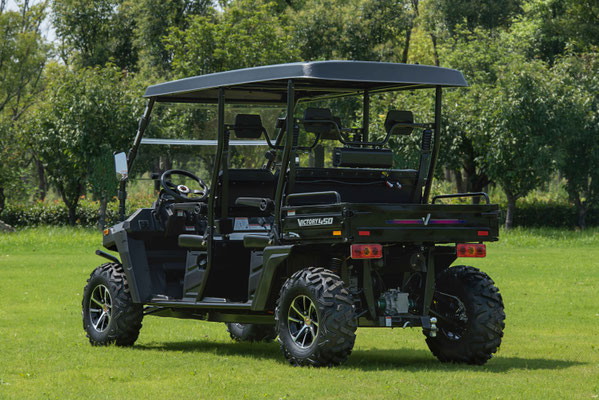

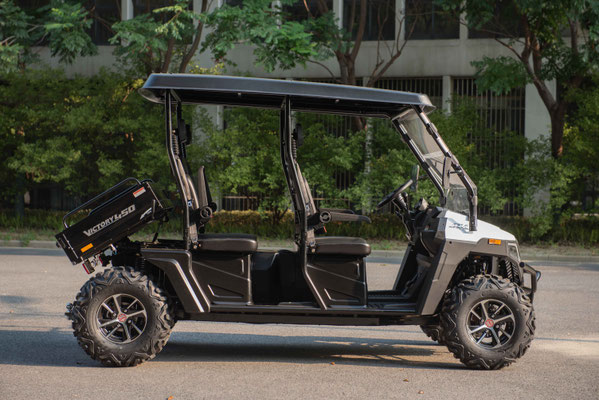

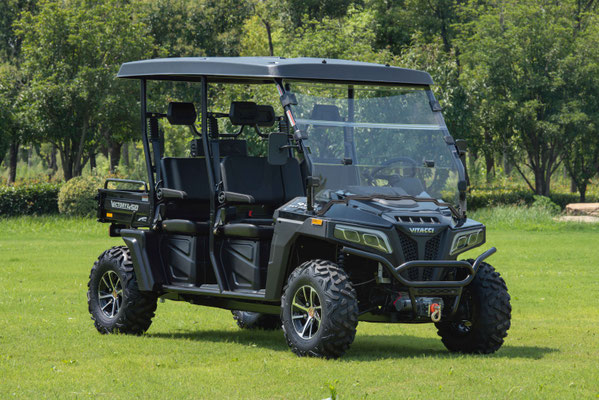

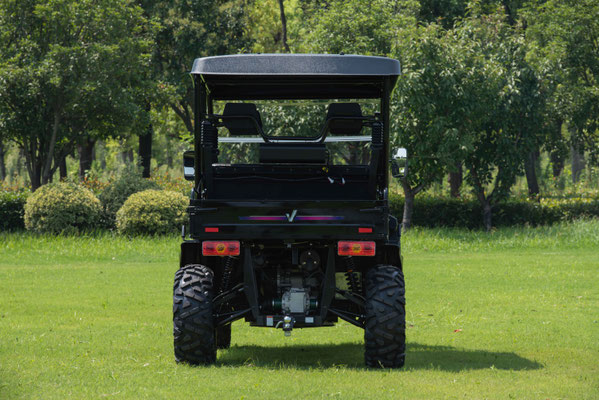

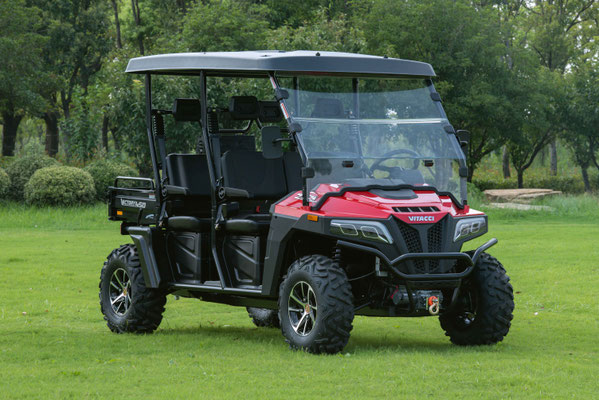

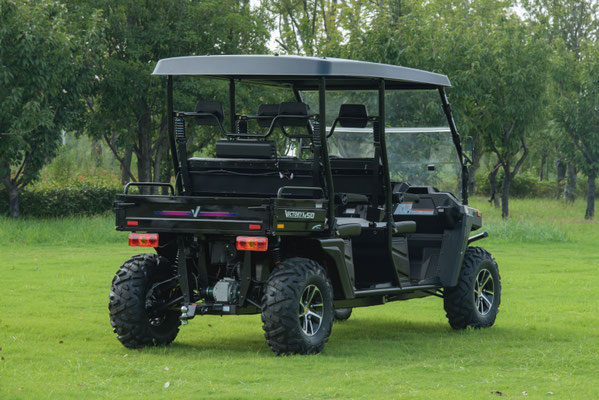

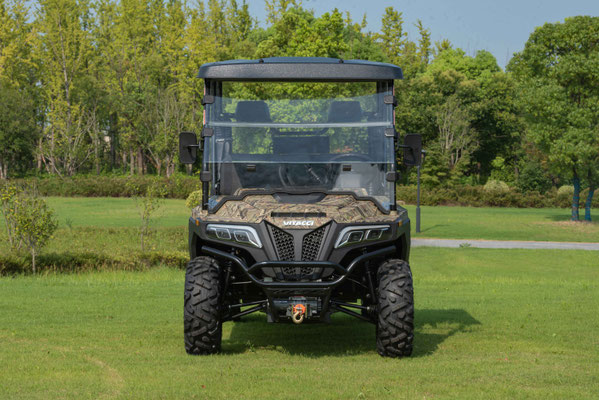

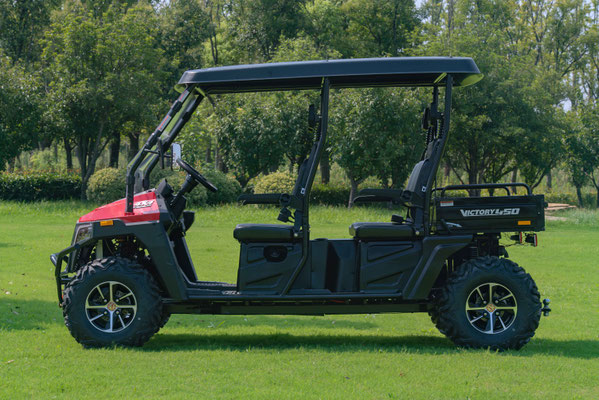

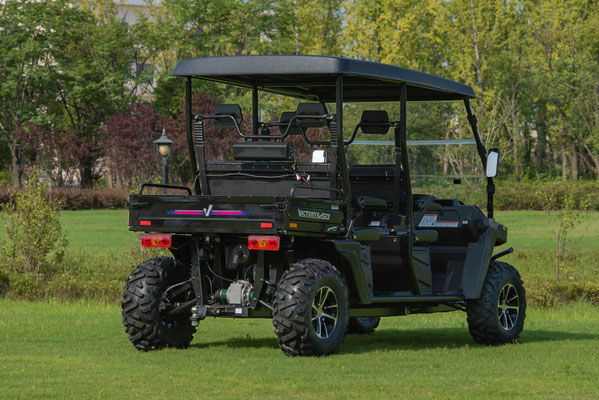

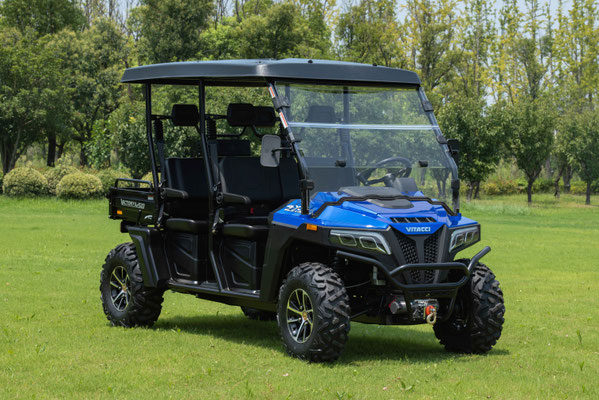

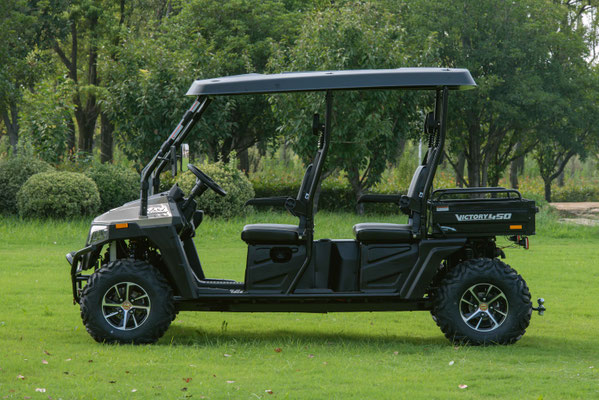

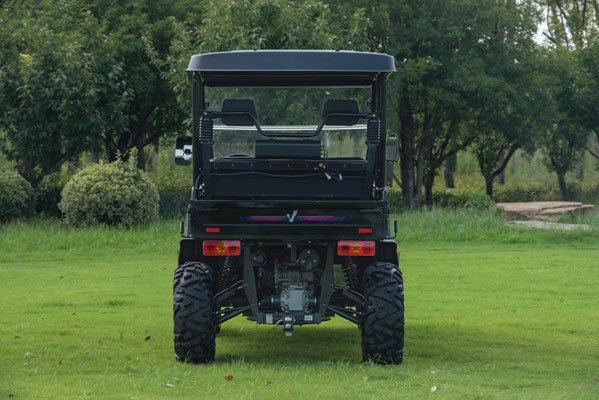

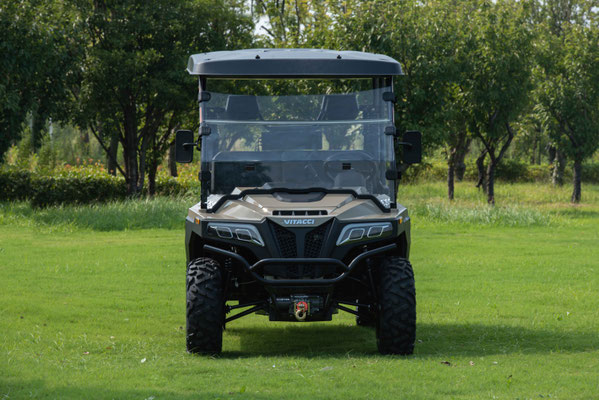

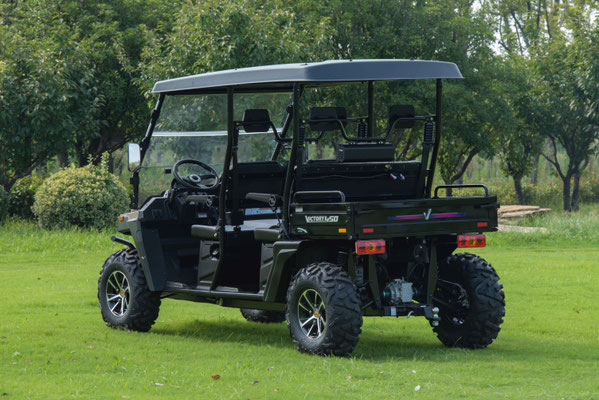

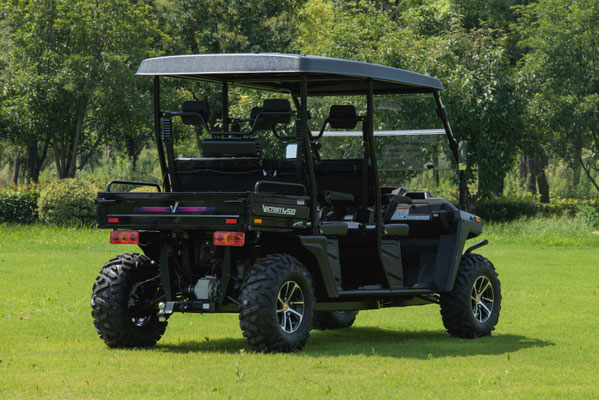

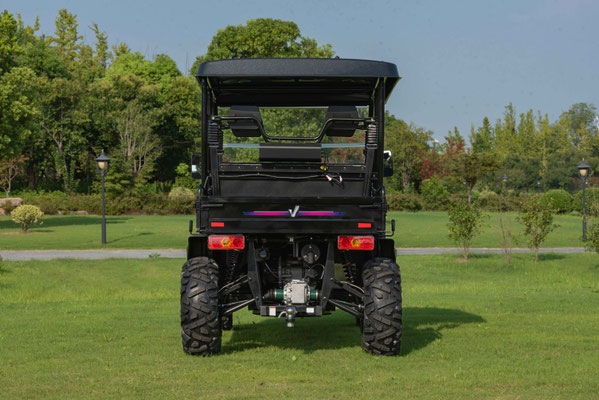

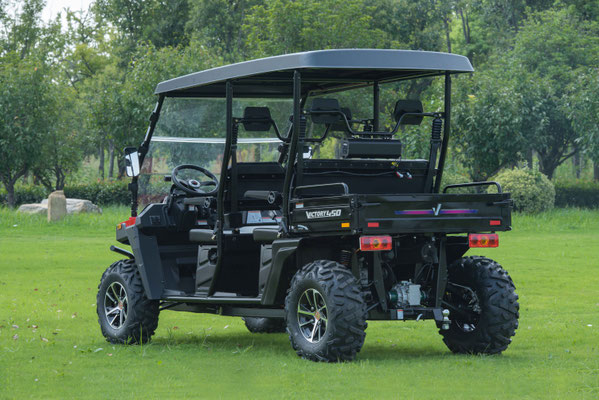

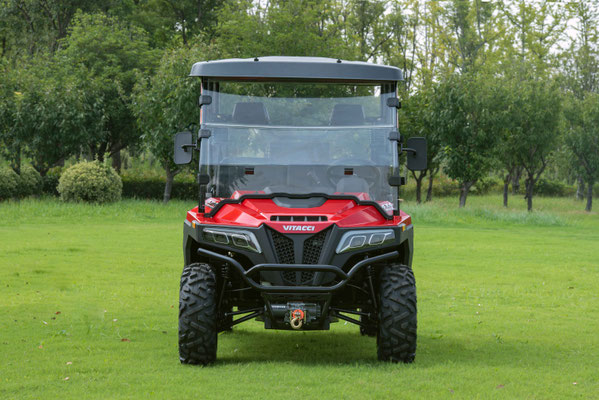

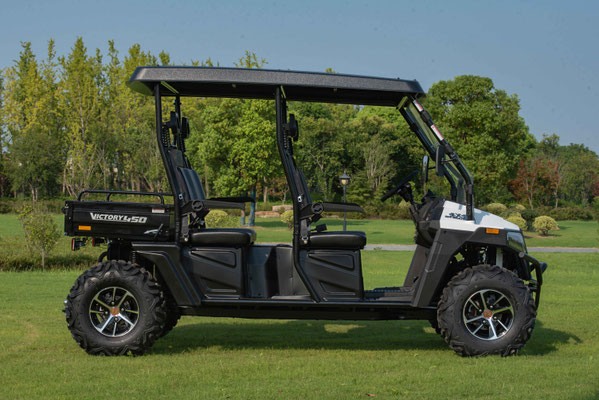

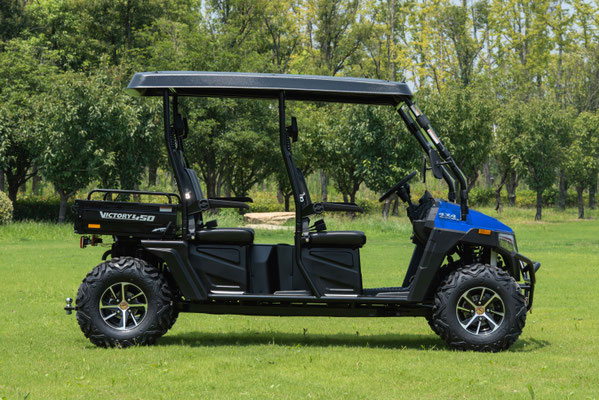

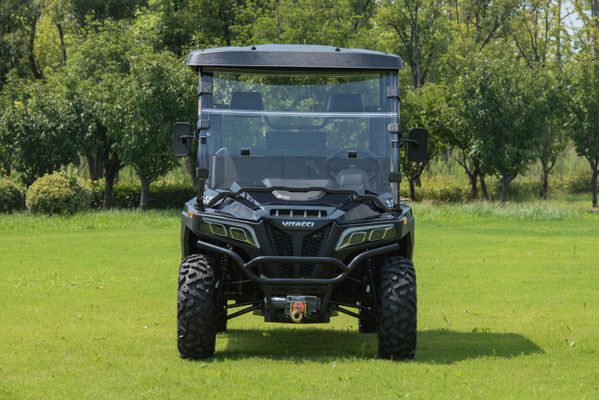

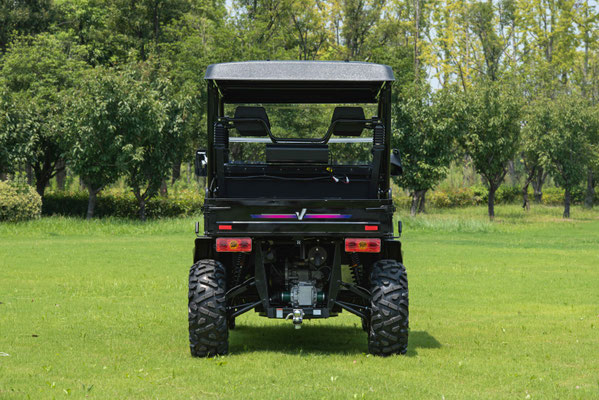

VICTORY 450 PRO DLX - DUMB BED (4 SEATS)



                    Victory 450 Pro-Deluxe Specification (Dump bed)
  Vehicle Specification    Length × Width ×Height 3300×1440×1980mm
Wheelbase 2495mm
Minimum Ground Clearance 230mm
Seat High 830mm
Weight With Full Equipments 595kg
Rear Cargo Box Load Capacity 100kg
Single Driver Top Speed 65km/h
Fuel Tank capacity 30L
Front Brake Type Hydraulic Disc Brake
Rear Brake Type Hydraulic Disc Brake
Parking Type Hand Brake
Drive Mode 4WD, Front and Rear Differential (Rear with Lock), Engine Balance Shaft
Control Way Steering Wheel

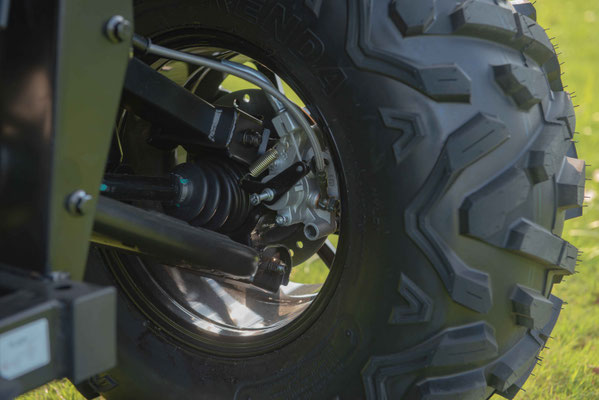

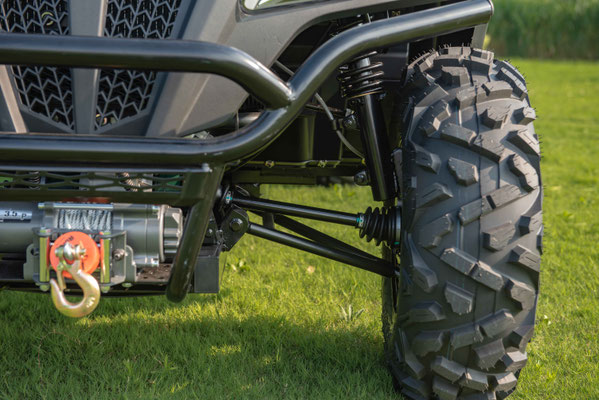

Front Suspension Type McPherson Independent Suspension
Rear Suspension Type Dual A-ARM Independent Suspension

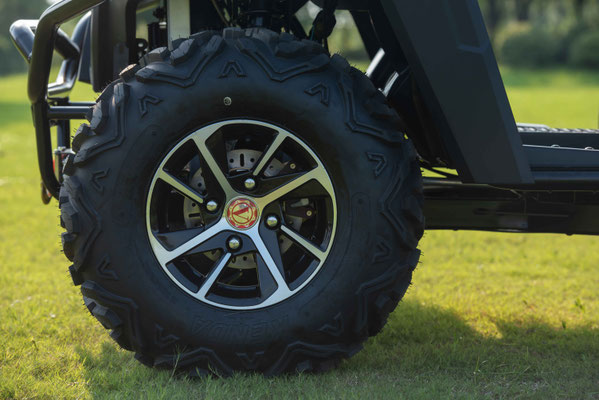

Tire Type Front AT25×8-12 / Rear AT25×10-12
Dump Bed Inside Size 700×1190×265mm
Dump Bed Maximum Tipping Angle 35°
  Engine Specification Engine Type Single cylinder, four stroke, water cool, overhead camshaft
Cylinder Volume 391ml
Compression Ratio 10:01
Fuel System Electronic Fuel Injection
Ignition Way Electric Start
Transmission Way CVT transmission, Belt
Max Power and Crankshaft Speed kW/(RPM) 20kW/ 6500—7000 r/min
Max Torque and Crankshaft Speed  N.m/(RPM) 30N.m/5000 r/min
Lubrication Oil SAE 15W-40
