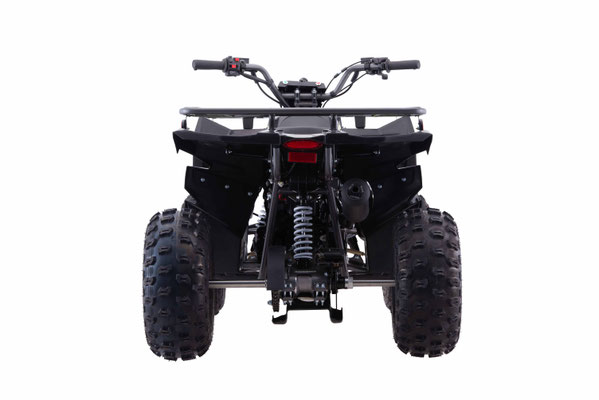

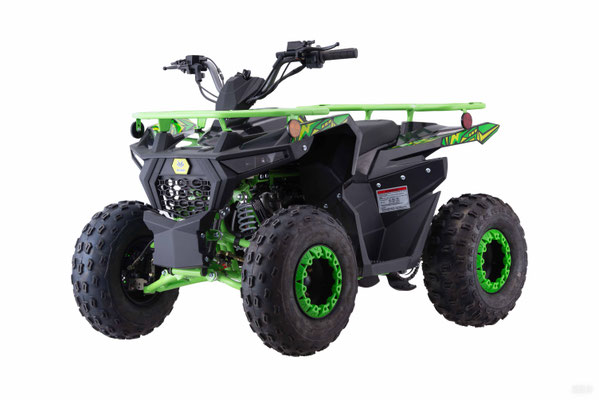

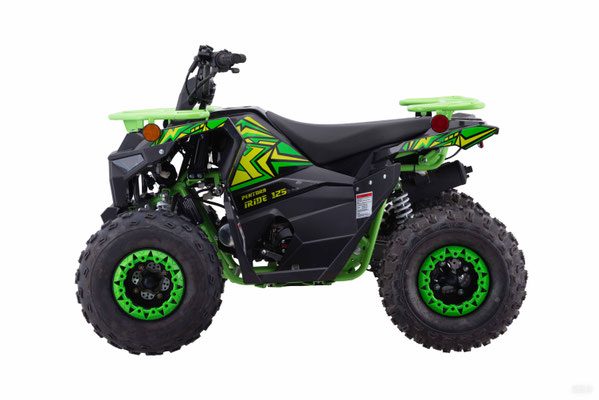

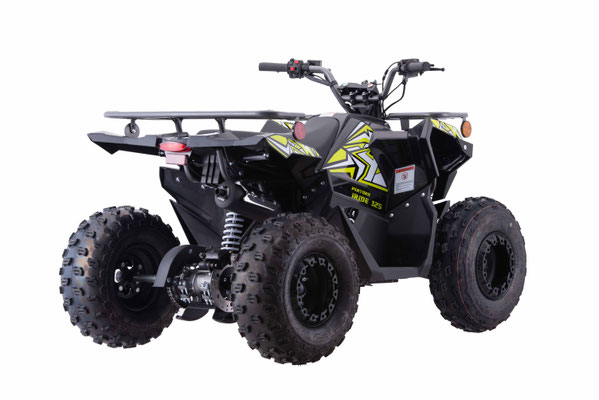

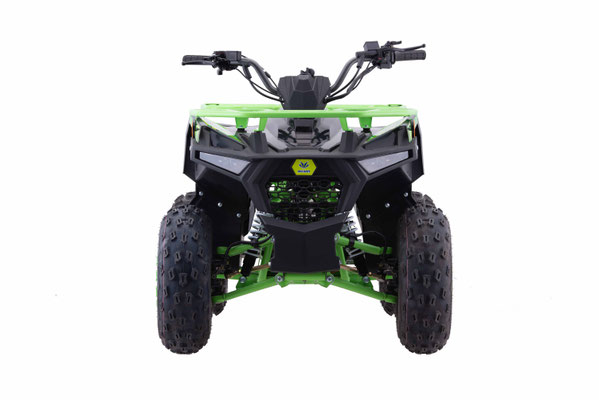

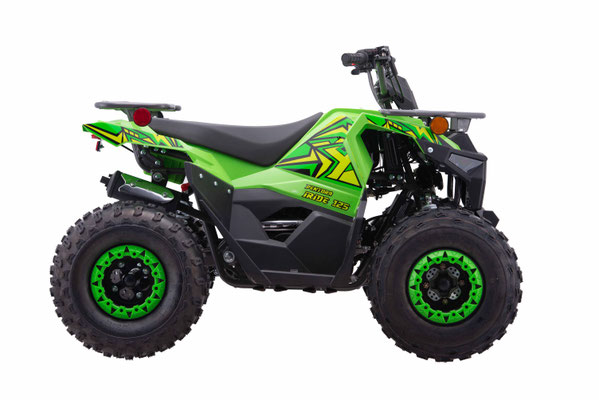

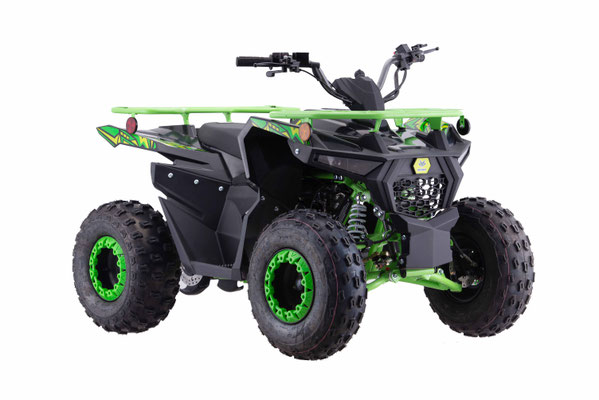

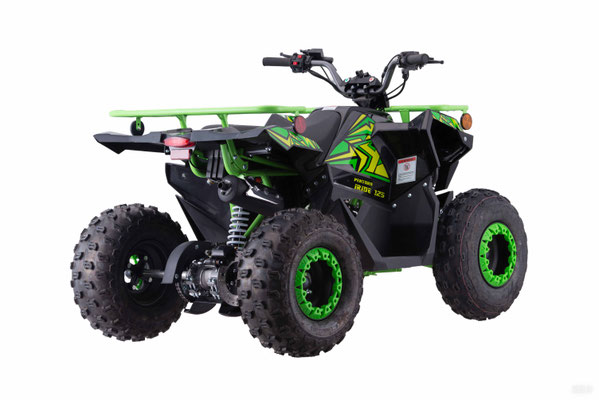

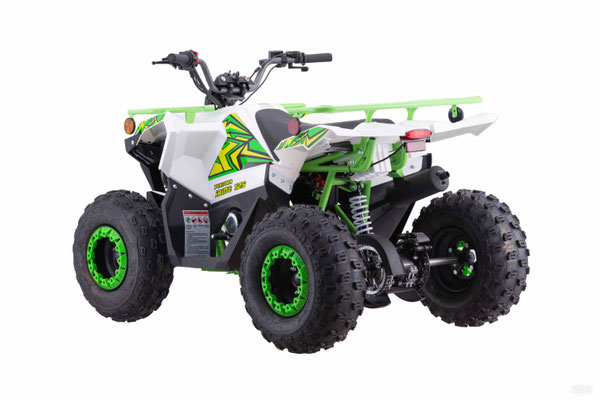

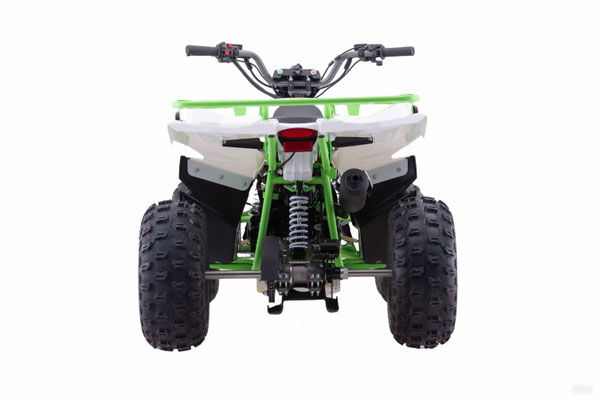

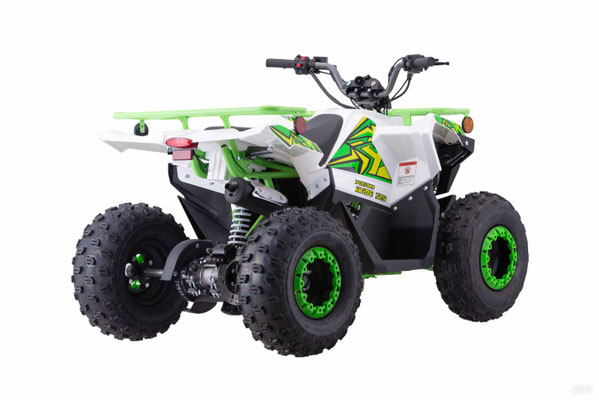

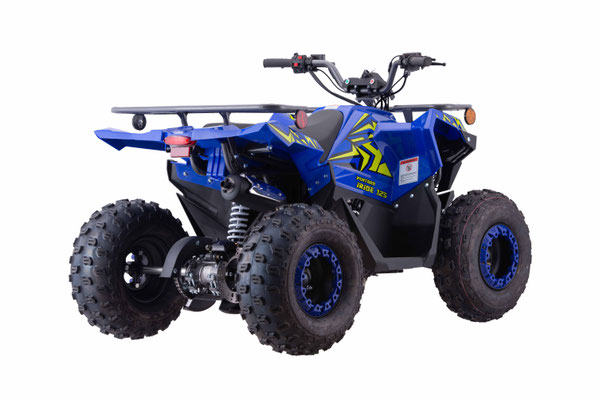

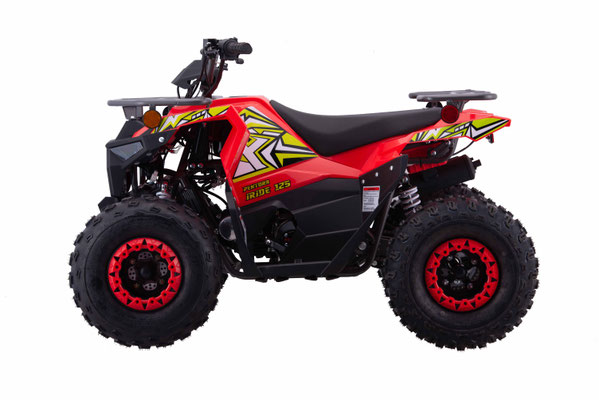

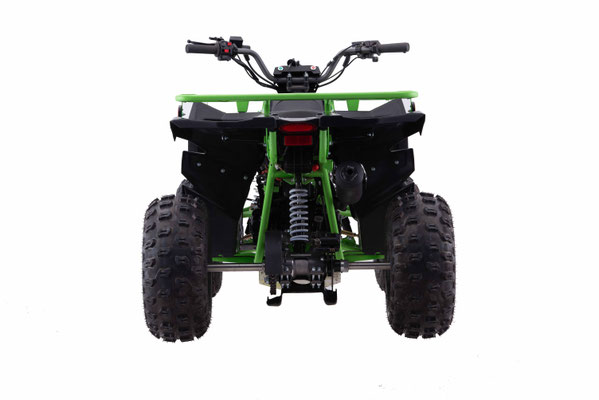

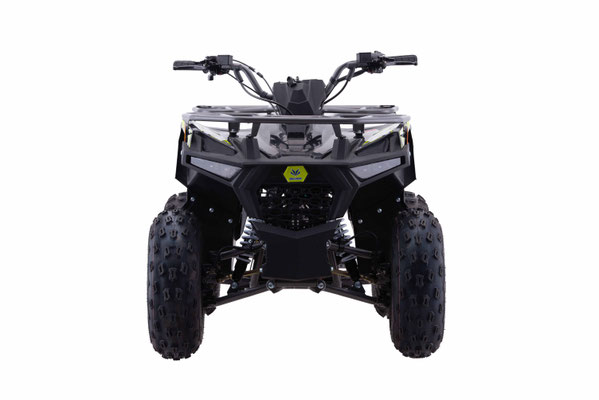

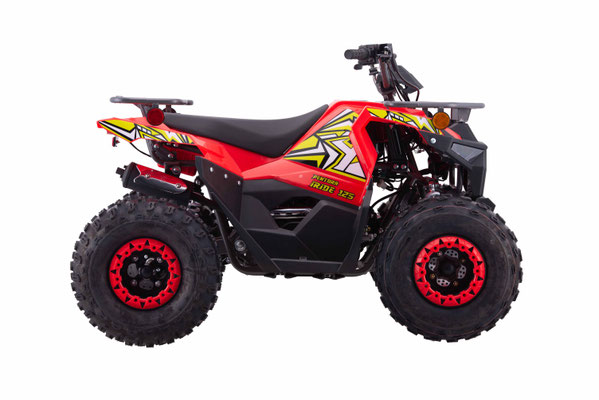

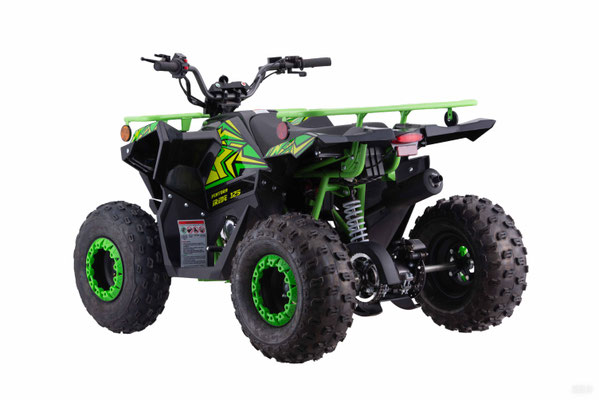

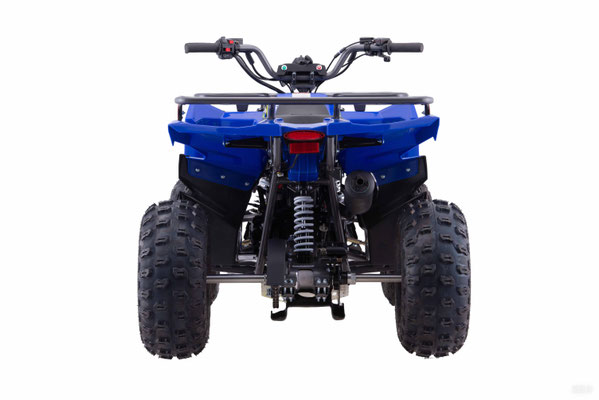

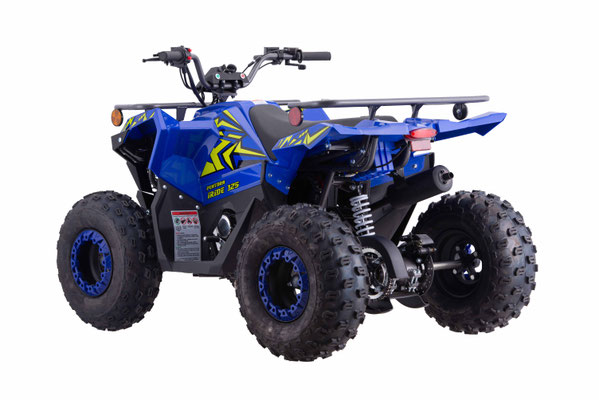

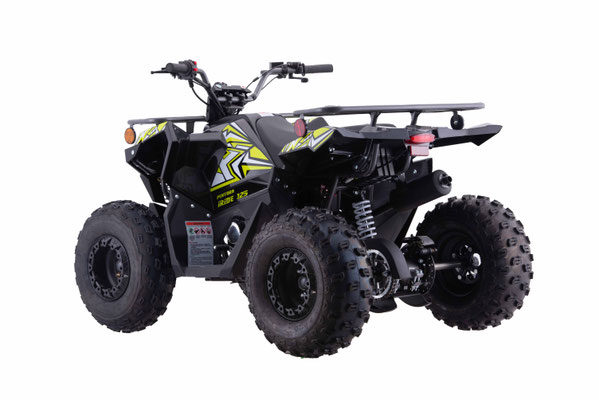

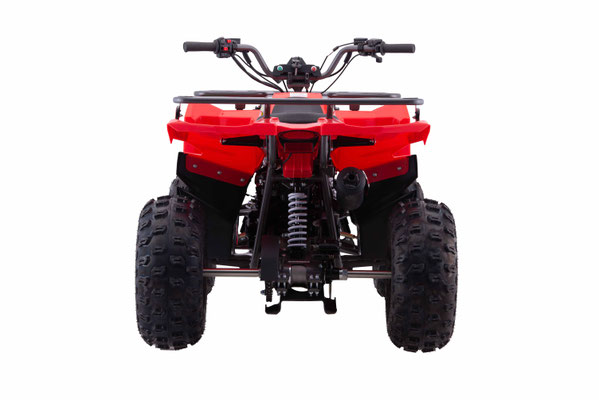

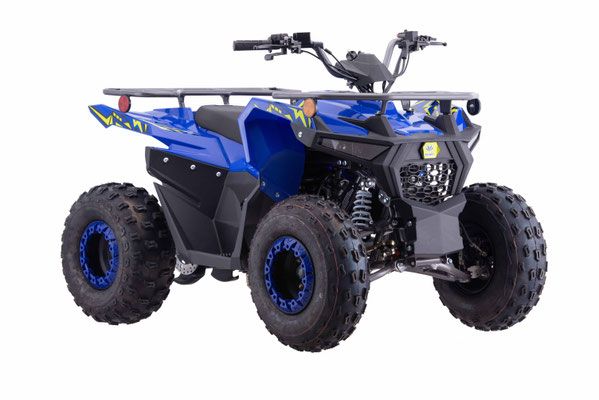

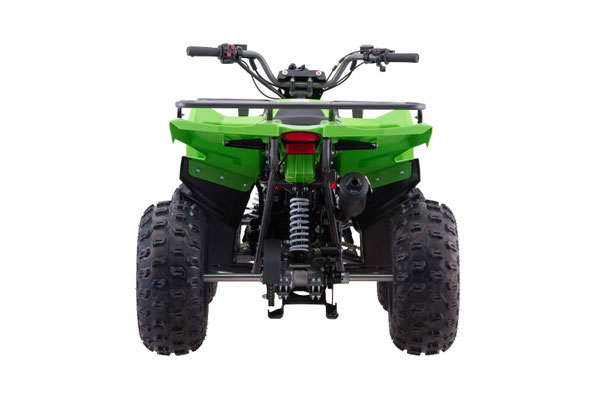

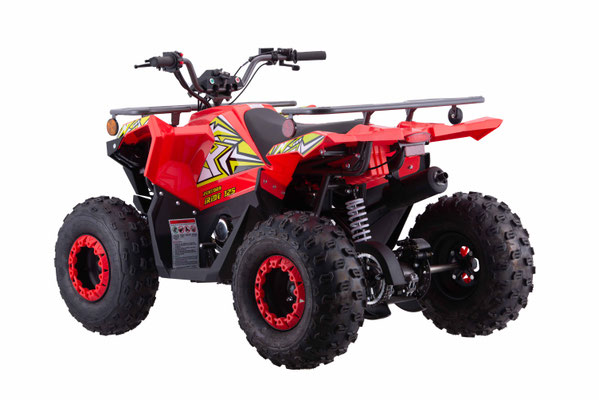

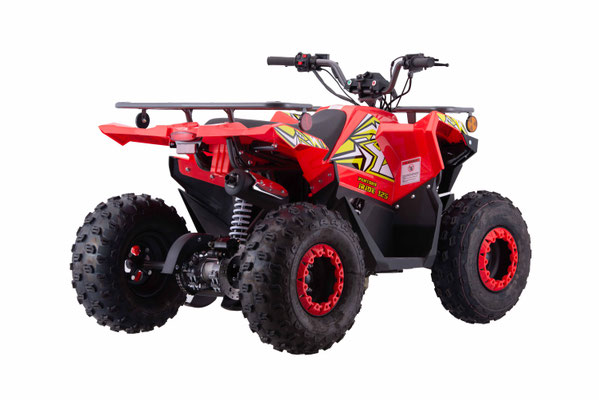

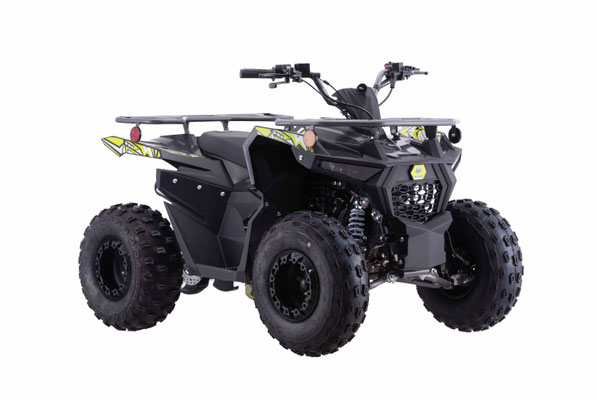

PENTORA IRIDE 125cc



PENTORA IRIDE 125 SPECS:



ITEMS SPEC
 Engine Mode ZS154FMI-5
 Engine Type
Single cylinder,4-stroke,air-cooling, camshaft upward, with balance shaft,tilting (10°leaned)
 Displacement(ml) 123.67
 Max.Power(kw/r/min) 〔6.3(1±10%)〕/〔7500(1±5%)〕

Max.Torque (N.m/r/min)
〔8.8(1±10%)〕/〔5500(1±5%)〕
 Compression Ratio 9.0:1

Bore and Stroke(mm×mm)
54×54
 Ignition method CDI
 Lubrication method    Pressure and Splash
lubricating oil 15W/40-SE(-10TO 40℃) HQB-10(<-10℃)
Starting method E-START
Clutch method  Automatic Wet Multi-Plate

Gearshift Method
 Constant mesh, two stage transmission ,4-speed Gearshift
TRANSMISSION chain
spark A7RTC
atv size 1430×965×950
Wheelbase  mm  970±20mm
wheels distance mm front 750±15mm/ rear 760±15mm
seat height mm 700±15mm
clearance mm 180
Minimum turning circle radius mm 2500±500mm
sprocket front 428-14; rear :428-42
brake fr & rear disc brake
brake method front and rear hand brake
rim front and rear 8 inch
tyre front:18×7-8/rear :18×9-8
front suspension oil dumper/270mm
rear suspension oil dumper/285mm
height from foot padel to seat mm 445±15mm
front light 2-12V/25W
tail light LED
turning light /
carb PZ19
oil tank 7L
frame  Double beam welded frame
rear swing arm  Tube and plate structure
max loading kg 82
N W  kg 109
G W kg 131
packing steel frame+carton
packing size 1310×850×650
loading qty 92pcs/40QH
