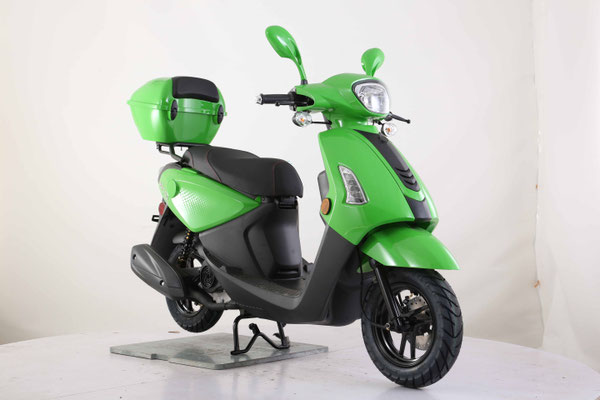

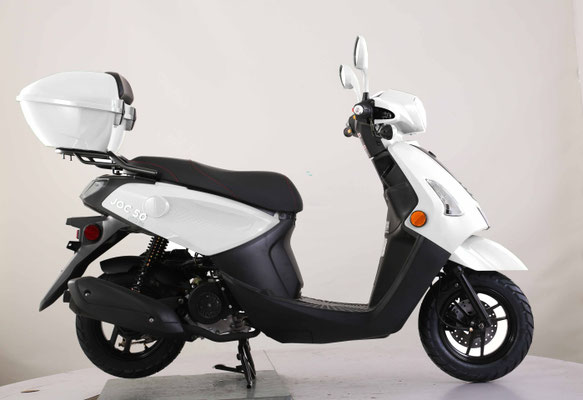

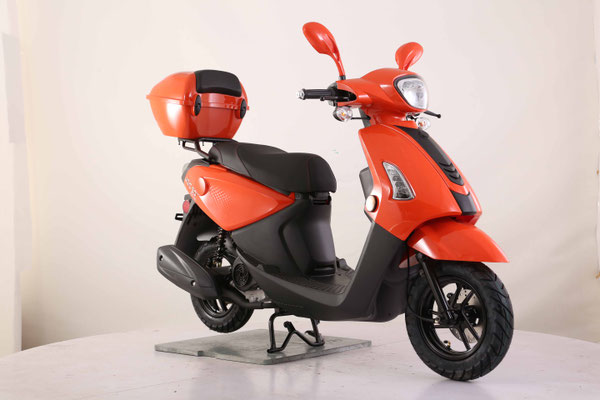

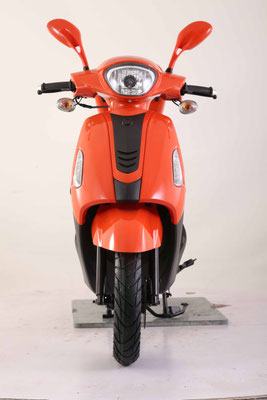

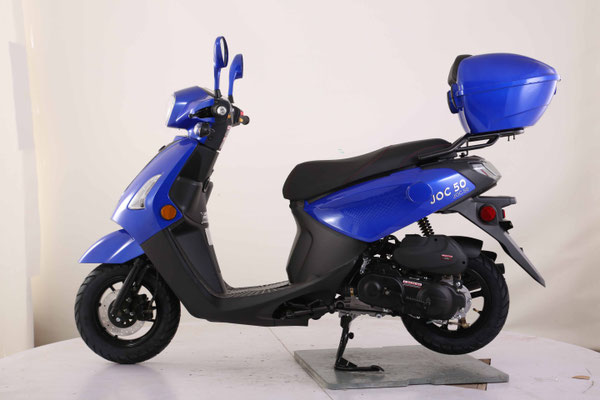

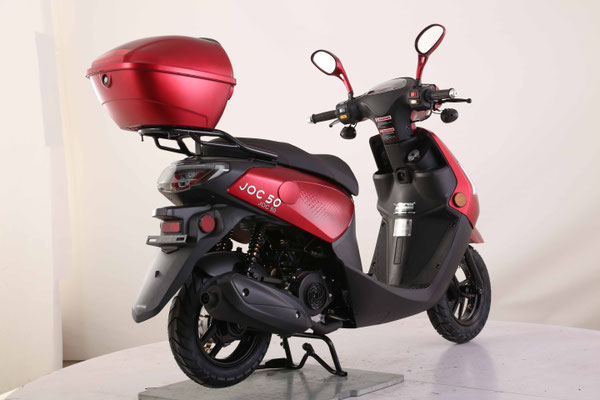

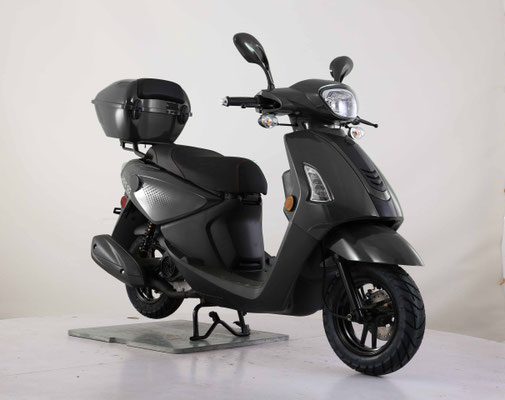

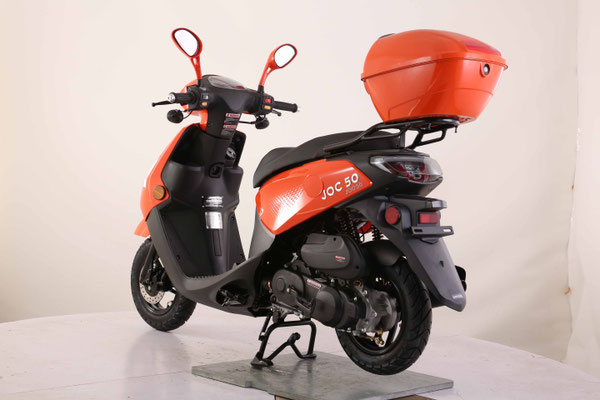

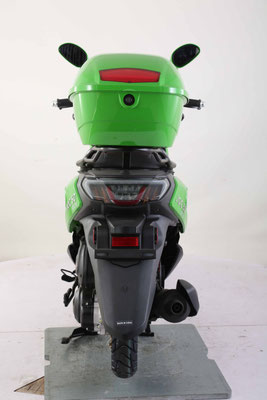

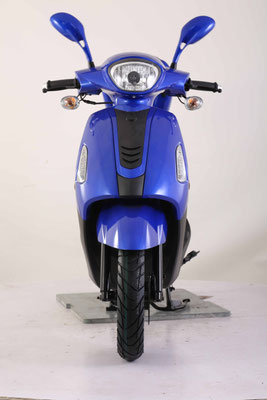

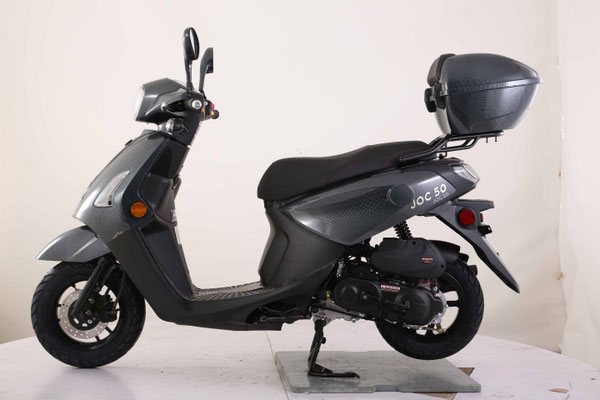

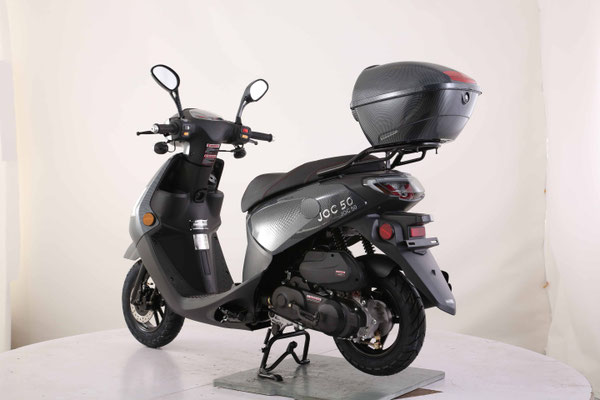

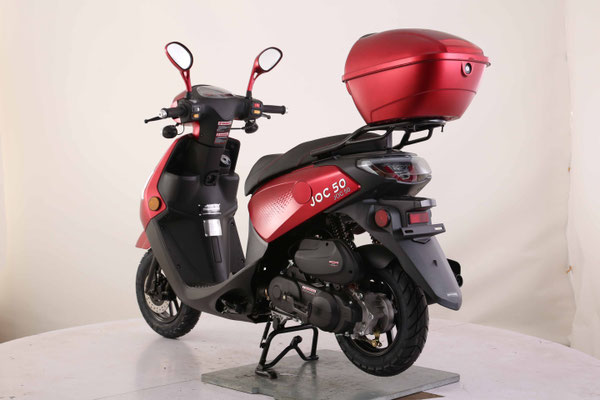

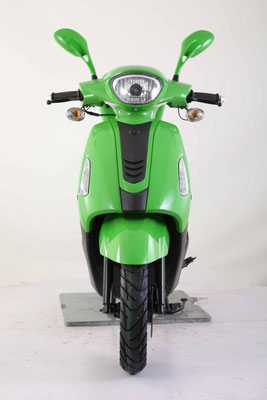

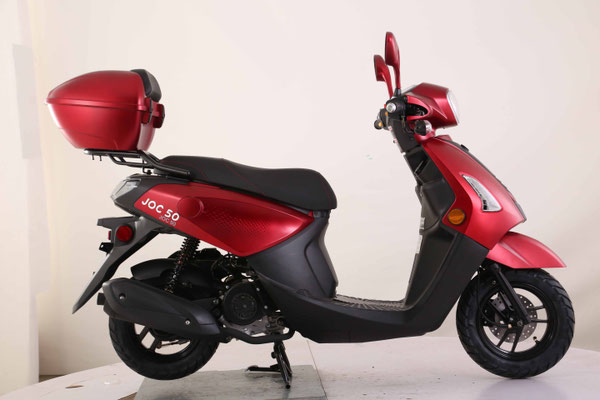

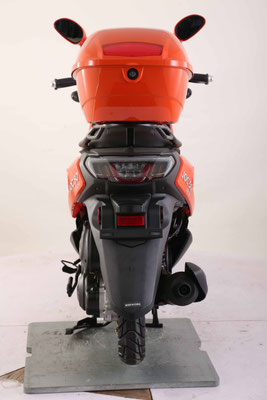

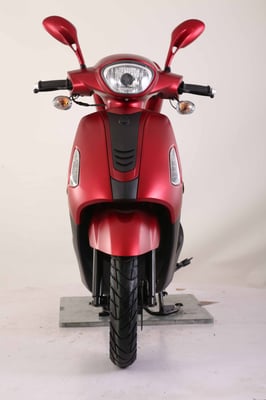

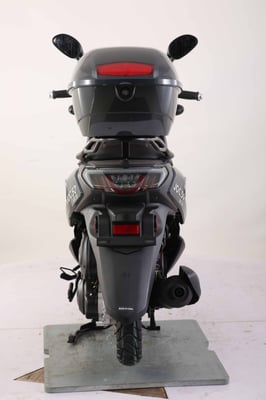

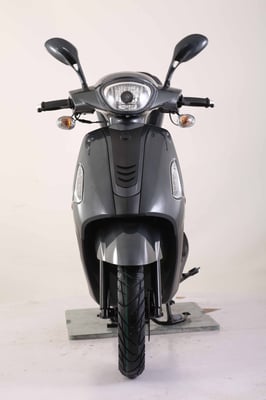

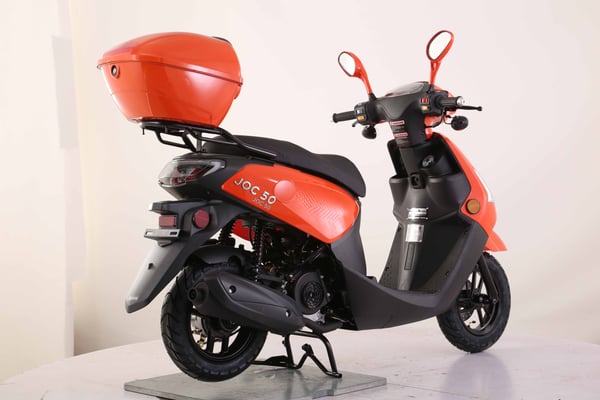

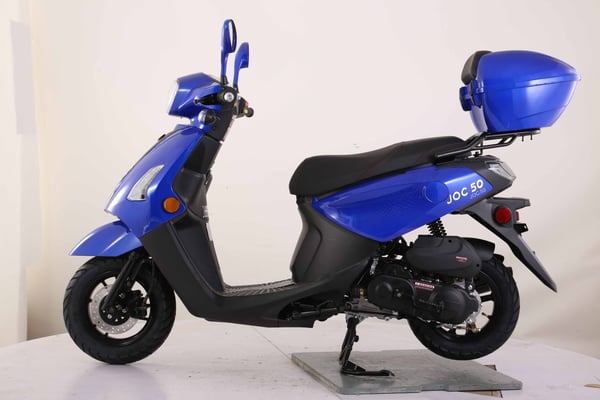

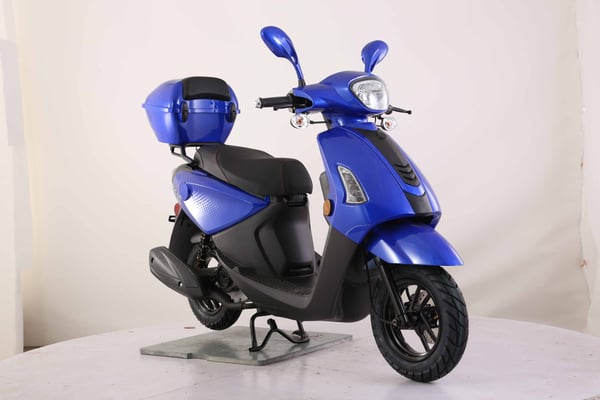

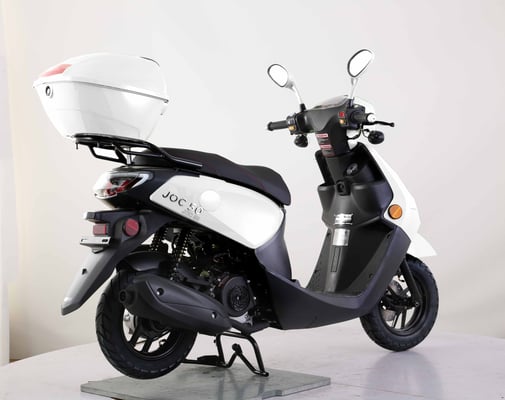

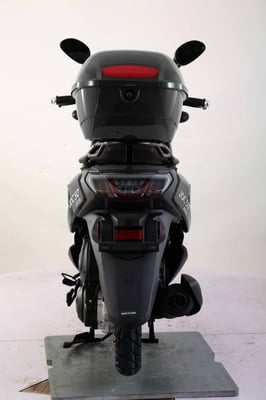

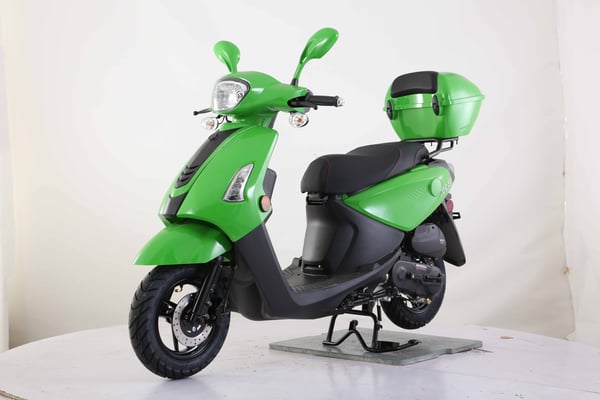

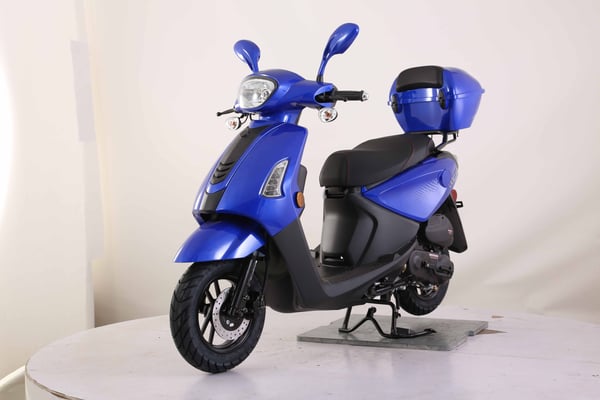

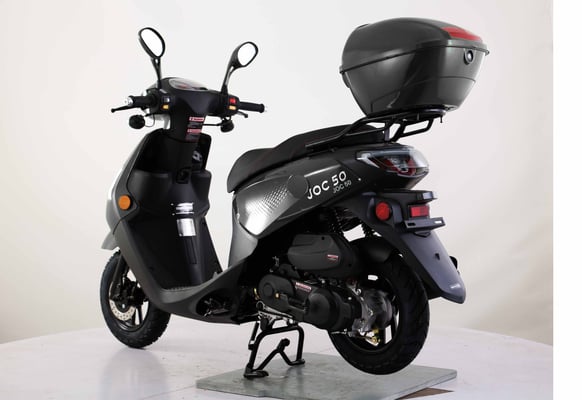

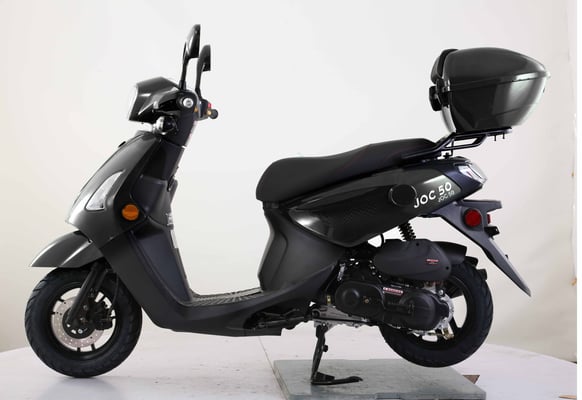

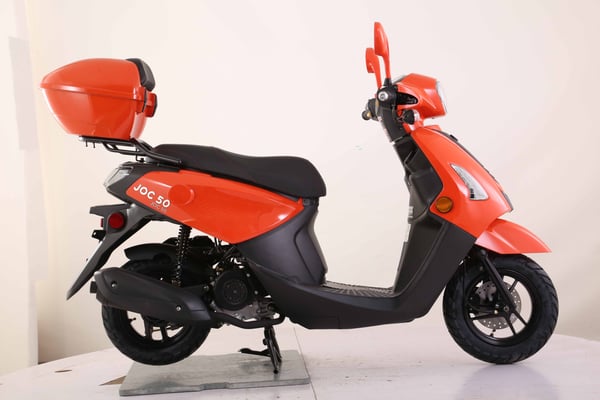

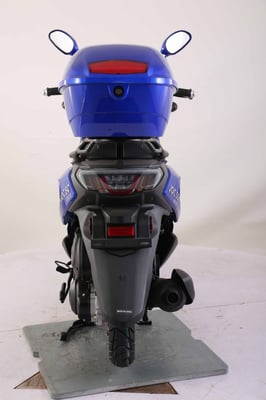

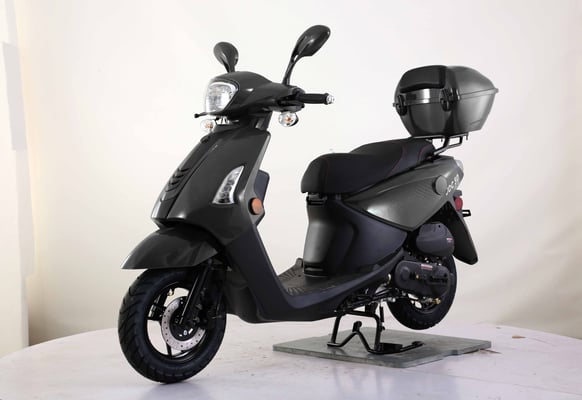

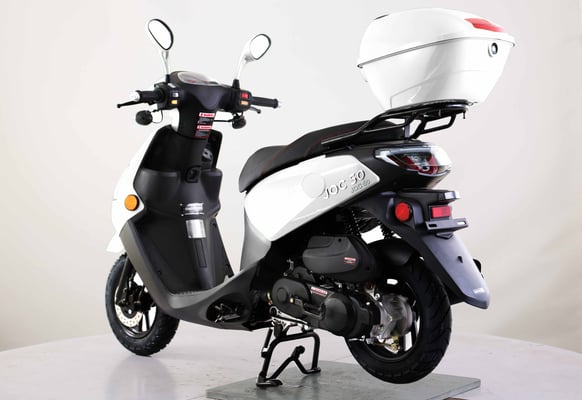

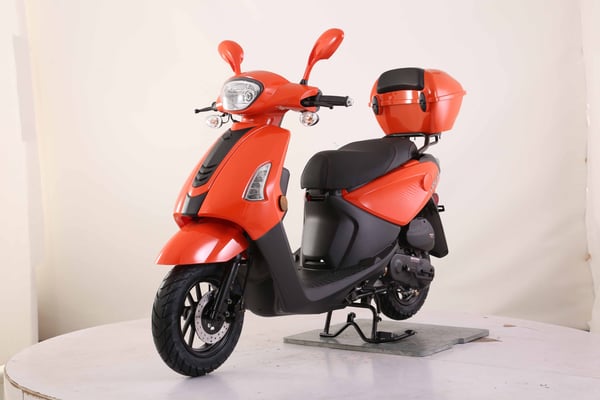

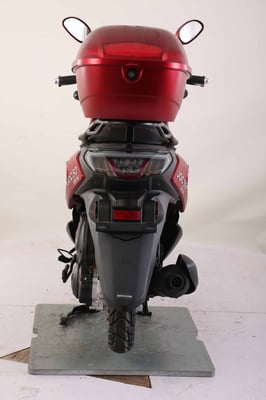

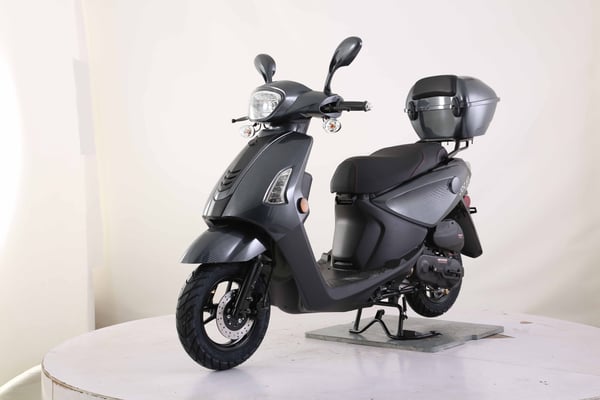

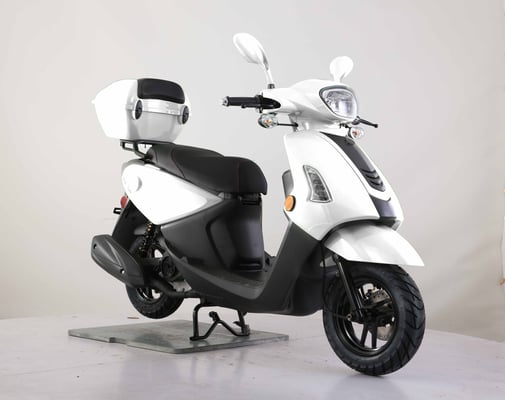

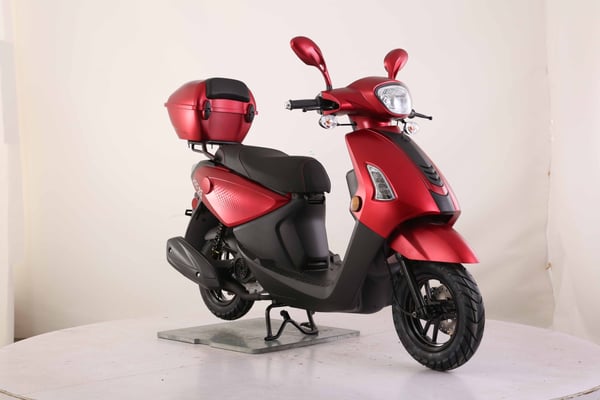

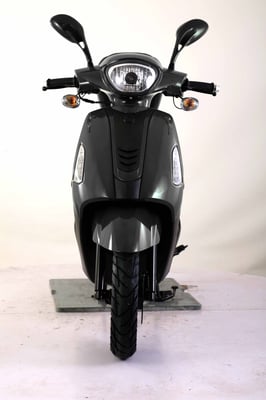

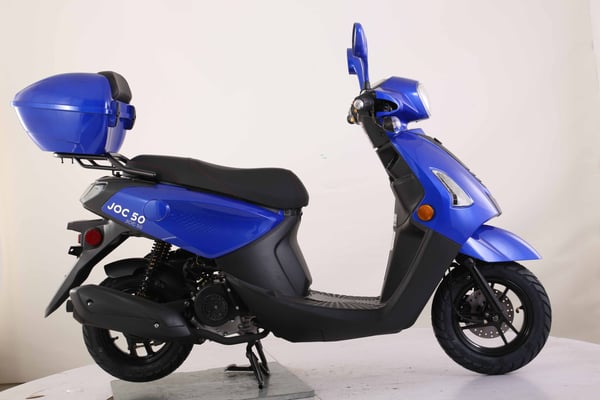

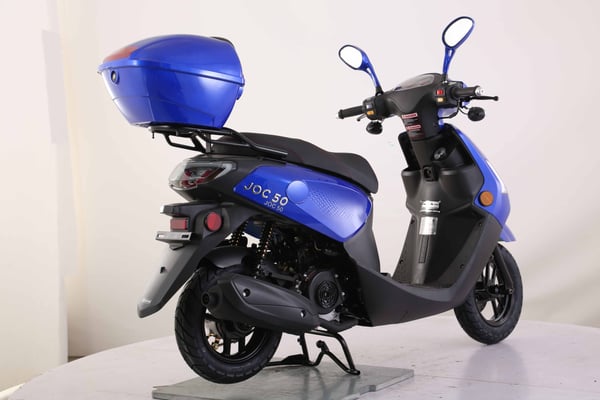

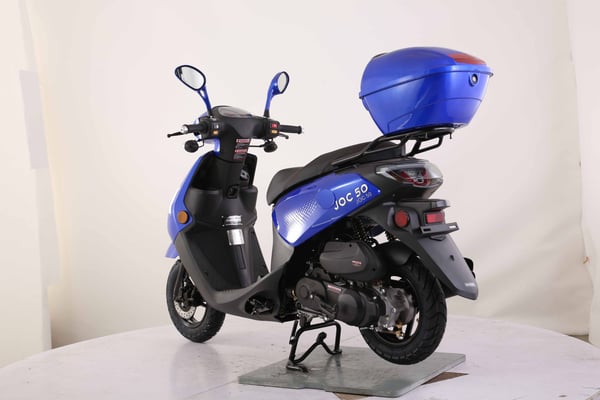

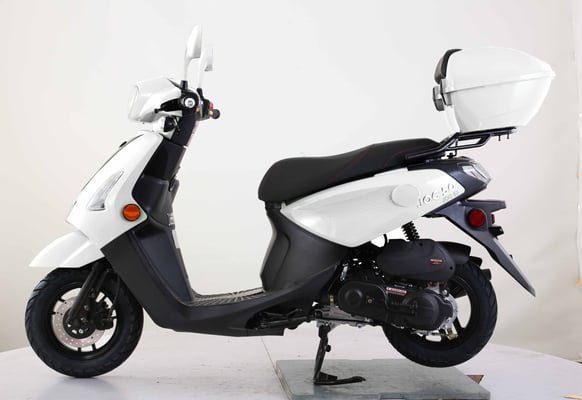

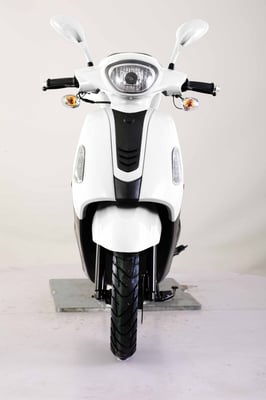

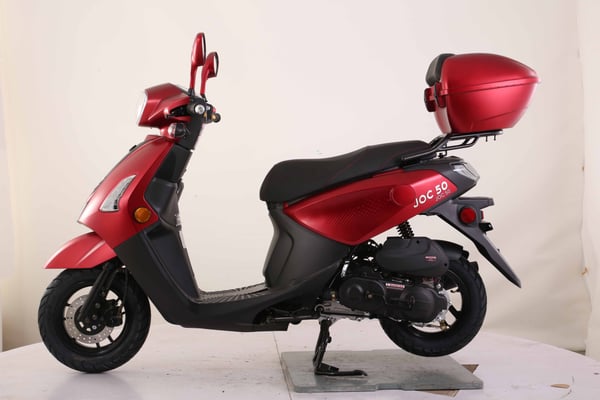

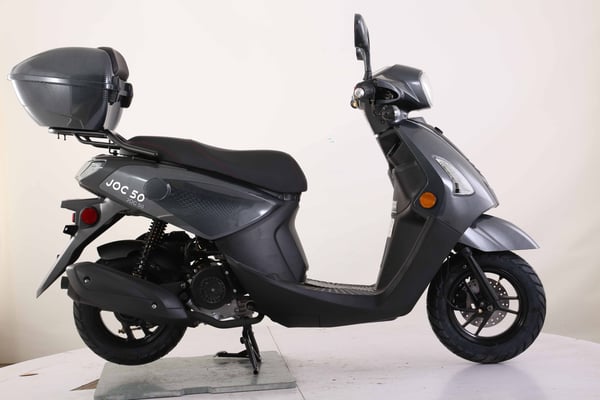

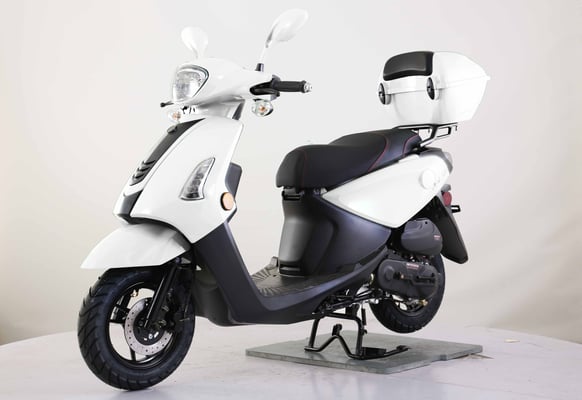

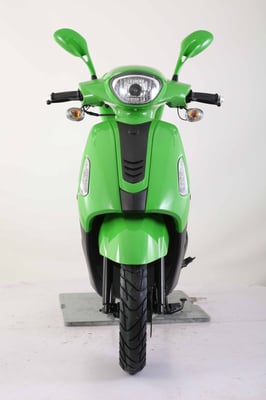

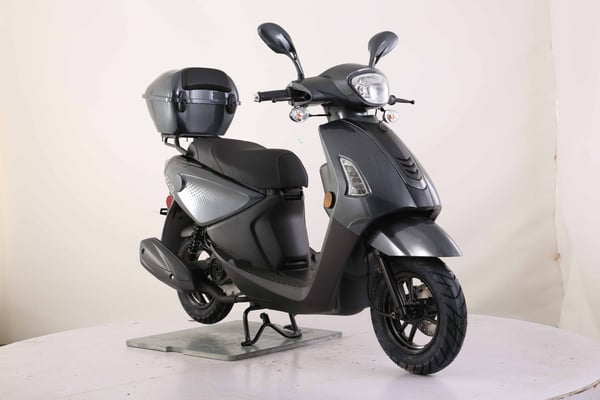

JOC 50cc





SPECIFICATIONS



Engine type Single cylinder, 4 stroke, air-cooled
Engine displacement (cc) 49cc
Compression ratio: 10.5:1
Cylinder Diameter: 39mm
Piston stroke: 41.5mm
Max power kw/(r/min) 2.4kw/8000r/min
Max torque N.m/(r/min) 2.8Nm/6500r/min
Rpm: 1700
Transmission: CVT
Ignition method: Carburetor
Tyres size 90/90-10
Wheel  10inch aliminium rims
Battery  LIYANG GEL 7A
Front brake Disk
Rear brake Drum
Transmission CVT
Dimensions (LxWxH) mm  1790*670*1075
Wheel base mm  1250
Fuel tank capacity L 4L
Suspension/Front: Telescopic
Suspension/Rear: Spring hydraulic
USB charger YES
Rear box YES
