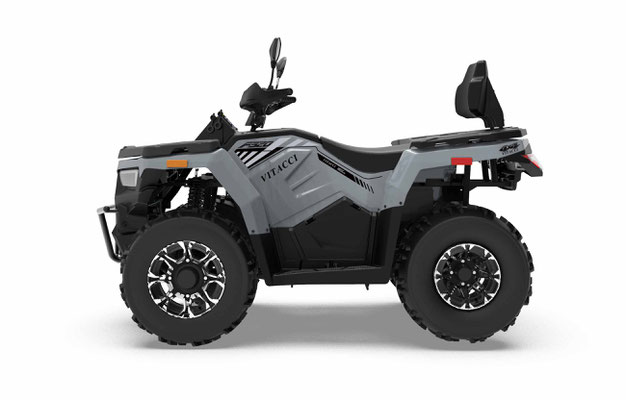

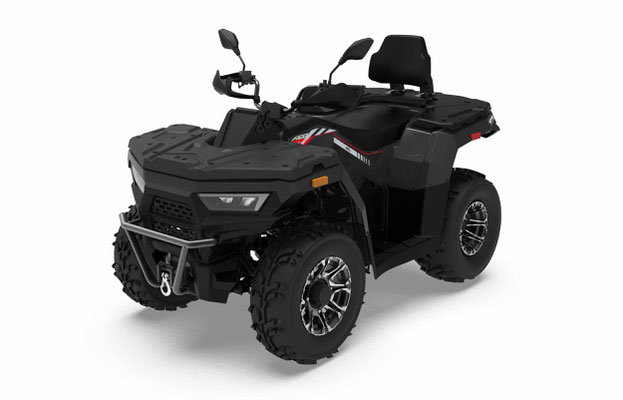

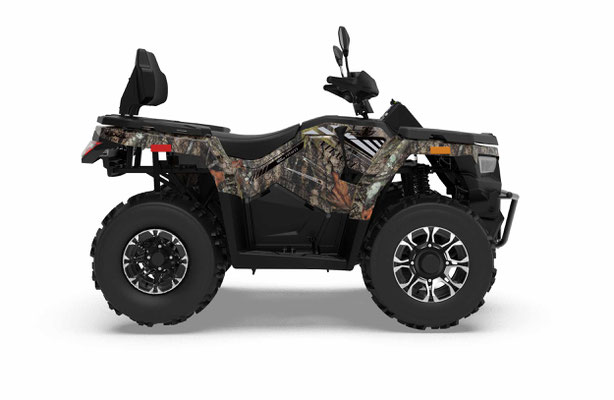

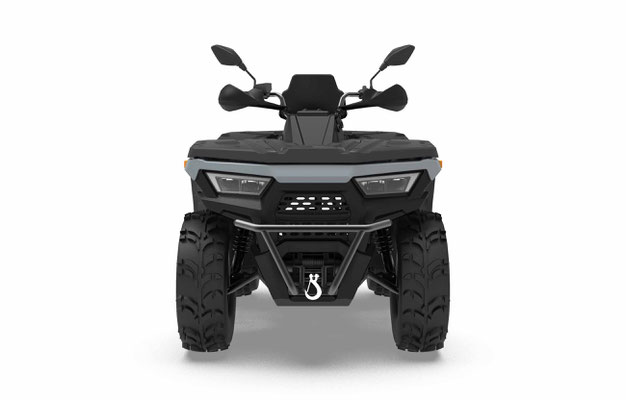

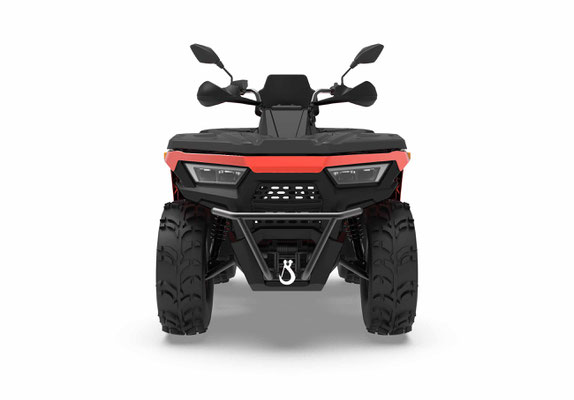

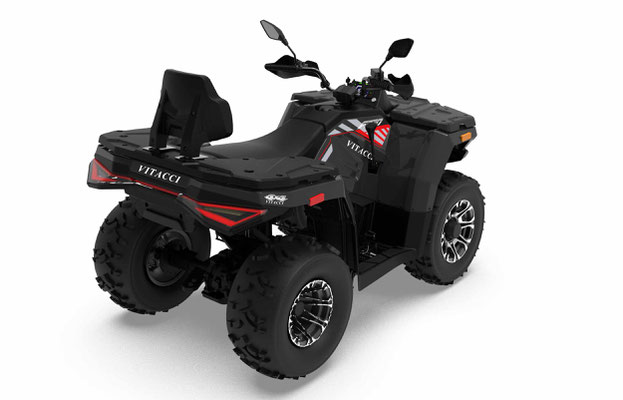

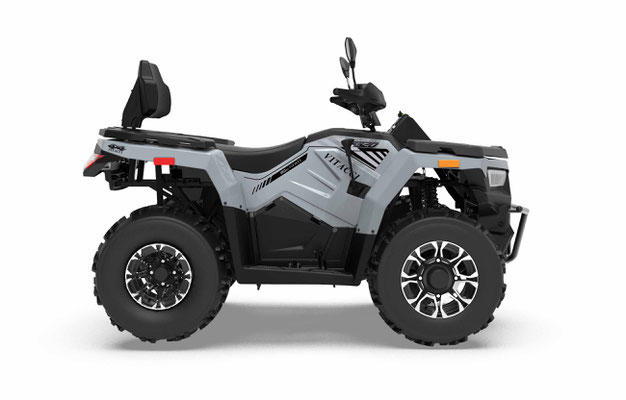

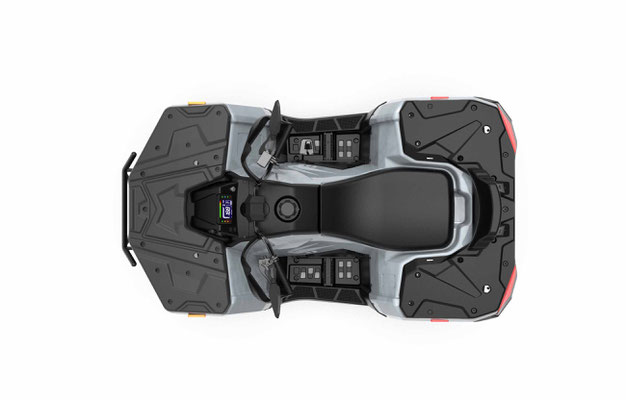

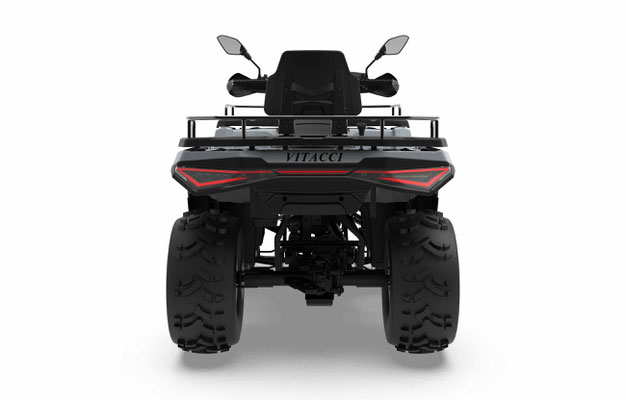

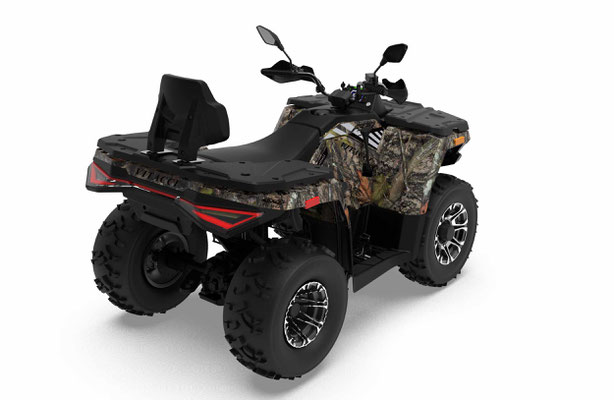

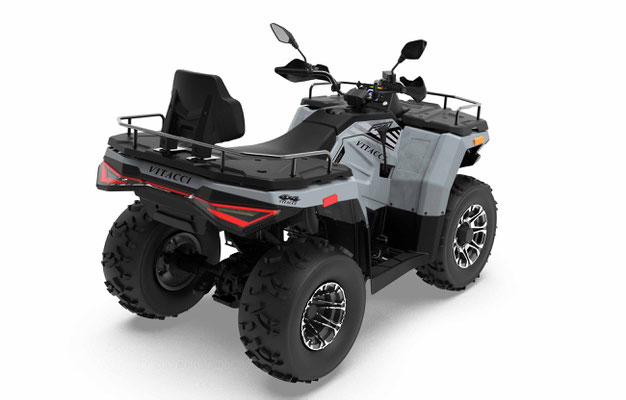

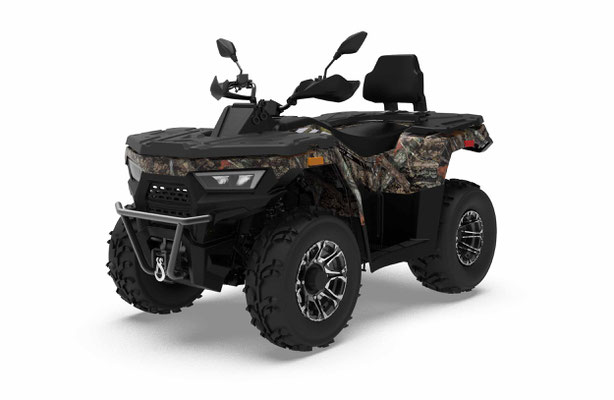

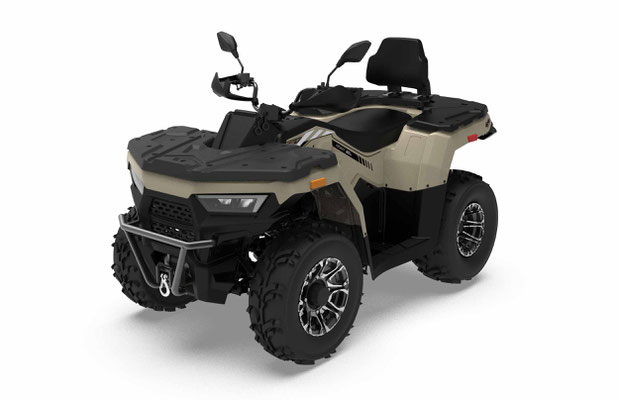

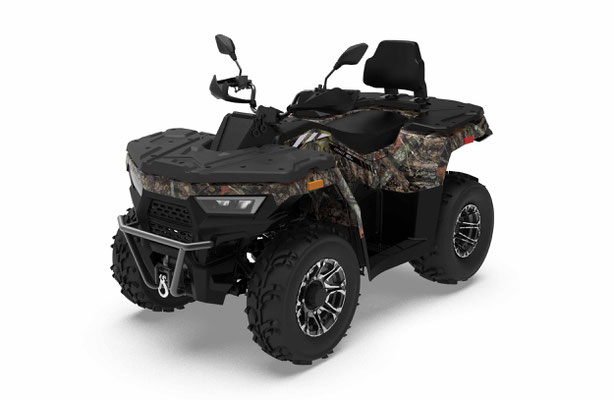

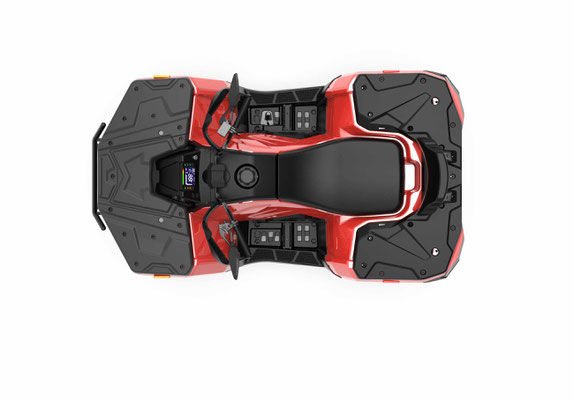

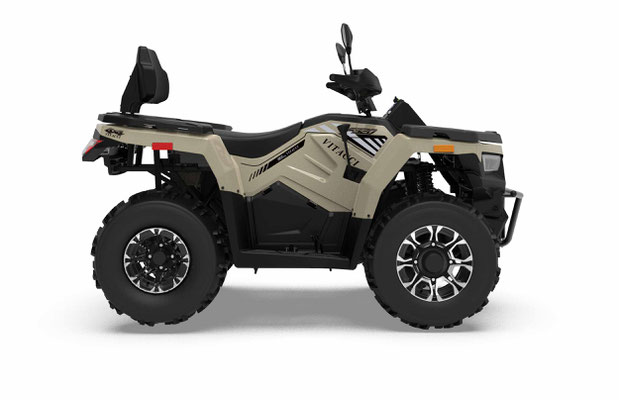

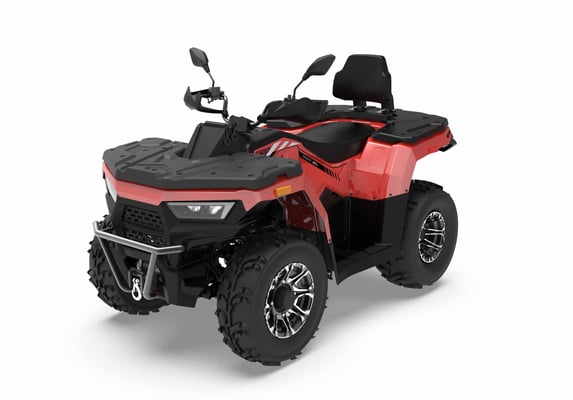

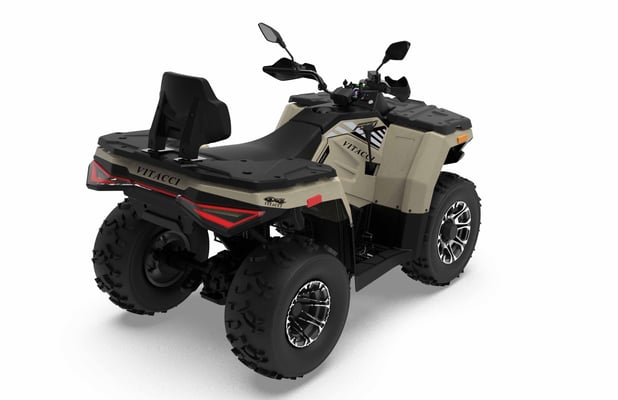

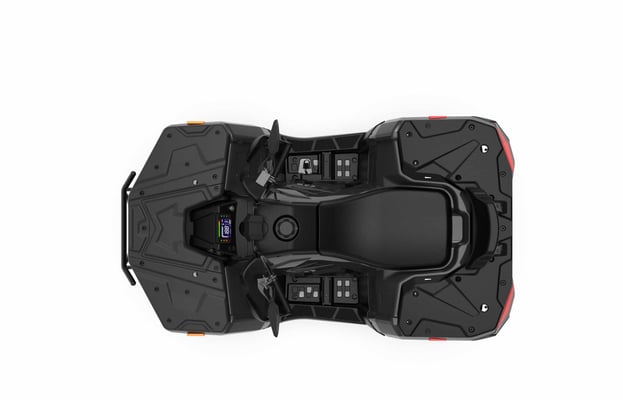

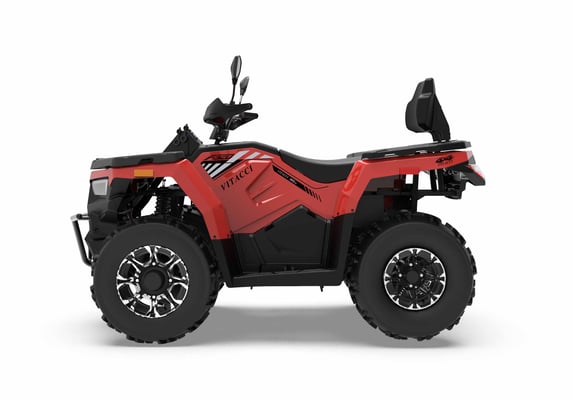

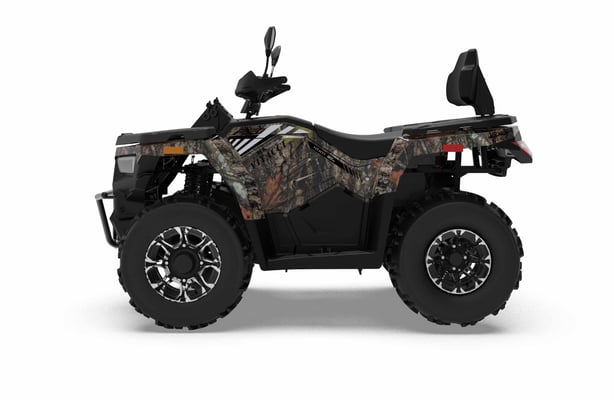

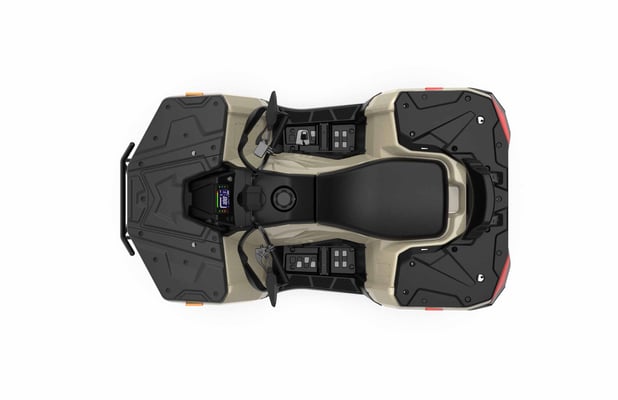

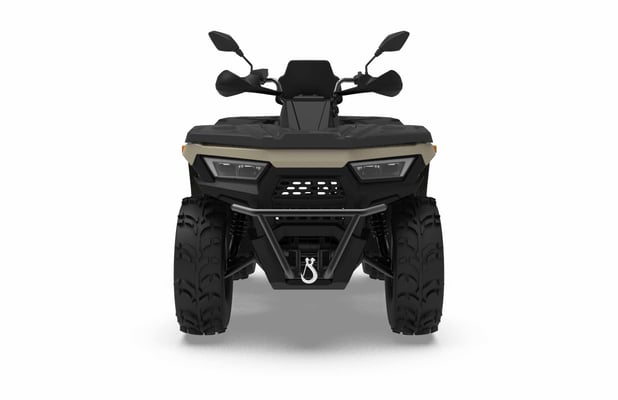

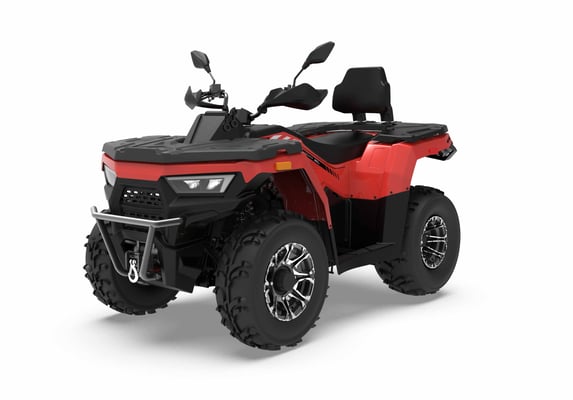

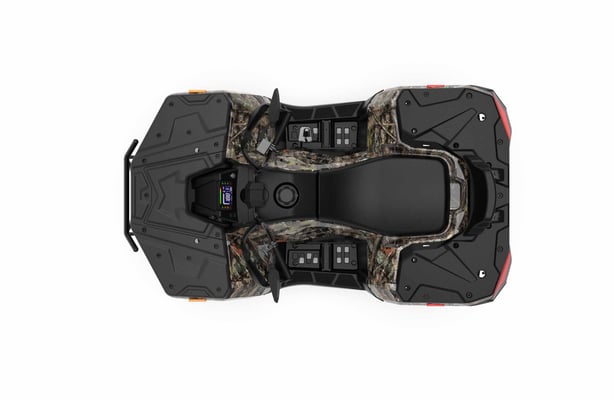

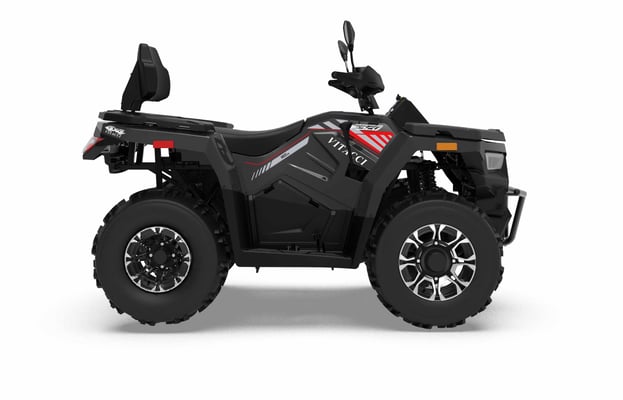

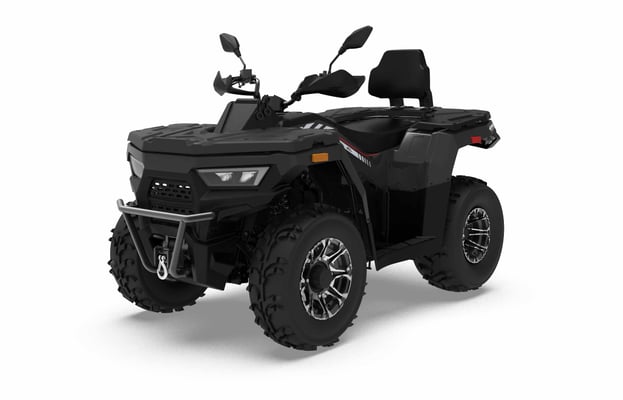

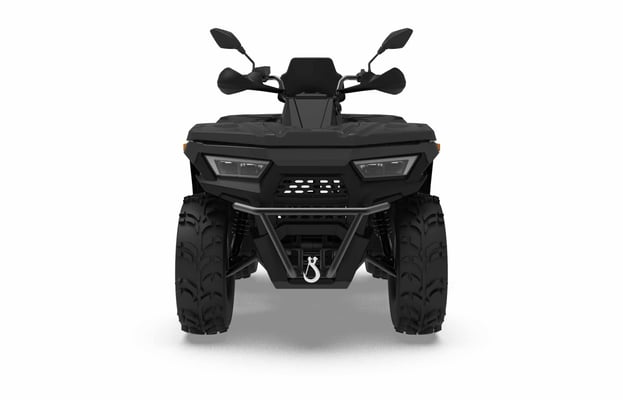

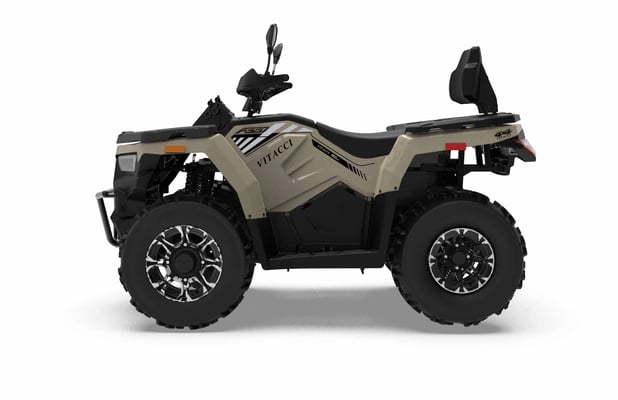

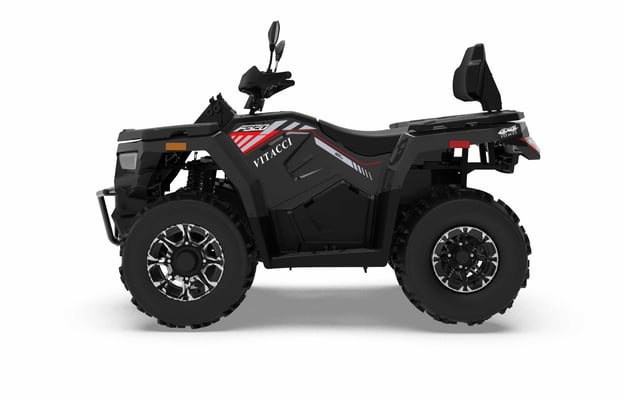

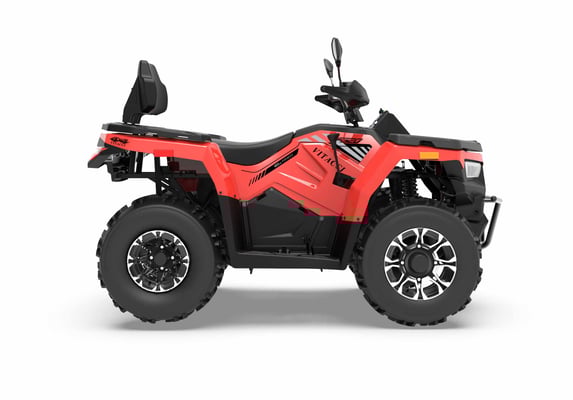

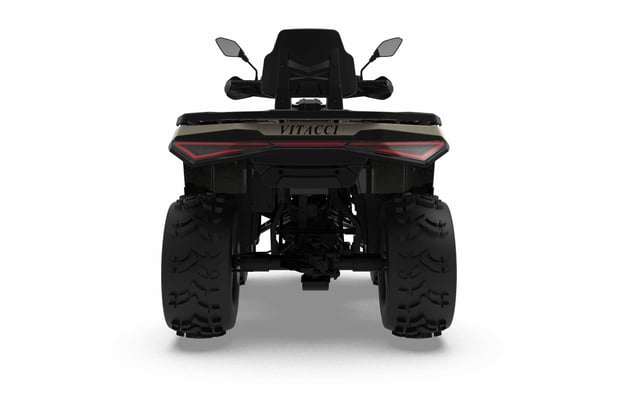

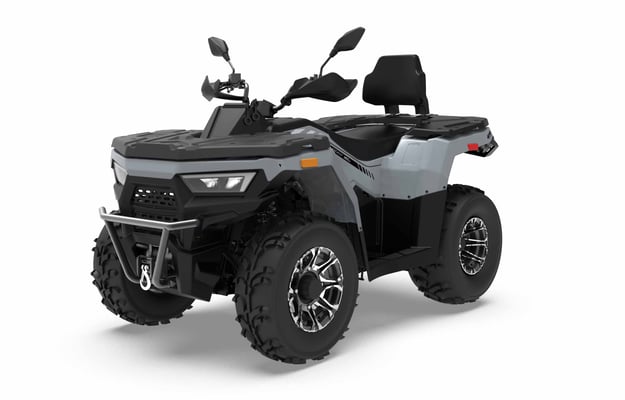

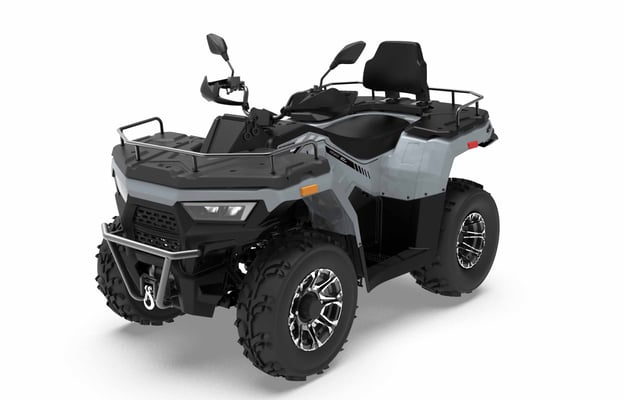

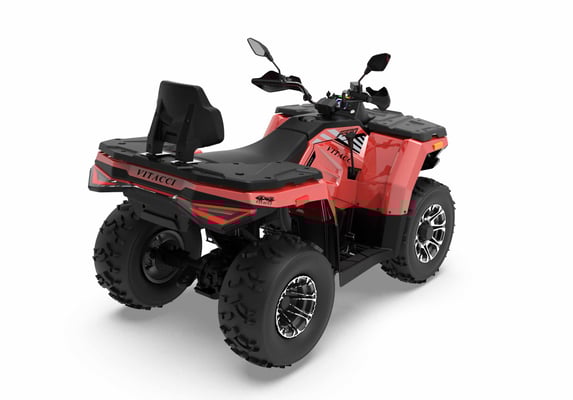

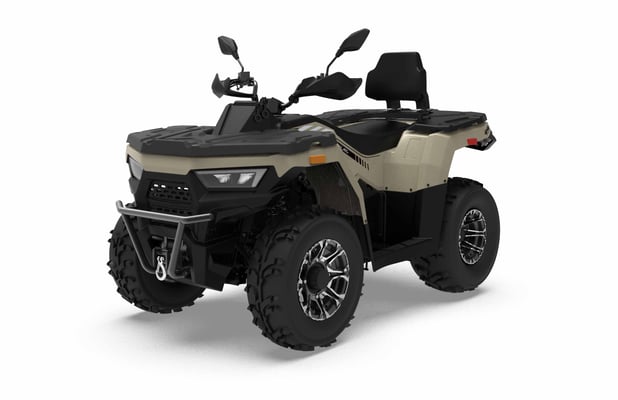

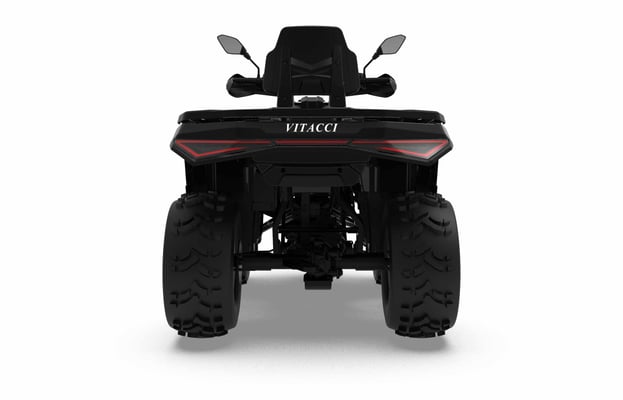

MONSTOR F320



Vehicle specification



Model F320
Size: L×W×H 2120×1140×1270mm
Wheelbase 1215 mm
Ground clearance 183 mm
Dry weight 295kg
Fuel Tank Capacity 14 L
Max speed >60 km/h
Drive System Type 2WD/4WD

Specification of tire Front: AT24×8-12
Rear: AT24×11-10
Brake system model Front: Hydraulic Disc
Rear: Hydraulic Disc
Suspension type Front:McPherson independent suspension
Rear:Swing arm

Engine model LH173MN
Engine type Single cylinder,4 stroke, water cooled
Engine displacement 275 cc
Bore and Stroke 72.5×66.8 mm
Max power 16/6500~7000 (kw/r/min)
Horse power 21.4 hp
Max torque 23/5500  (Nm/r/min)
Compression Ratio 9.5:1
Fuel system EFI
Start type Electric starting
Transmission H-L-N-R
40'HQ QTY 30 Units
