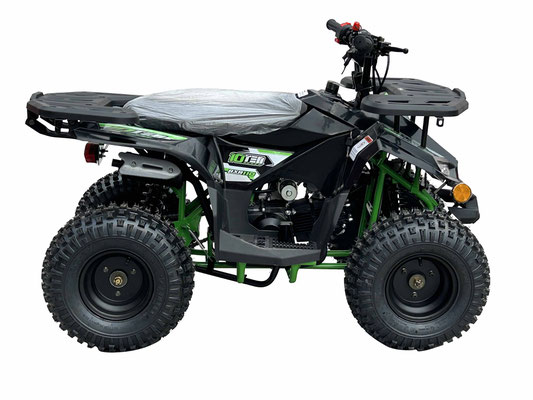

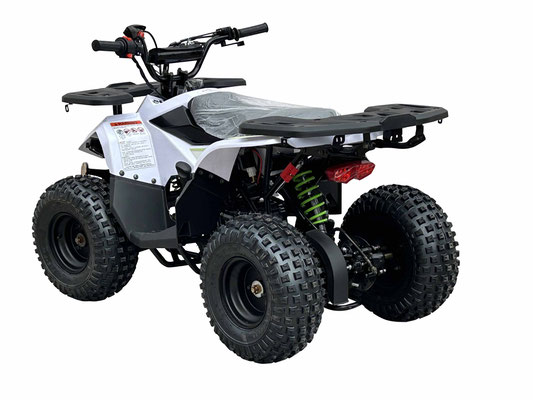

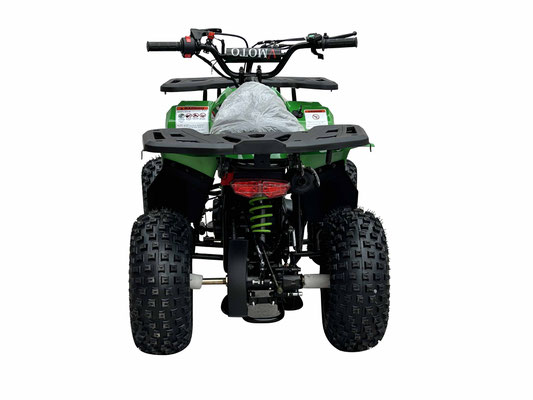

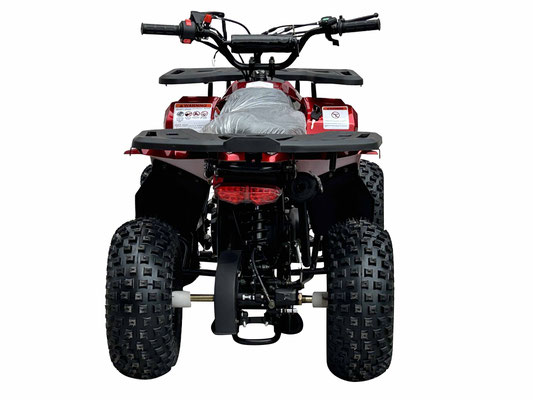

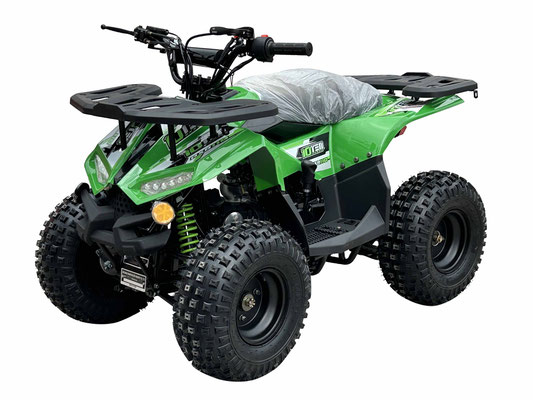

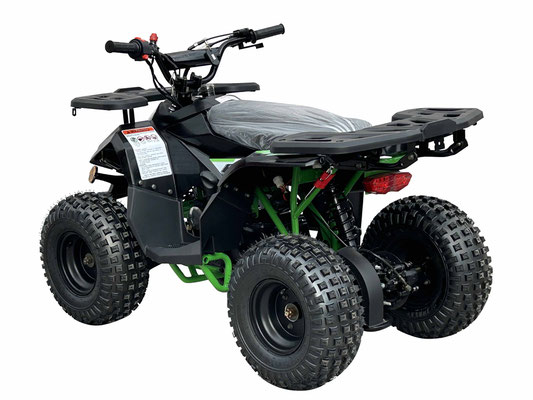

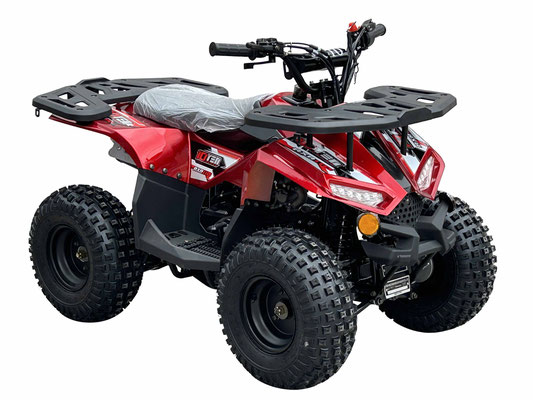

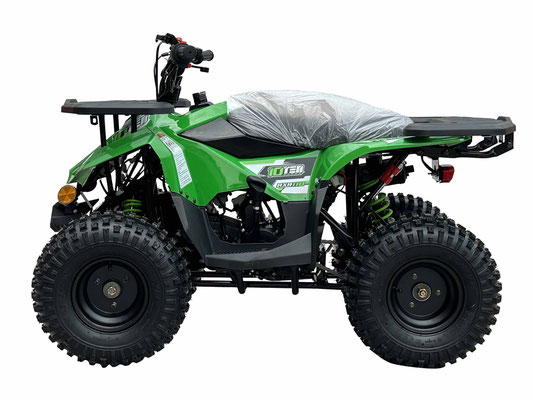

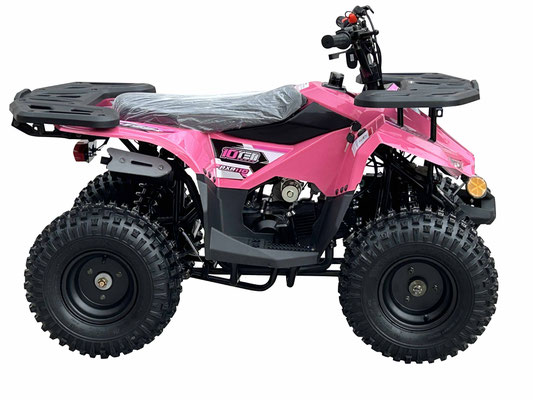

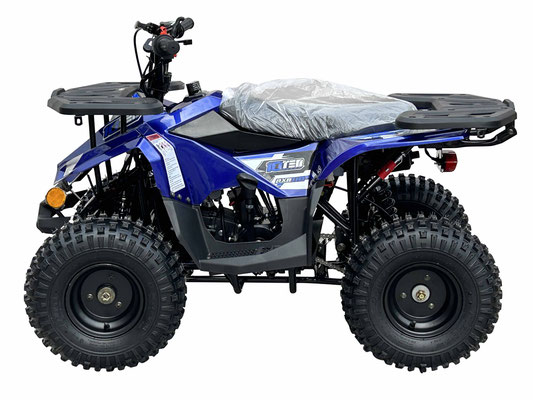

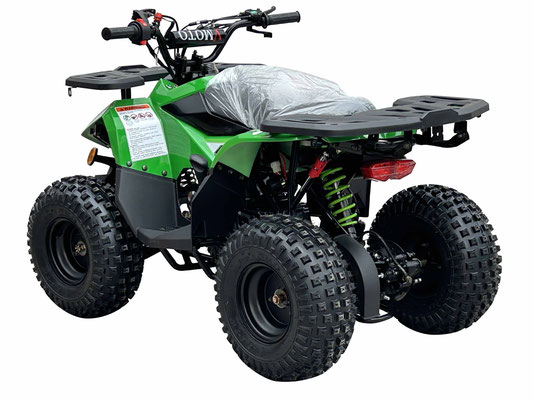

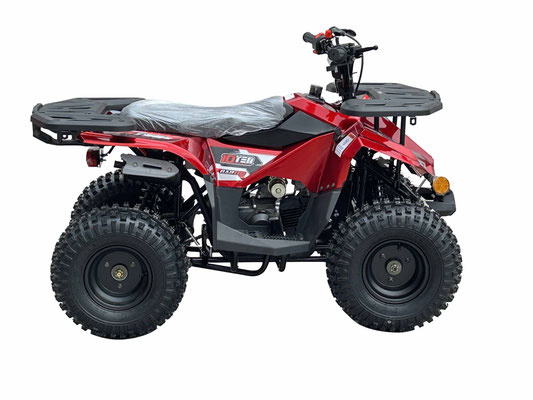

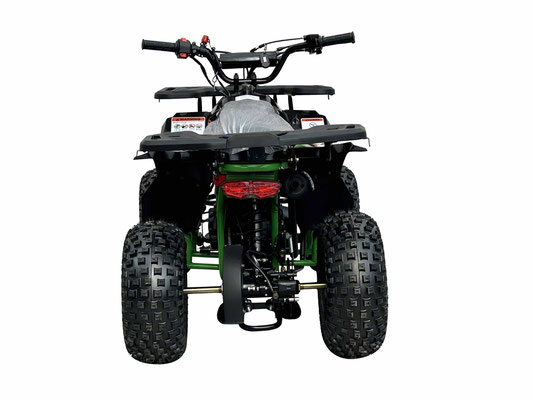

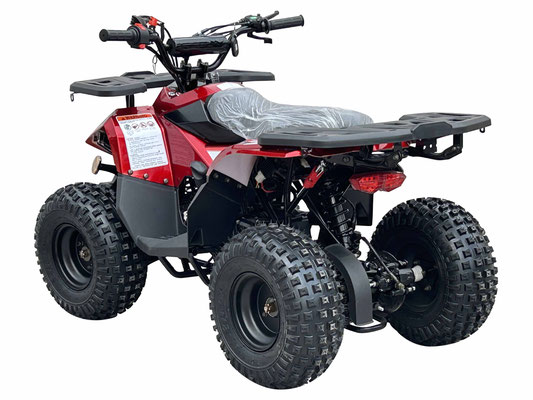

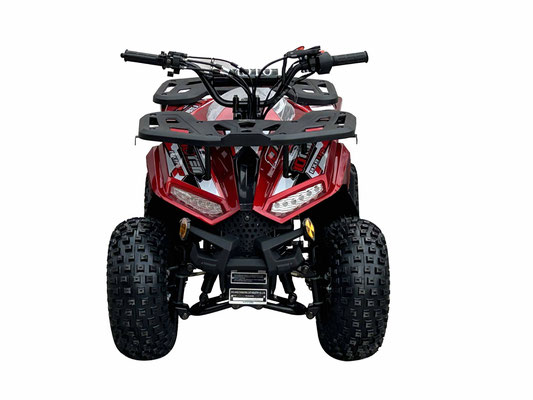

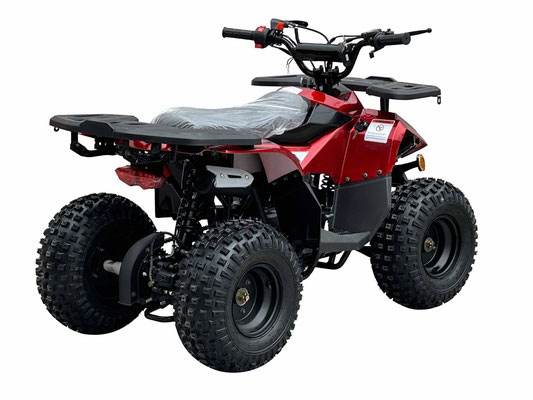

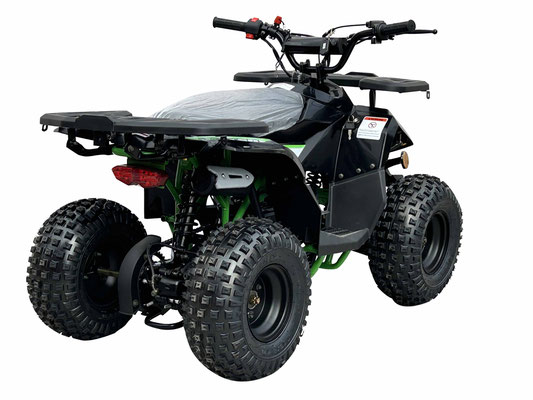

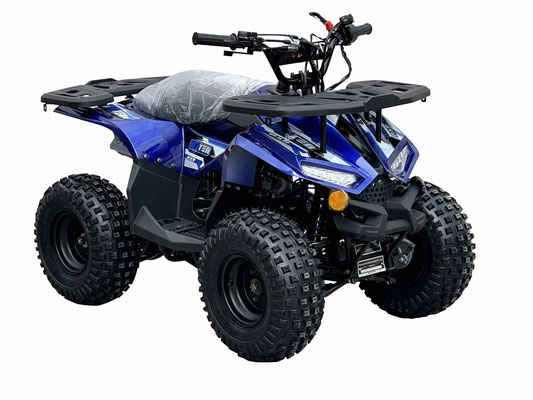

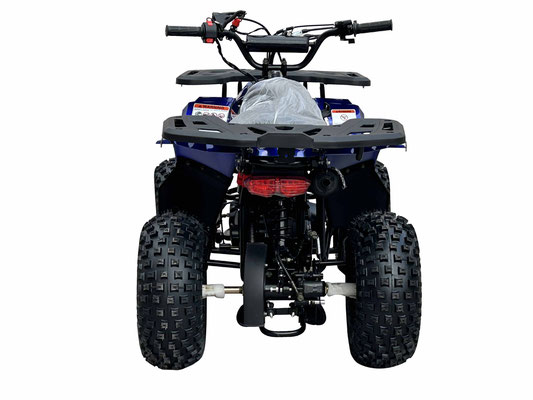

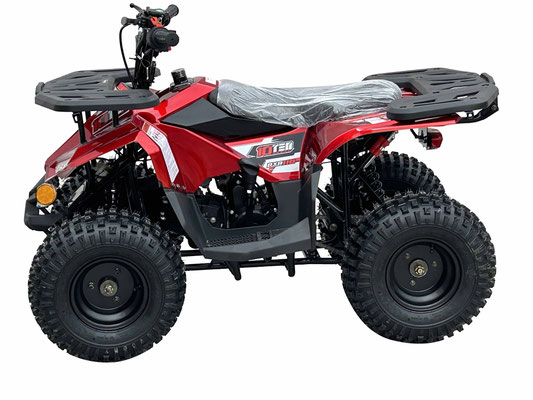

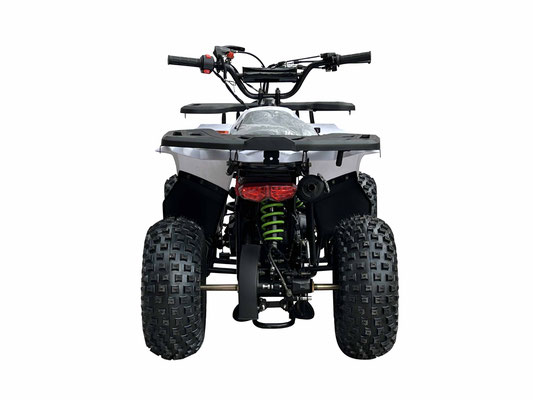

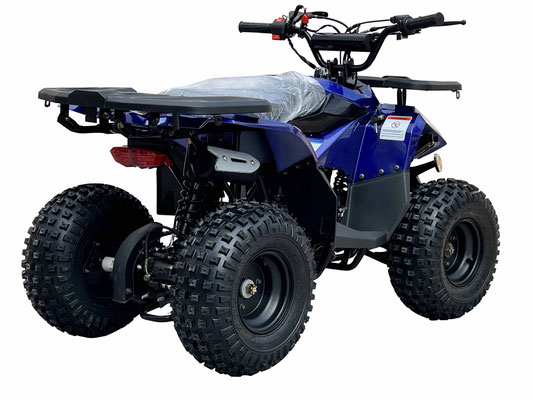

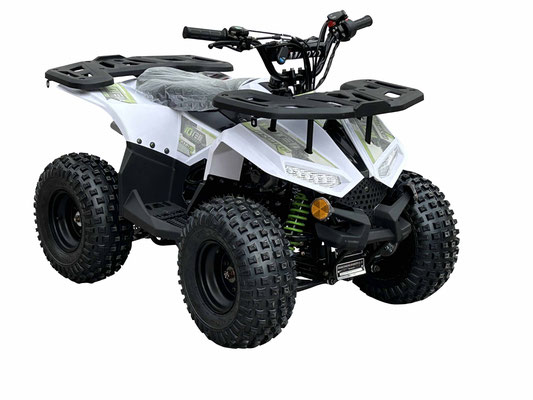

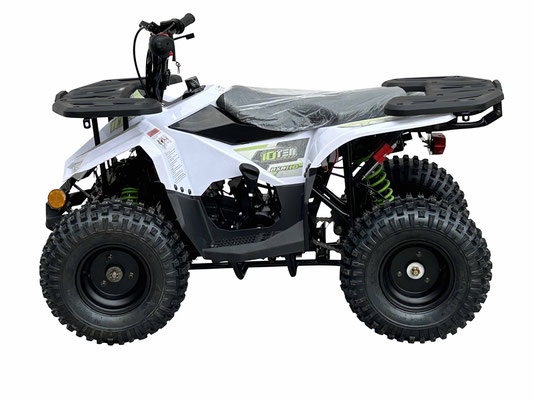

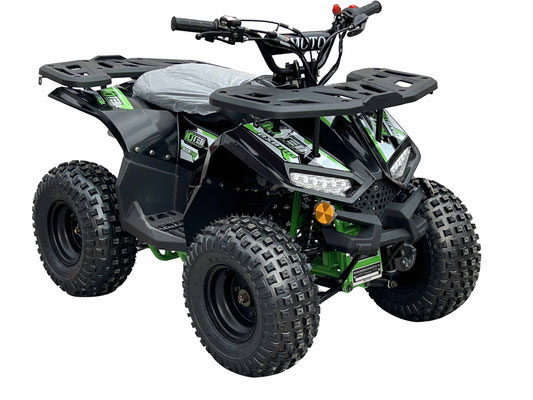

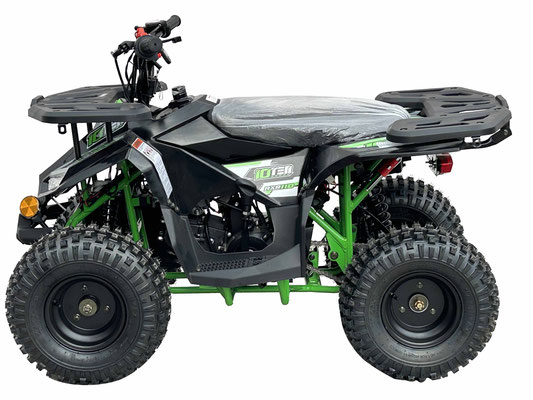

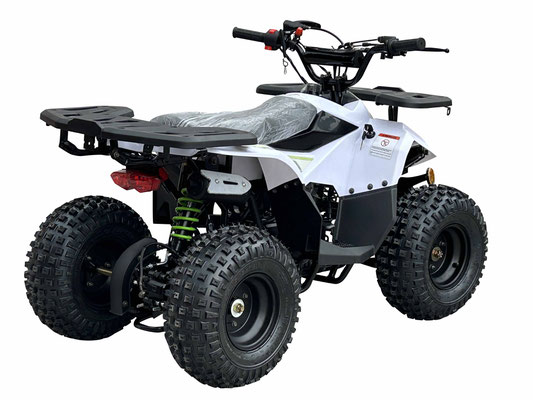

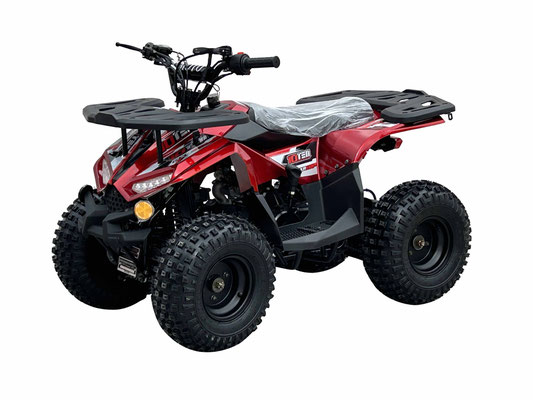

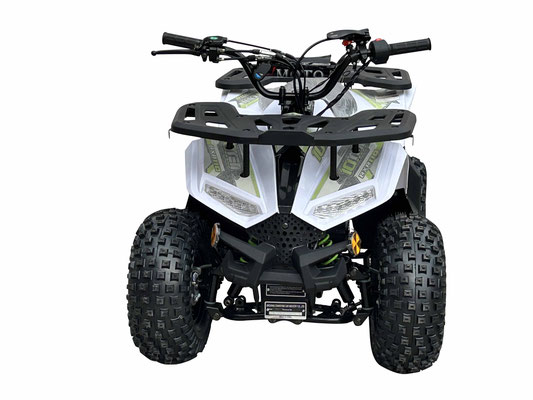

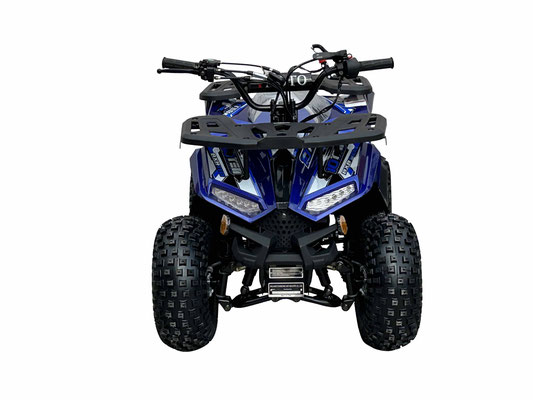

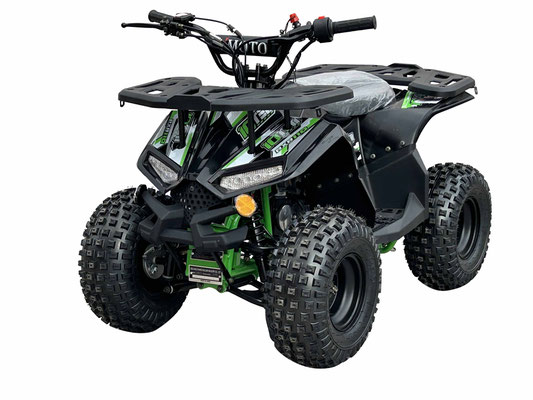

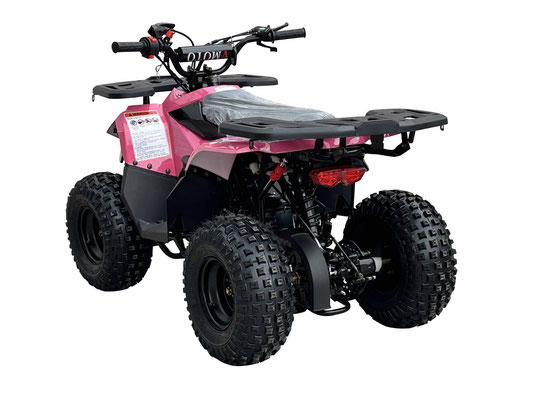

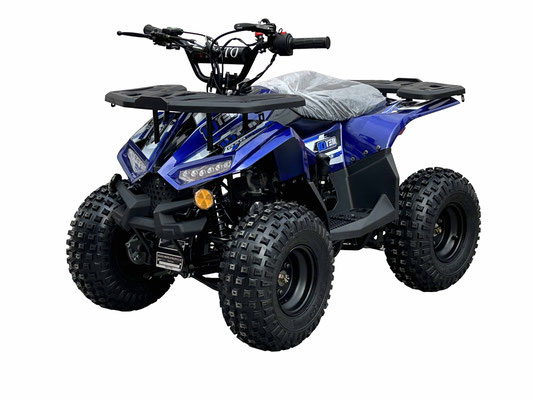

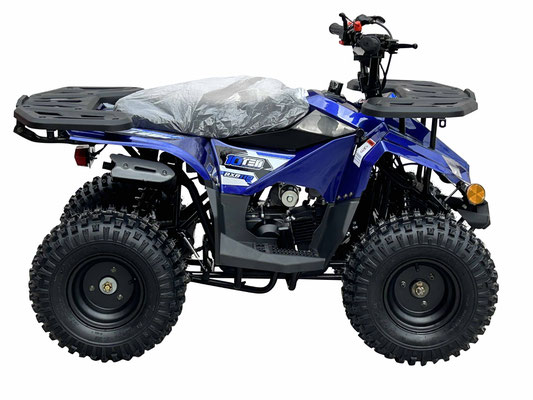

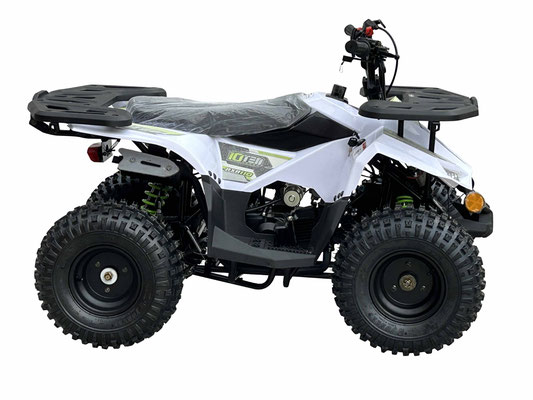

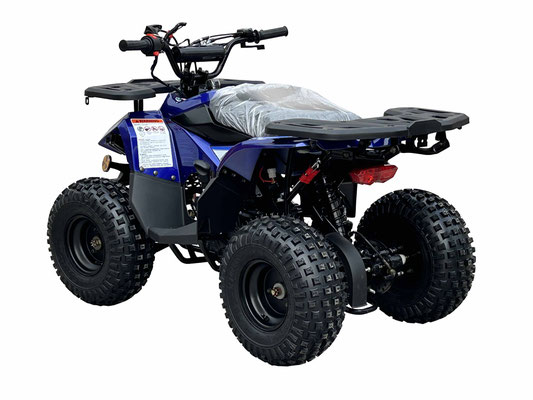

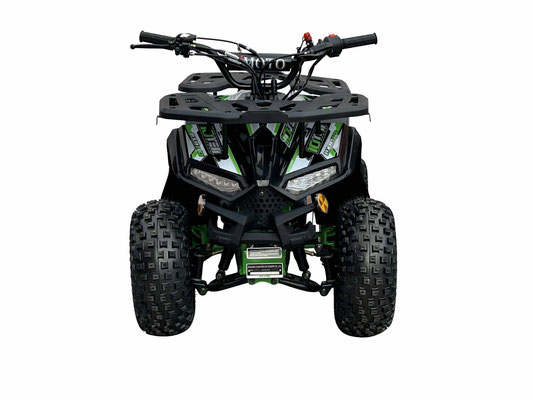

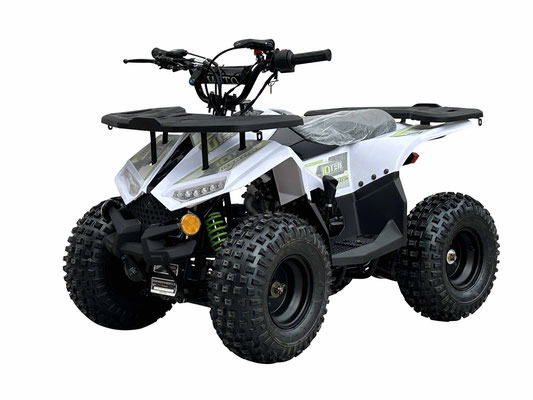

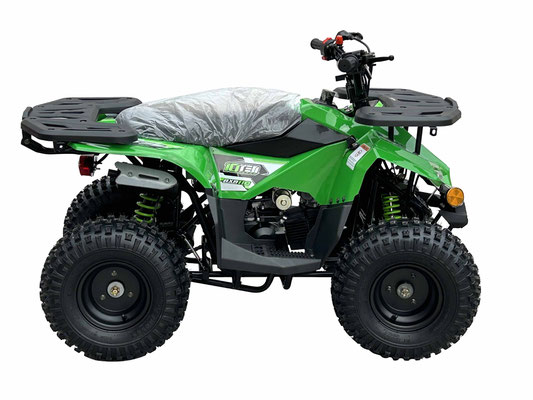

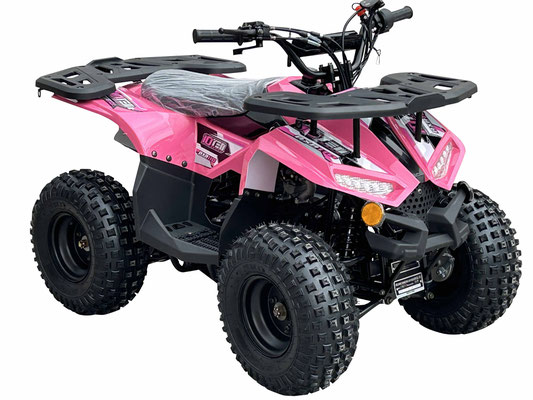

RXR 110cc



Model CY110ATV-9
Engine Type 107CC, 4-stroke
Cooling mode air cooled
Cylinders Single cylinder
Bore×Stroke φ52.4×49.5mm
Max Torque 6.9Nm/(6500r±500r)/min
Max Power 4.8KW/(8000r±500r)/min
Lgnition CDI
Starting System Electric
Battery 12V, 5Ah
Clutch Automatic with reverse
Transimission Chain, rear wheel drive
Brakes Front/Rear Drum/hydraulic disc
Tires Front/Rear 16X8-7/16X8-7
Fuel Capacity 2.2L plastic tank
Weight G.W./N.W.(216kgs/158kgs)
Wheelbase 960mm
Dimensions 1340X930X900mm
Height to Seat 600mm
Loading Quantity 135pcs/40´HQ
  EPA with carb
