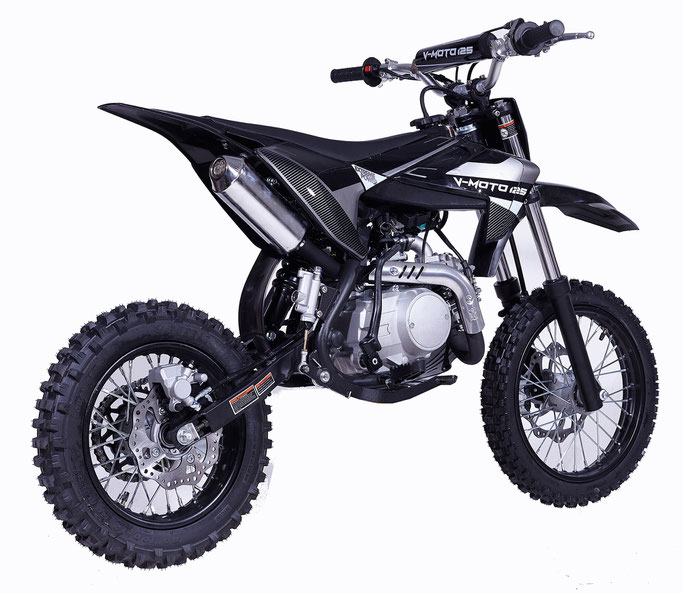

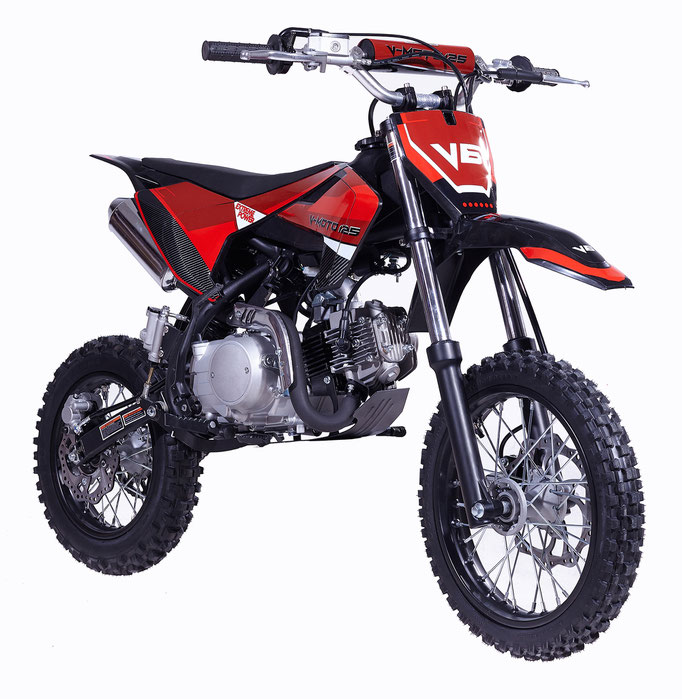

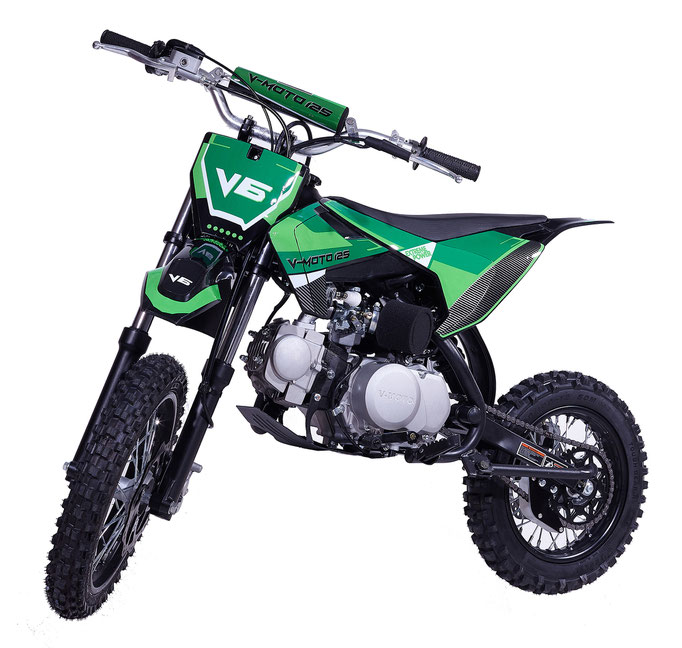

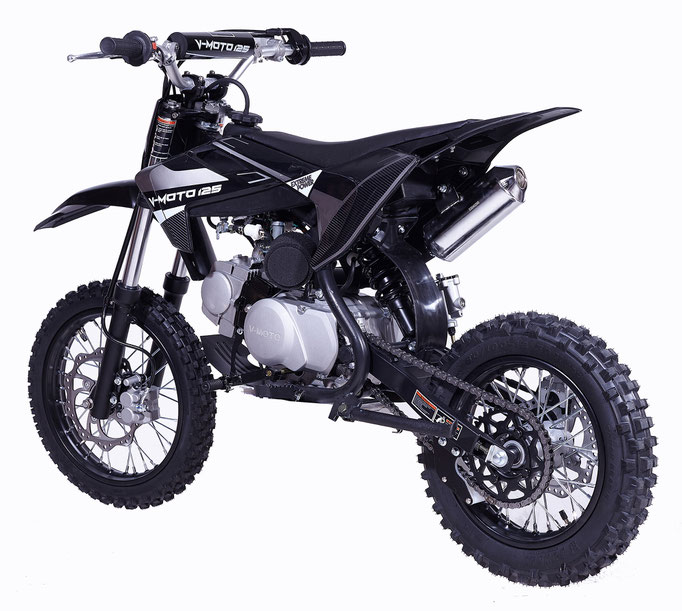

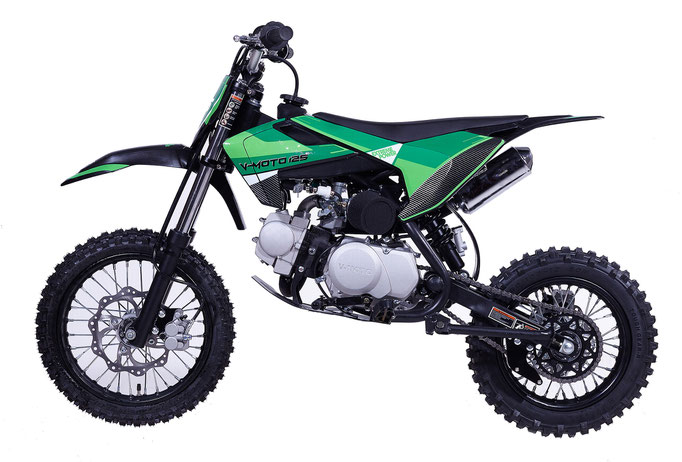

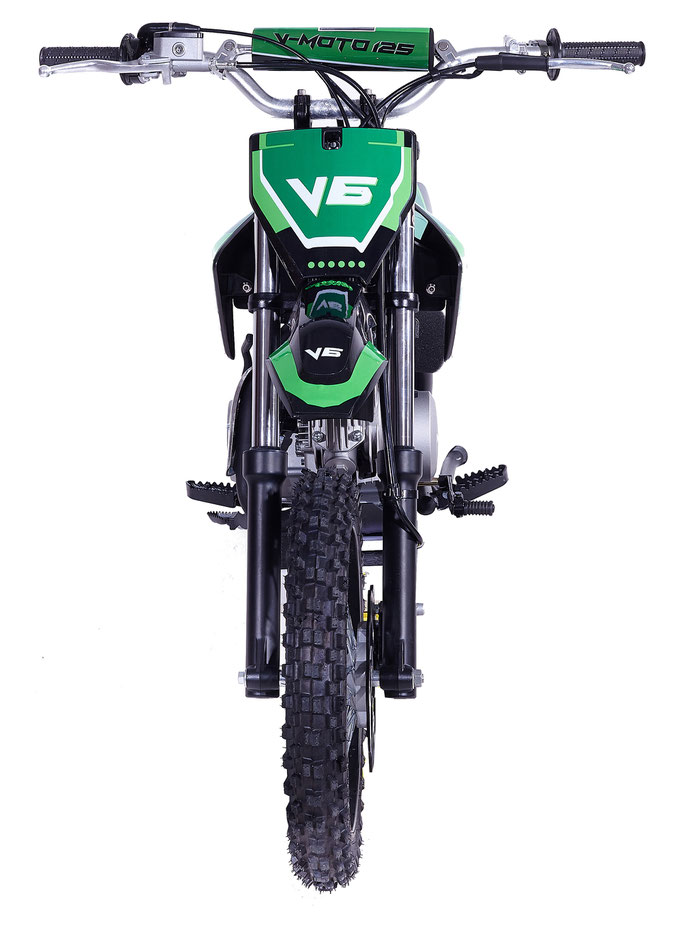

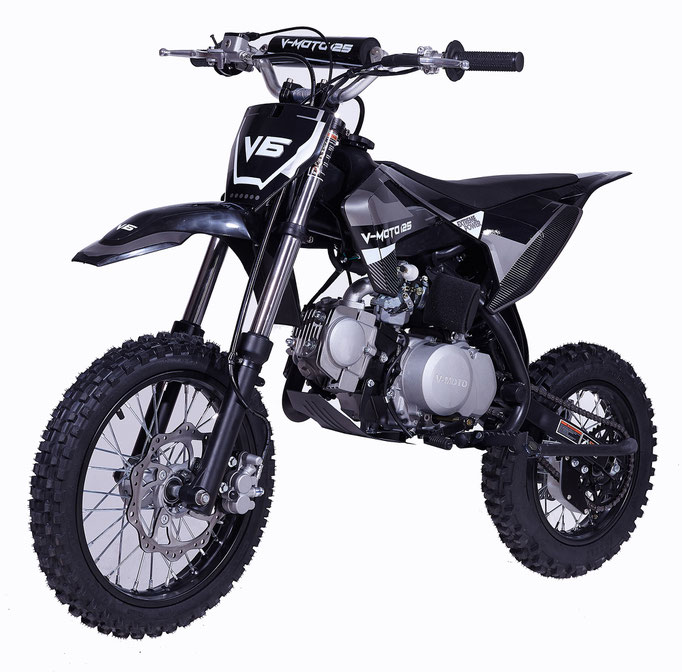

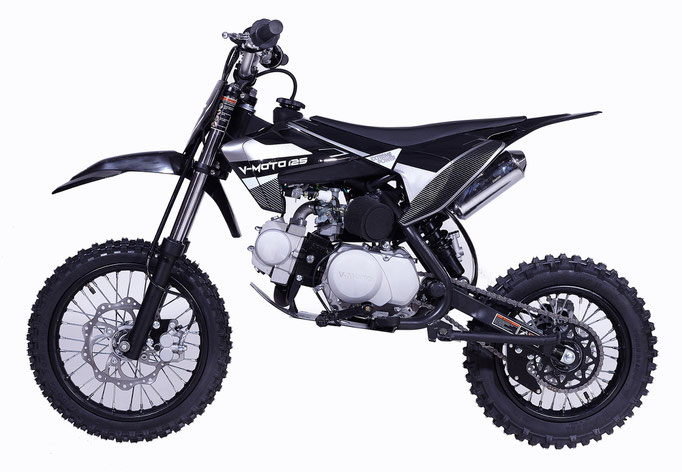

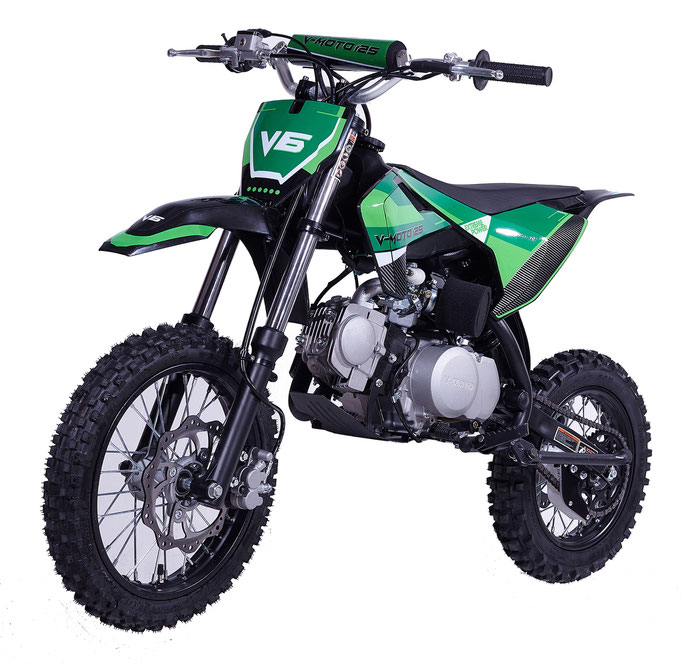

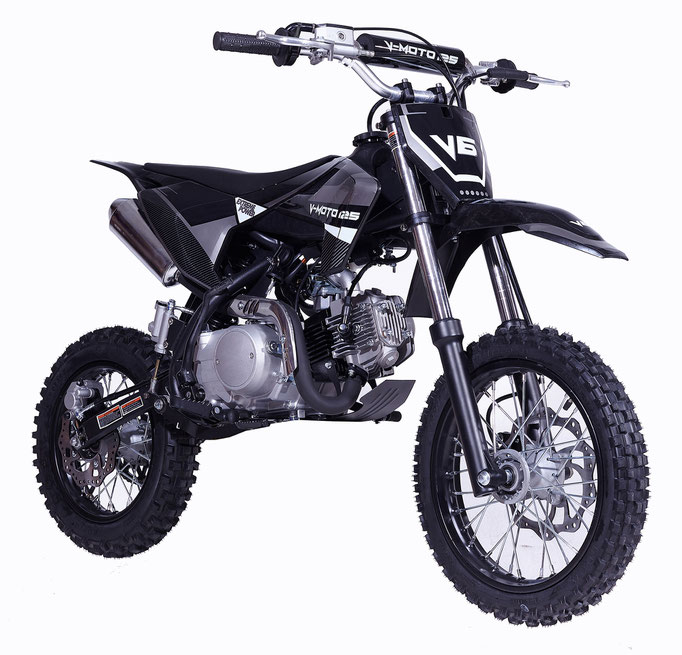

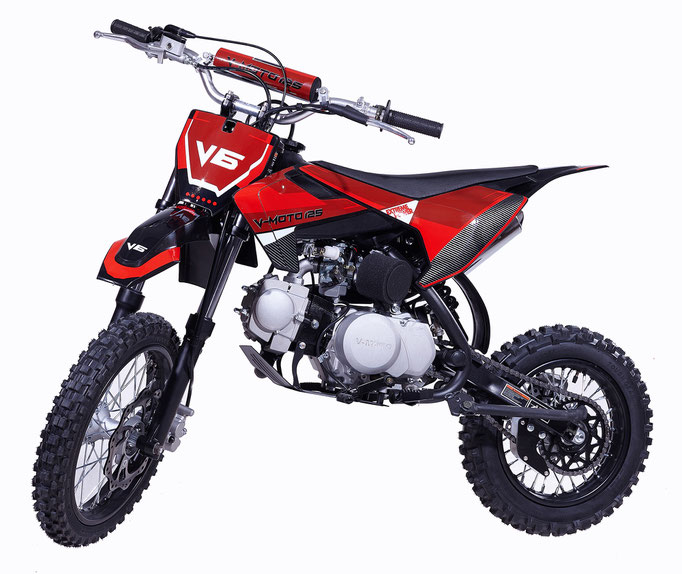

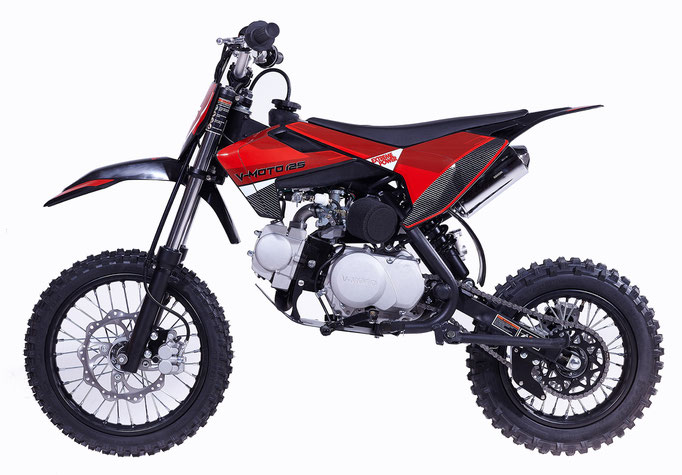

V6  125CC


Engine System
Engine Type ZM125cc, Single Cylinder, 4-Stroke, Air Cooled
 Displacement 124 ml
Max Power 6.2(1±10%)/7000(1±5%) kw/r/min
 Max Torque 9.0(1±10%)/5000(1±5%) N.m/r/min
Compression Ratio 9.6:1
Shift Type  4 Speed Simi Automatic
 Start Type Kick Start
Carburetor  PZ26 Jingke Carburetor
Drive Train #428,14/41T
Size Data
 L x W x H 64.1" * 29.5" * 41.3"
Wheel Base 42.3"
Tires FT: 60/100-14 - RR: 80/100-12
Seat Height 29.6"
Ground Clearance 13.5
Fuel Capacity 3.5 L
Frame/Suspension/Brake/Wheel system
Frame Cradle Type Steel Tube Frame
Front Fork

Non-Adjustable Inverted 700mm Forks, Travel - 4.3"

Tube - 1.2"

Rear Shock Coil Spring shock - 10.8" , Travel - 1.6"
Swing-Arm Steel - 14.9"
Handle Bar Steel
Wheels Steel 1.6 x 17" / 1.85 x 14" Rims, Cast Hubs
Front Brake Single Piston Caliper, 210mm Disc
 Rear Brake Single Piston Caliper, 190mm Disc
Exhaust Stainless Steel Header Pipe, Haxagon Aluminum Silencer
Packing and Loading
Packing Size 54.5" * 14.7" * 29.7"
N.W/KG 145.5 LBS
G.N/KG 172 LBS
