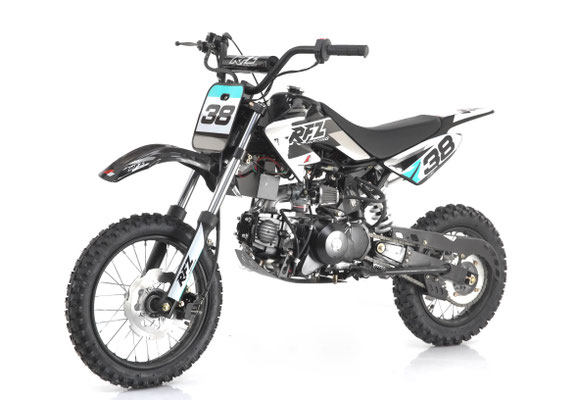

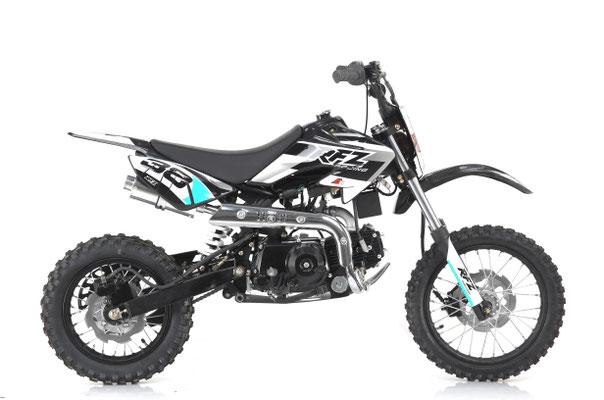

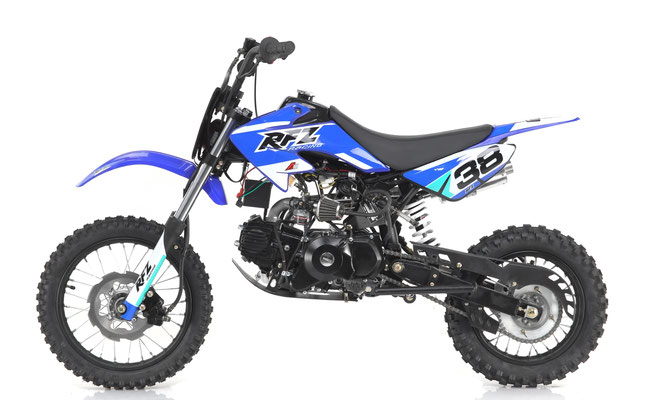

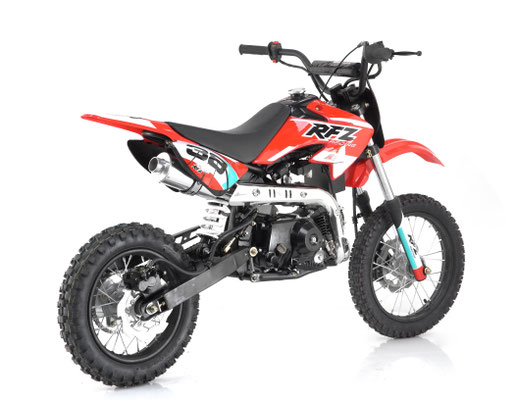

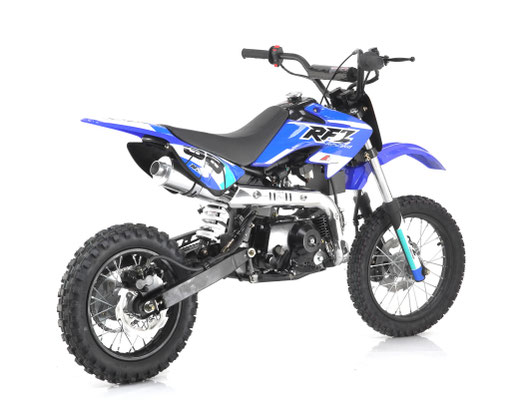

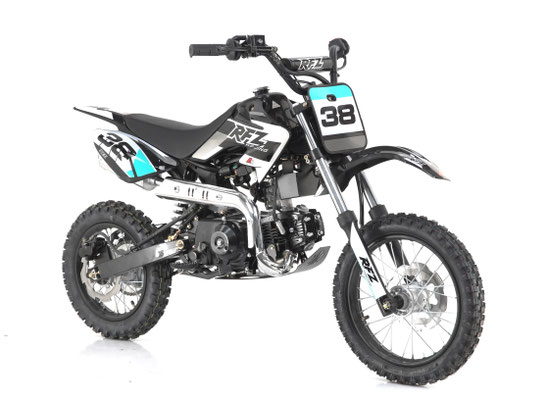

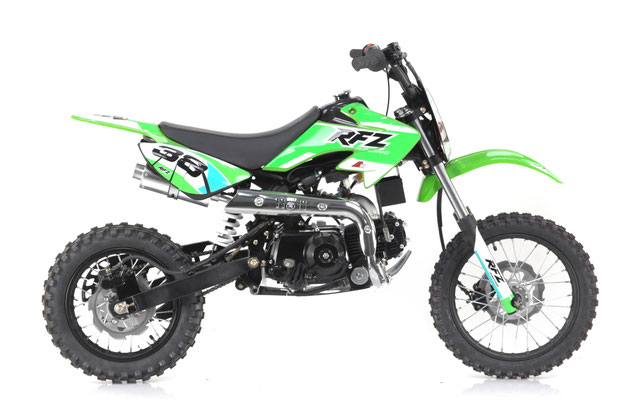

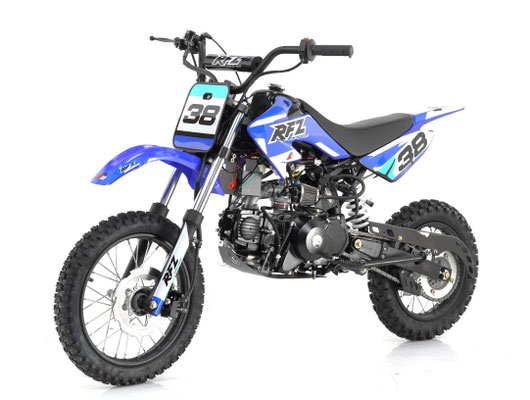

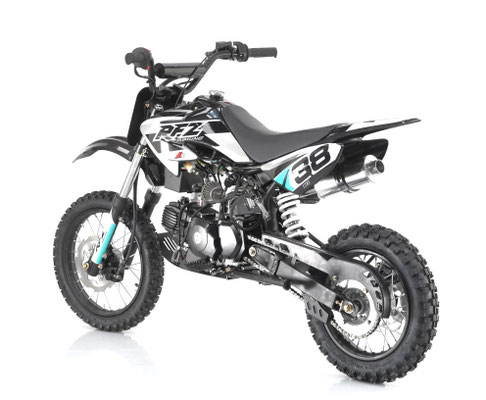

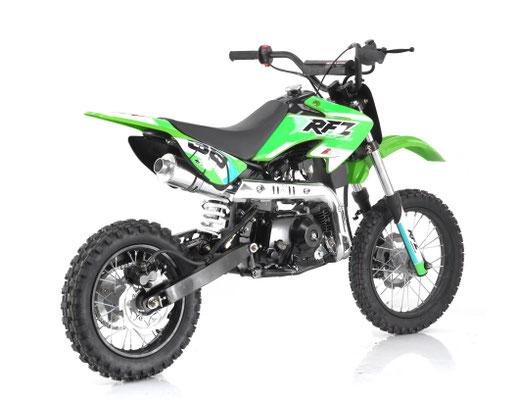

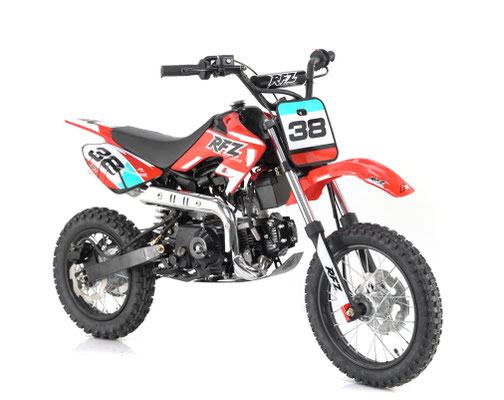

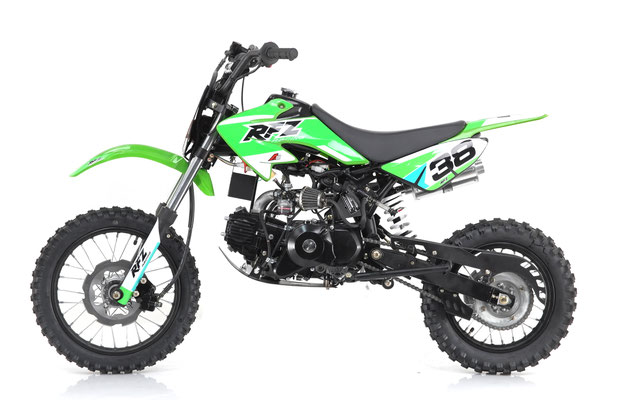

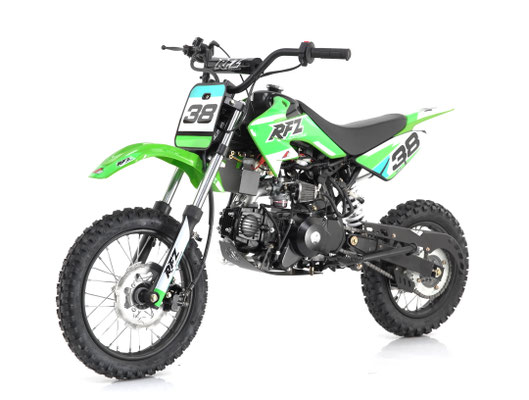

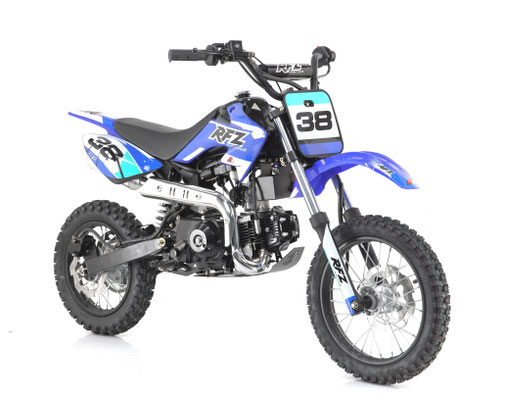

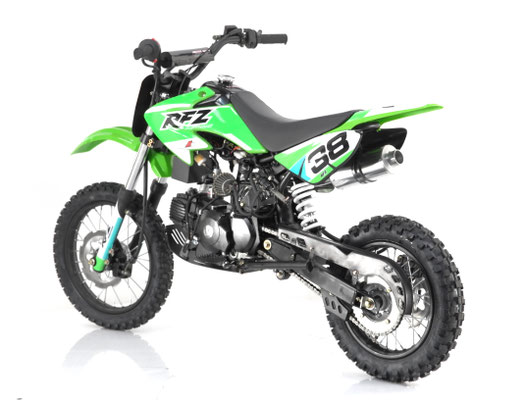

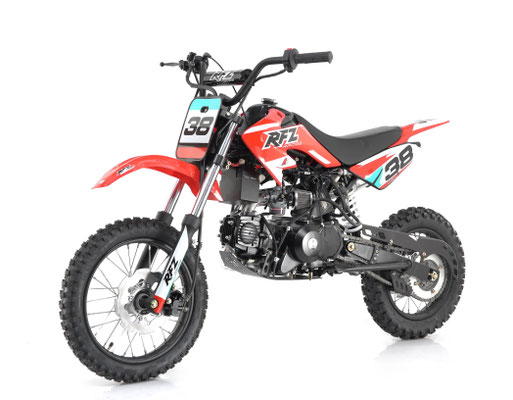

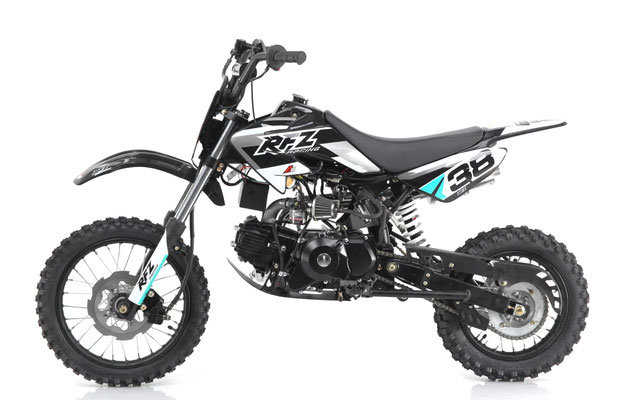

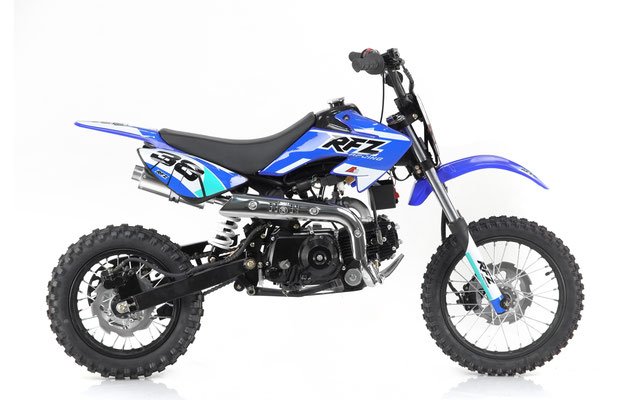

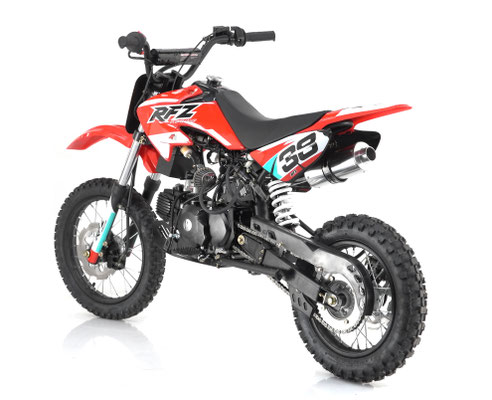

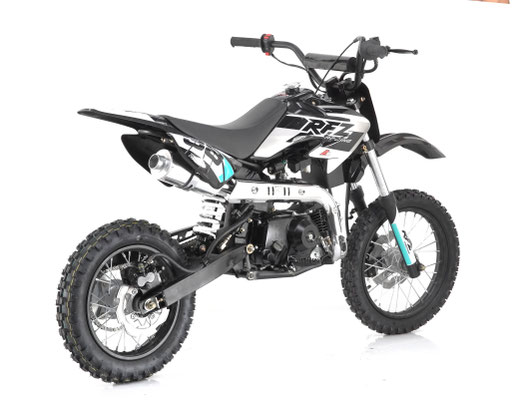

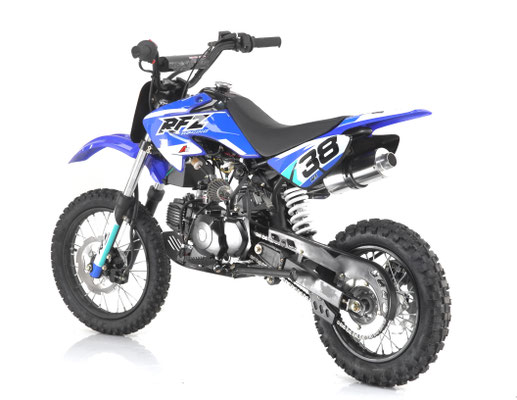

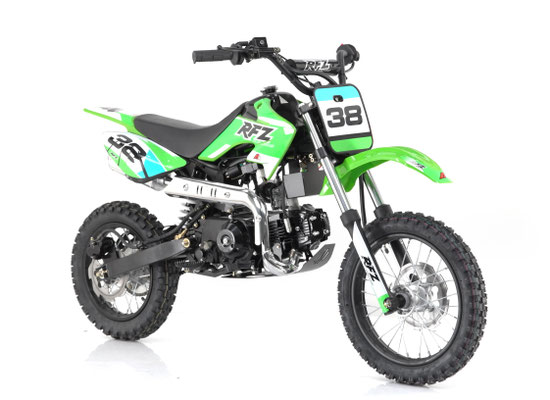

DB-38 110cc



carburetor PZ19
engine Brand FH
engine  110cc Air cooled, Fully automatic
Engine Gear Fully automatic
Transmission Chain Drive
Engine Bore X Stroke  52.4×49.5mm
compression ratio   9:1
max power  6.7HP/7500r/min
Max torque 7.2N.m/7500 r/min
Ignition CDI
Engine Oil total capacity 0.24 Gallon
Fuel Tank Capacity 0.85 Gallon
Start way Electrical Start
Front wheel 60/100-14
Rear wheel 80/100-12
Drive train Chain drive
Front absorber 320mm Non-Adjustable
Rear absorber 260mm Non-Adjustable
Front Hand Brake Hydraulic Disc
Rear Foot Brake Hydraulic Disc
Frame Single beam Heavy Duty Steel fram
N.W: 142 LBS
G.W 160 LBS
Products size(L*W*H)  61*30*35 inches
seat high  30 inches
Ground Clearance 8 inches
box size(L*W*H)  49*15*25.6inches
