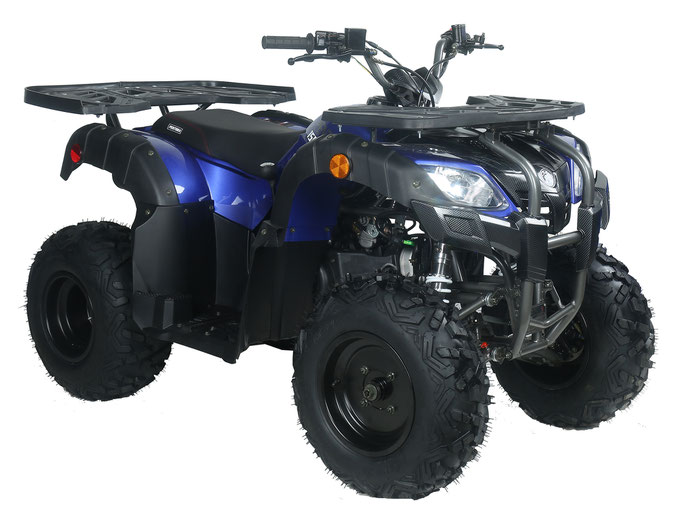

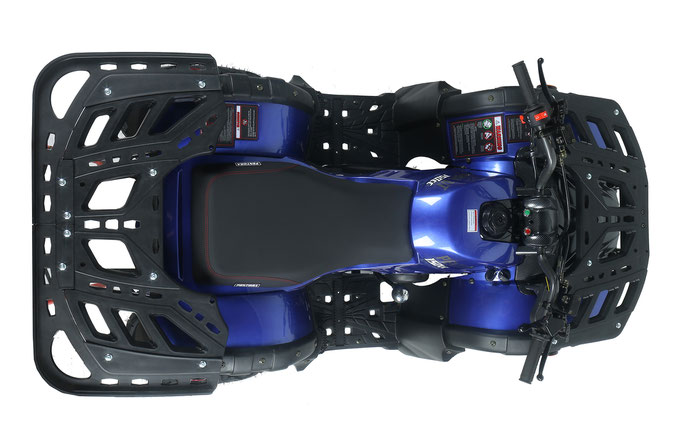

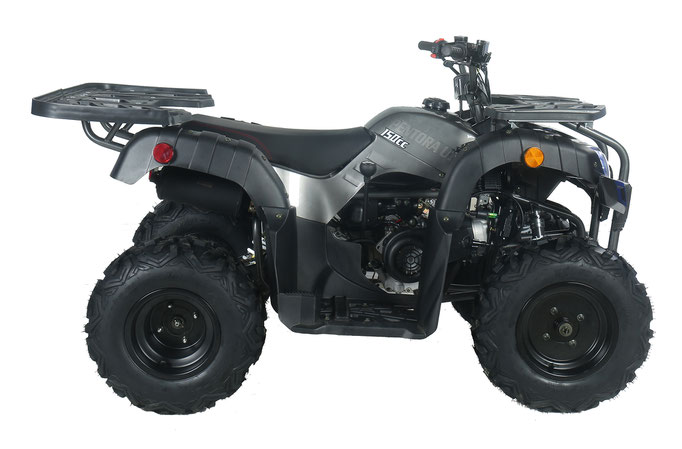

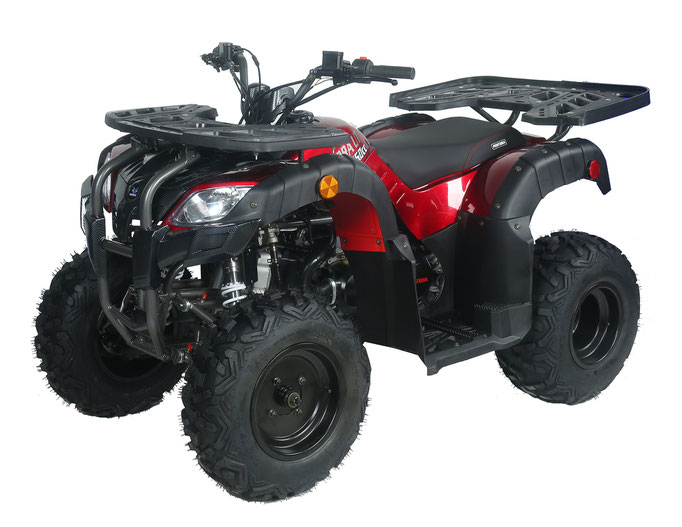

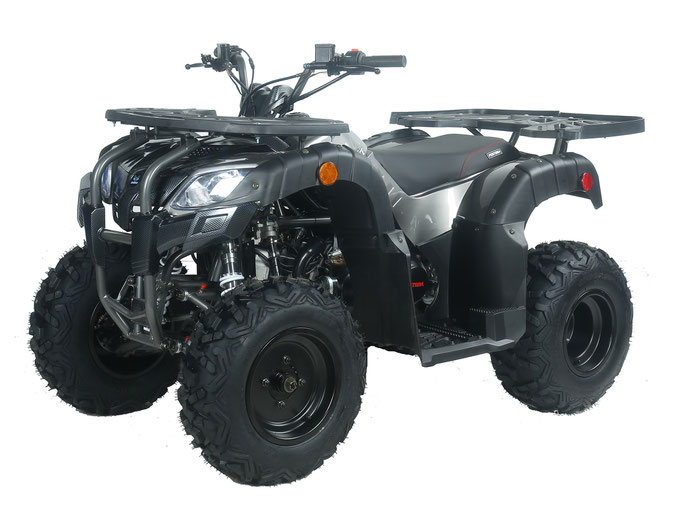

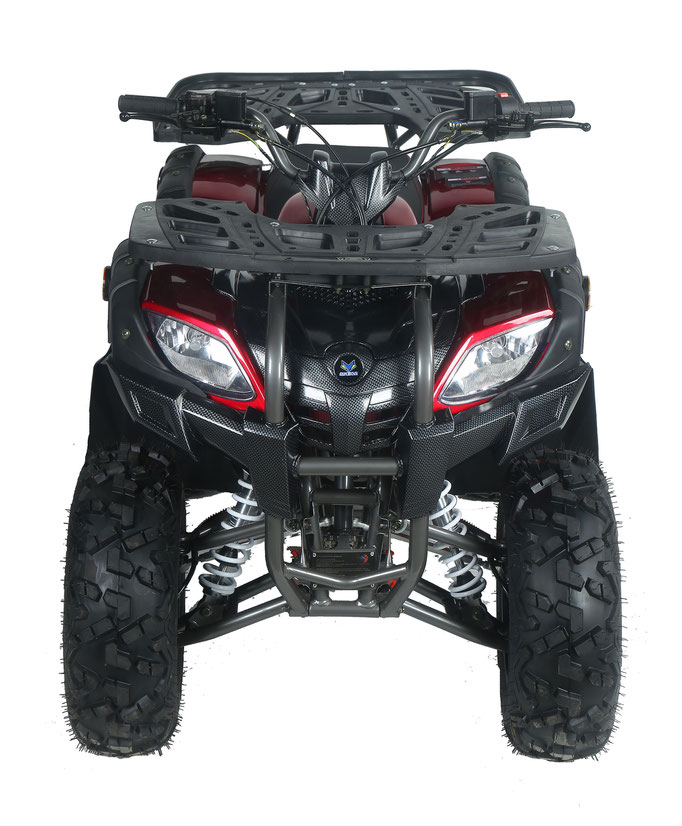

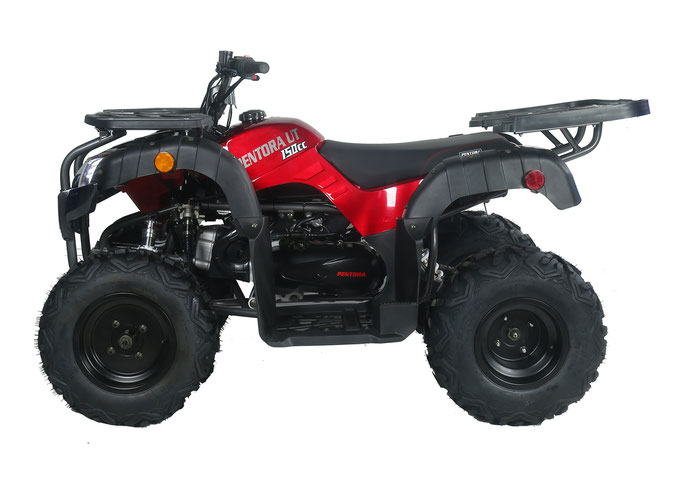

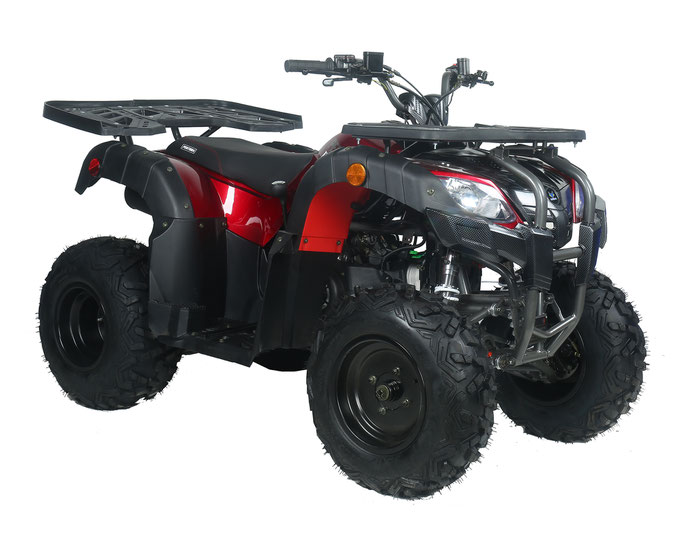

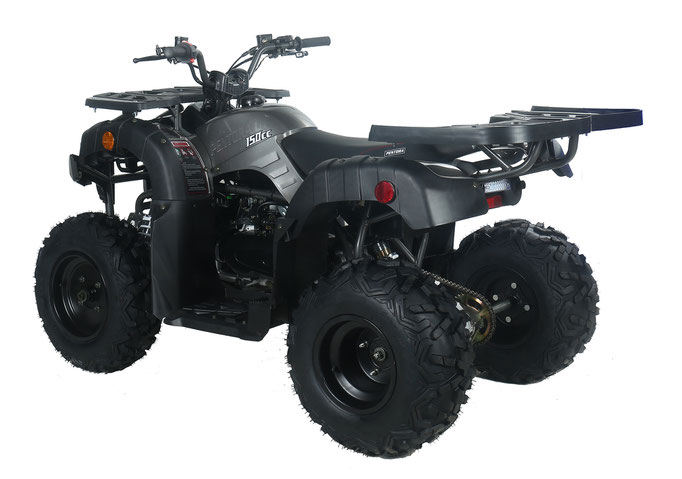

PENTORA ut 150CC - AUTO WITH REVERSE


Y55-Y150EPA- PENTORA 150

NO.

SPEC

ITEMS

DETAIL

1.

ATV SPEC

L×W×H

63.9”* 41.7”* 41.9”

2.

WHEELBASE

43.7”±0.7”

3.

FRONT WHEELBASE

32.2”

4.

REAR WHEELBASE

31.8”

5.

MINIMUM GROUND CLEARANCE

5.1”±0.5”

6.

SEAT HEIGHT

31.1±0.59”

7.

RIDE HEIGHT

8.8”

8.

HANDLE HEIGHT

39.3”

9.

PACKING SIZE

57.4”* 34.6”* 33.8” 62/40H

10.

FR. SUSPENSION TRAVEL

2.7”

11.

RR. SUSPENSION TRAVEL

3.1”

12.

MINIMUM TURNING CIRCLE DIAMETER

232.2”± 19.6”

13.

TURNING ANGLE

<45°

14.

SIDESLIP

<5m/km

15.

MAX LOADING

220 LBS

16.

NET WEIGHT

315 LBS

17.

G. W.

374 LBS

18.

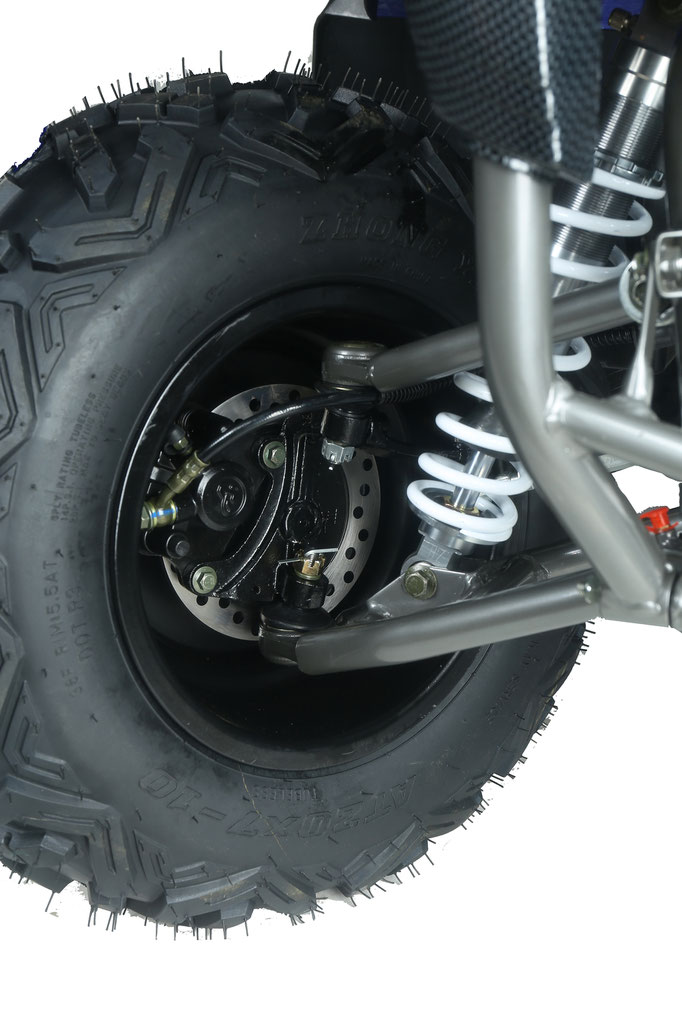

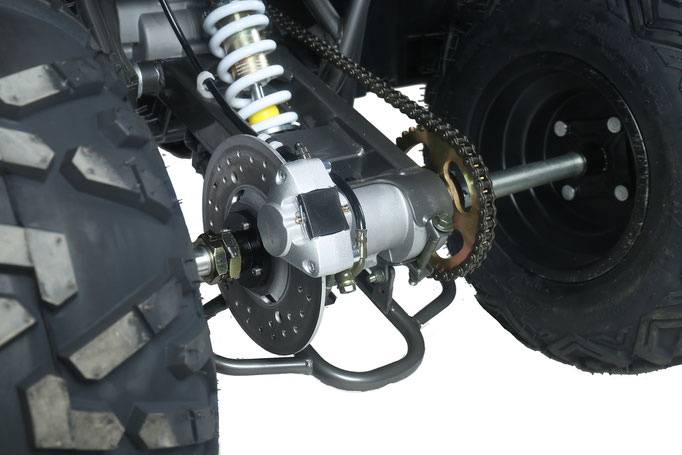

F&R BRAKE

FR. & RE. DISC BREAK

19.

F&R BRAKE OPERATION TYPE

FR. & RE. HAND BREAK

20.

FR./RR. RIM

10*5.5AT/9*8.0AT

21.

FR./RR. TYRE

AT20*7.0-10/AT19*10-9

22.

FR./RR. TYRE CAPACITY

9PSI

23.

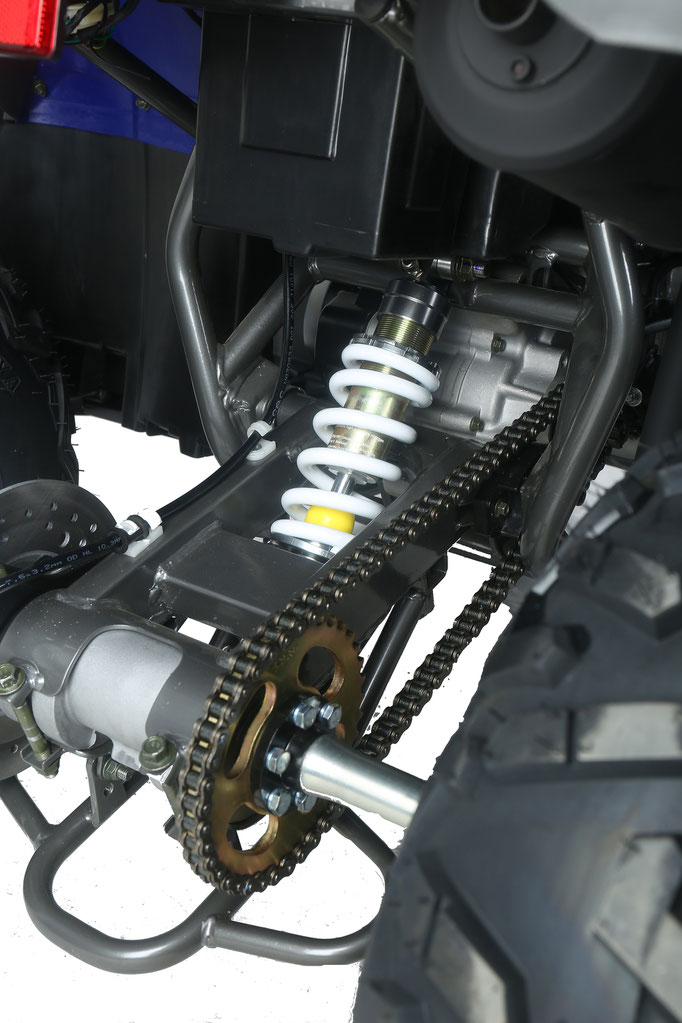

TRANSMISSION

CHAIN

24.

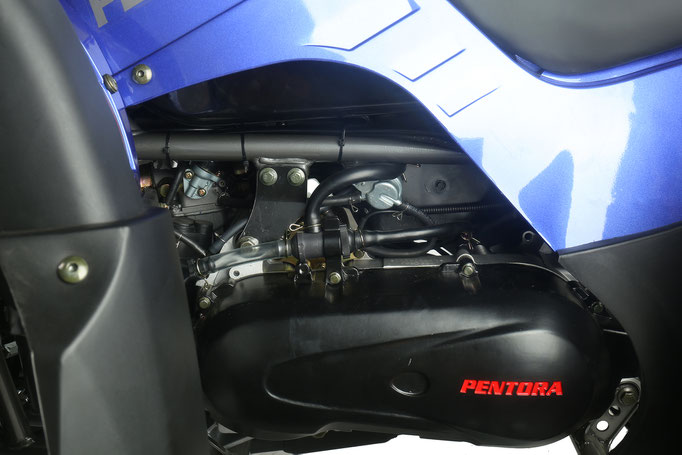

ENGINE SPEC

ENGINE TYPE

SINGLE CYCLINDER, AIR COOLER, 4 STROKE

25.

MODEL NO.

157QMJ-B2

26.

MANUFACTORY

WANG YE BRAND

27.

BRORE×STROKE

57.4 *57.8

28.

ENGINE CAPACITY

149.6 ml

29.

COMPRESSION RATIO

9.5:1

30.

MAX.POWER

7.3 kW/7000 r/min

31.

RATED POWER

8 kW/8000 r/min

32.

MAX.TORQUE

10.1 N·m/6000 r/min

33.

BATTERY

12V7HA

34.













TOP SPPED

70km/h

35.



TANK CAPACITY

9L`

36.

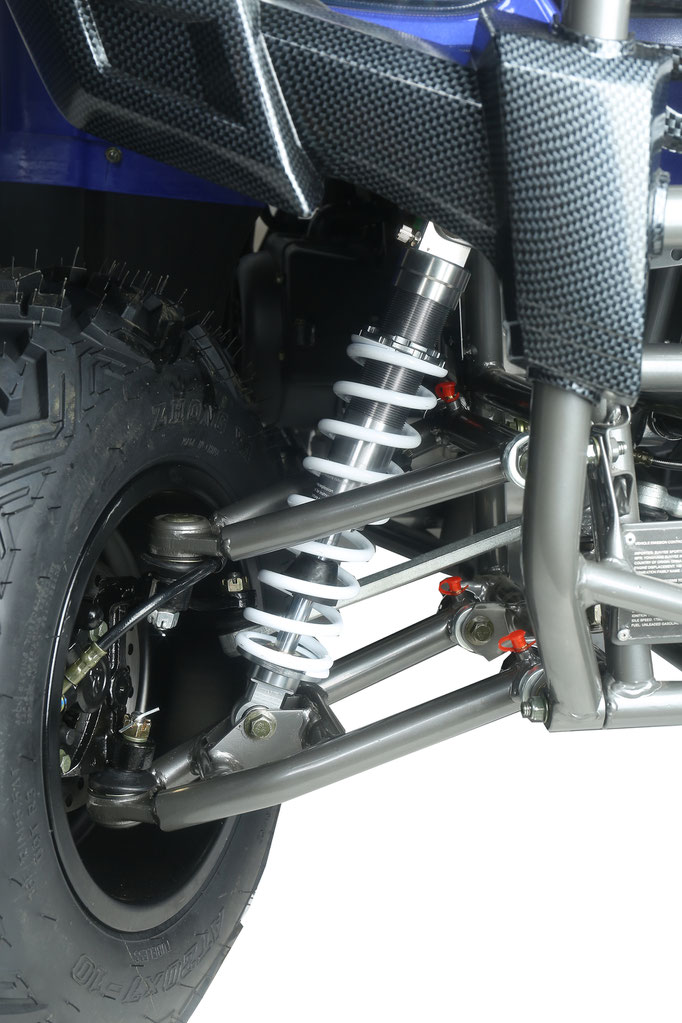

FR./RR. SUSPENSION

OIL DAMPER

37.

FR./RR. SUSPENSION LENGTH

L=350 m m /L=360 m m



AGE REQUIREMENT: (G16) 16-year-old and up
