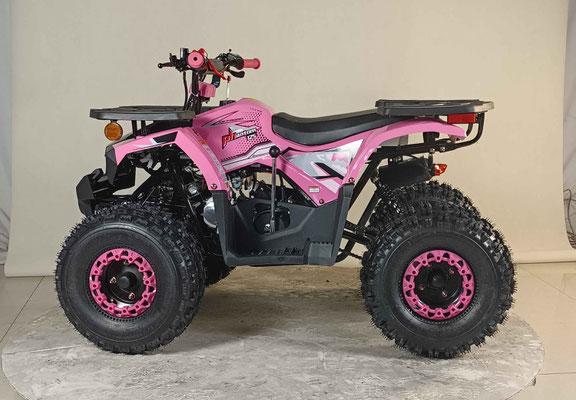

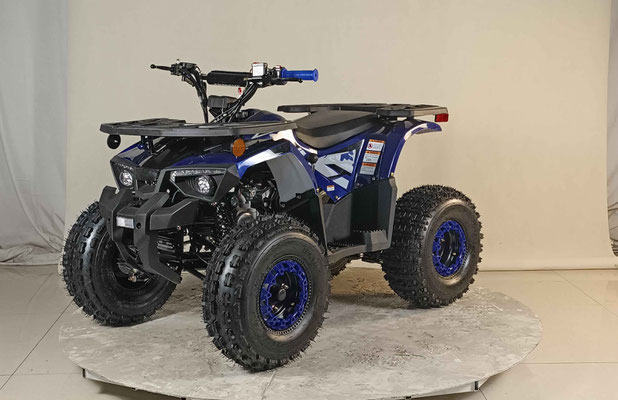

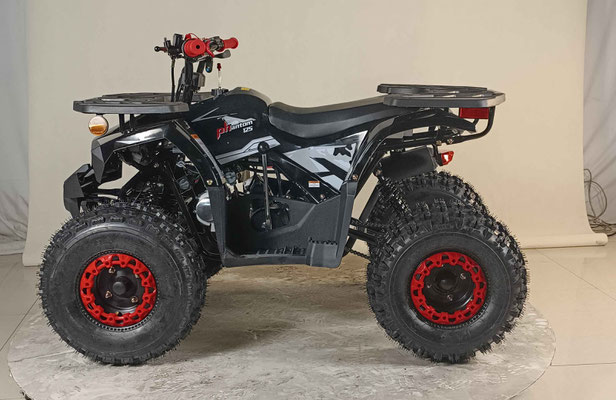

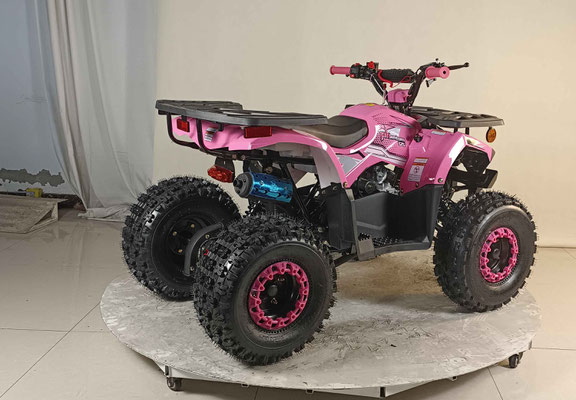

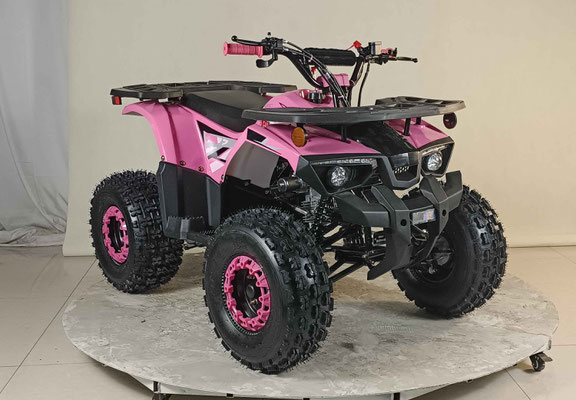

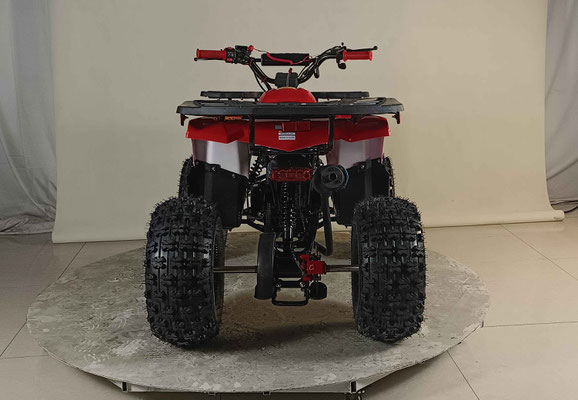

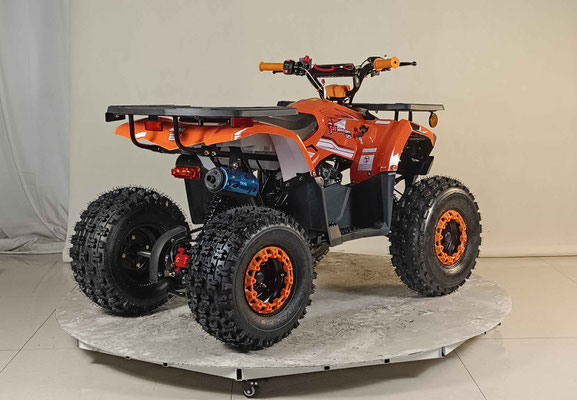

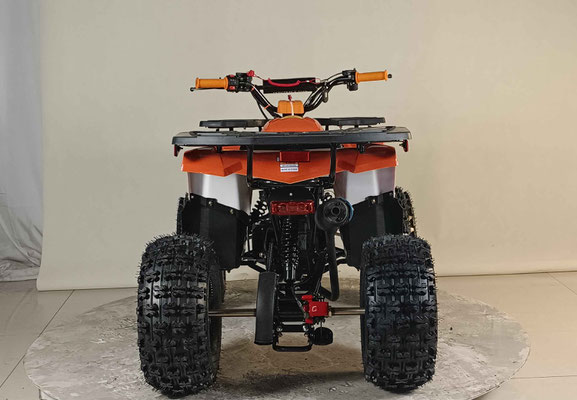

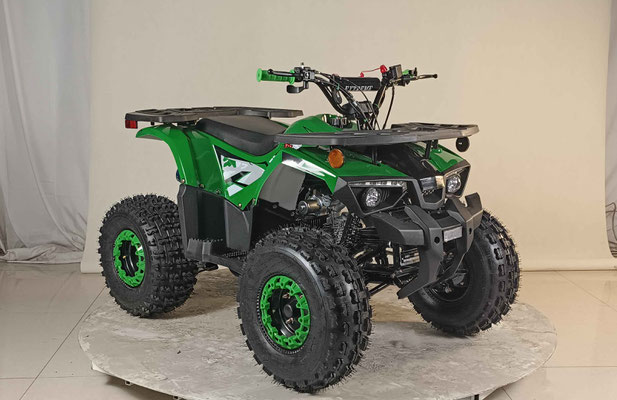

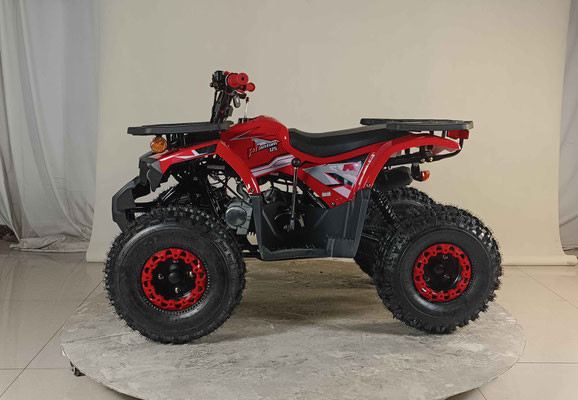

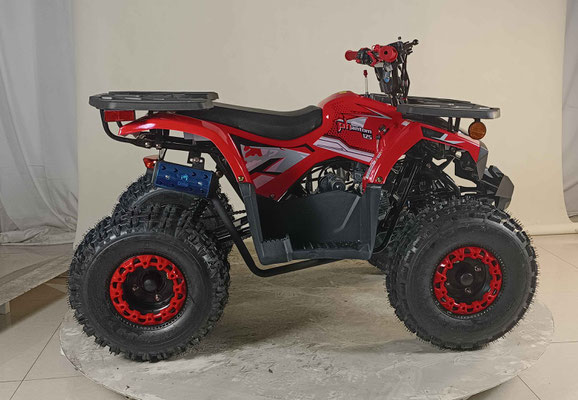

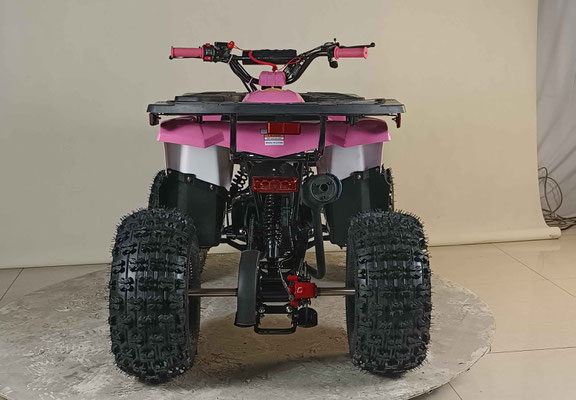

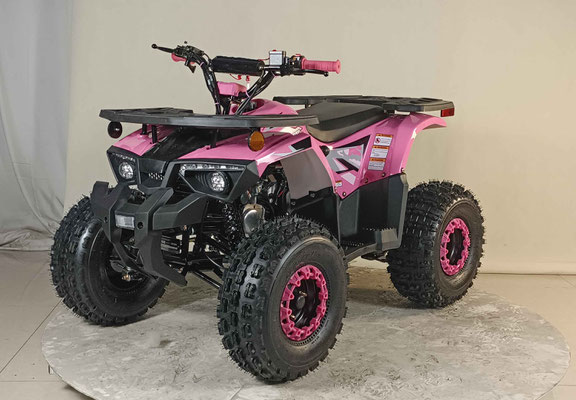

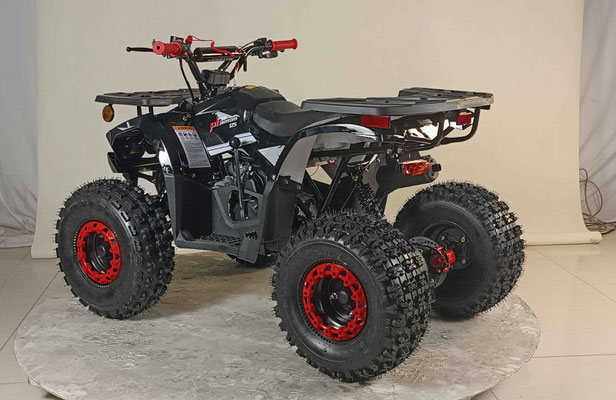

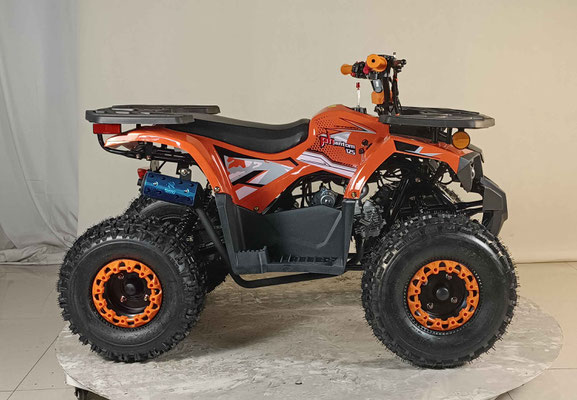

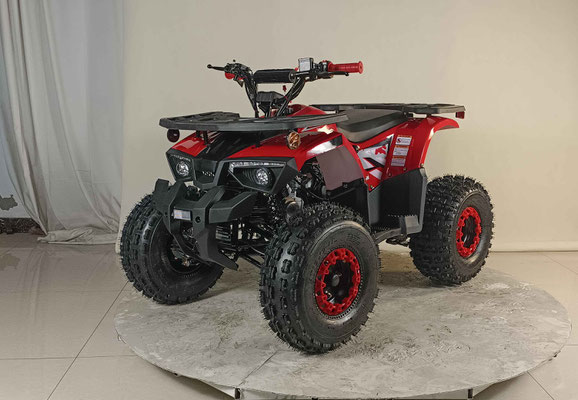

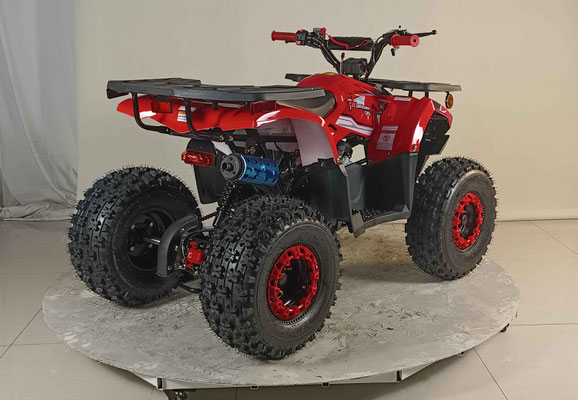

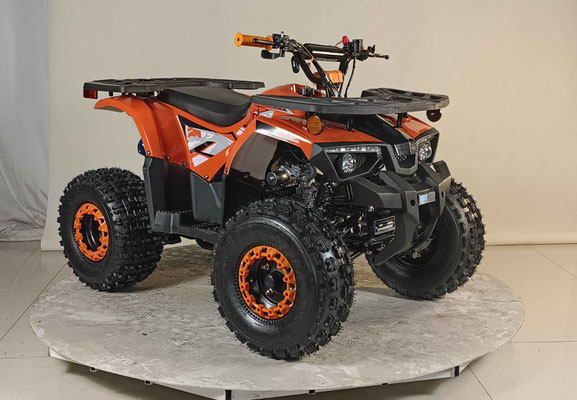

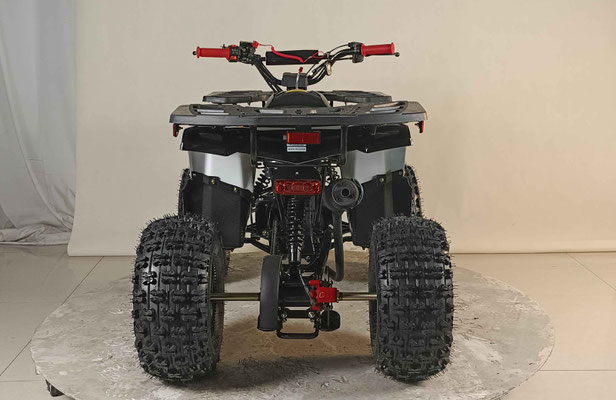

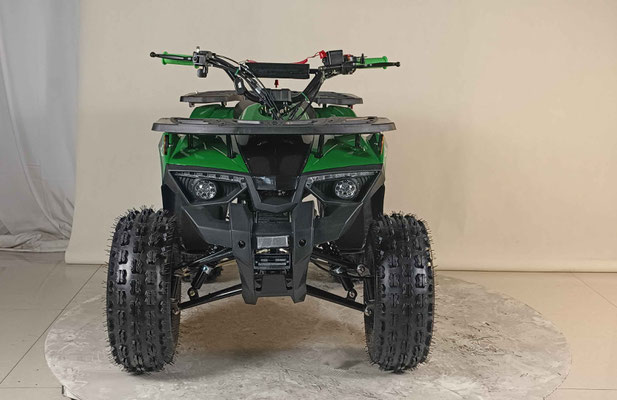

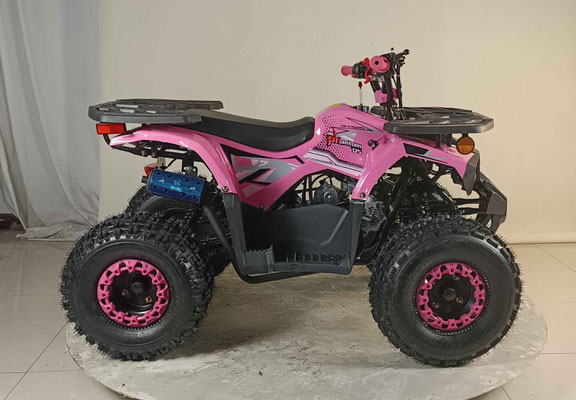

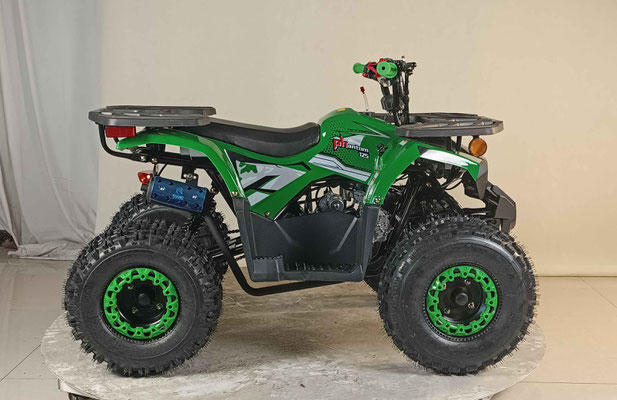

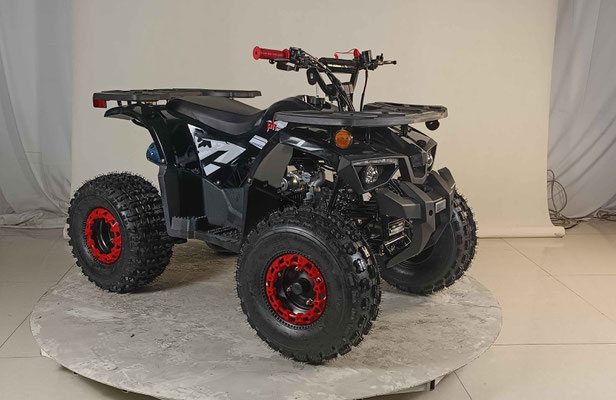

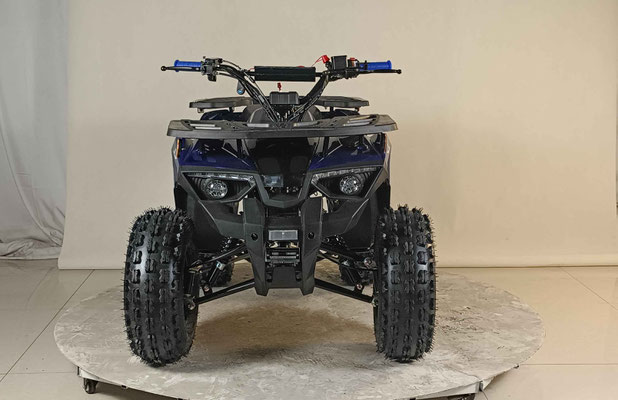

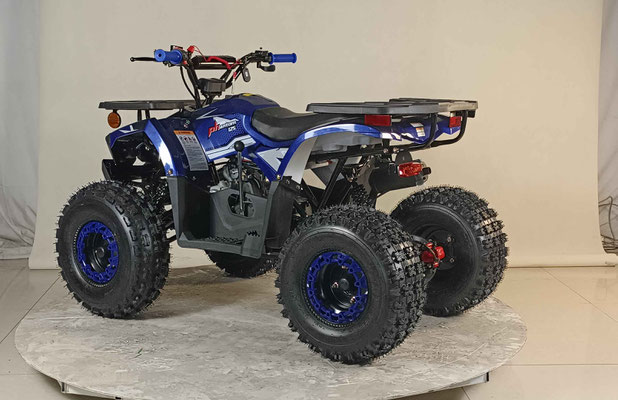

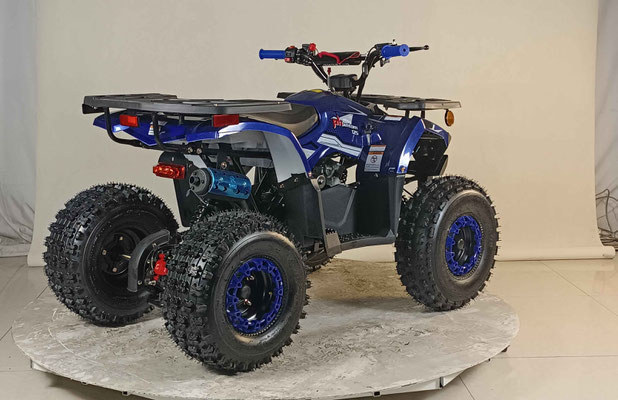

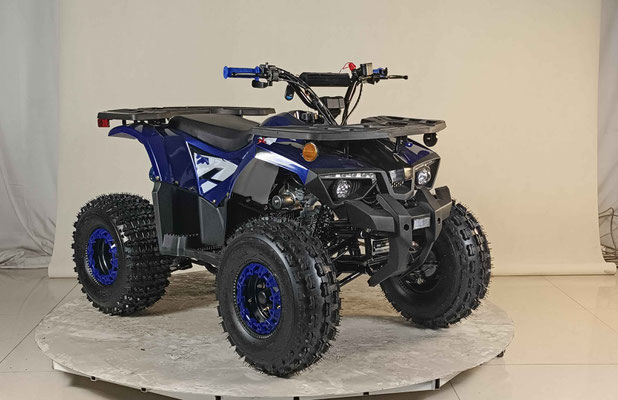

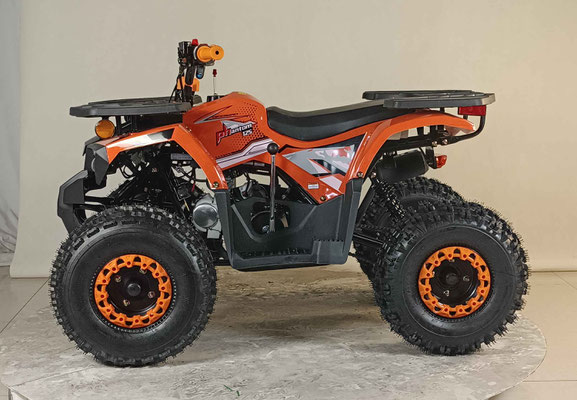

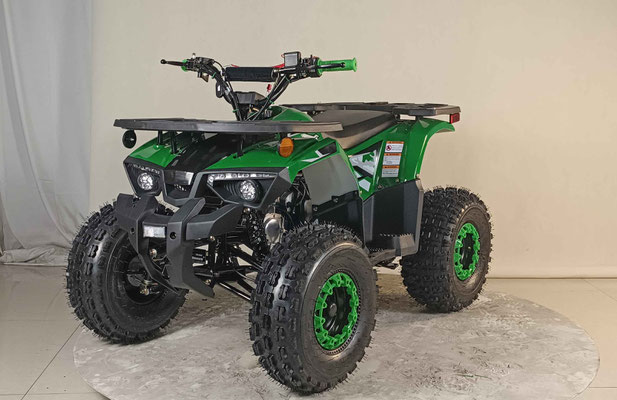

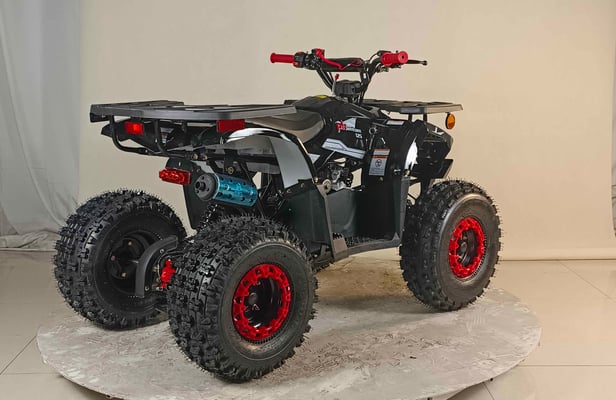

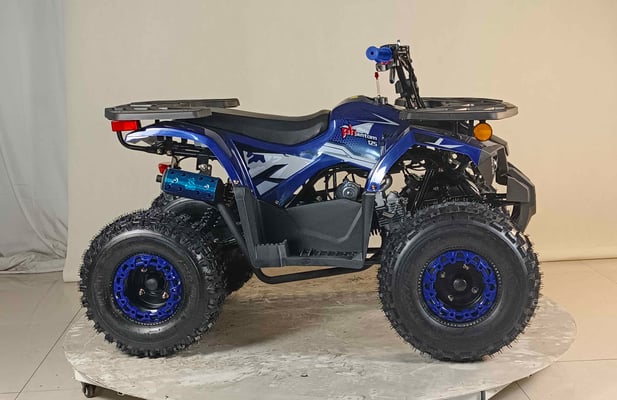

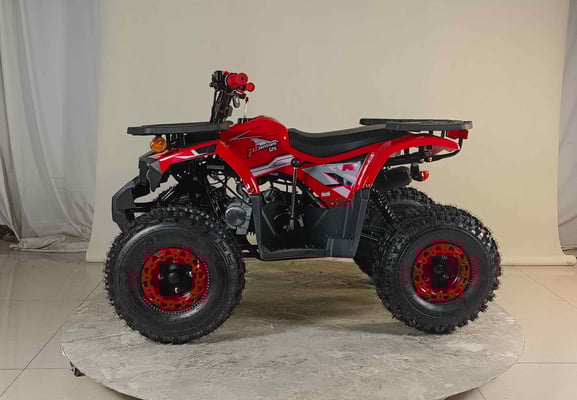

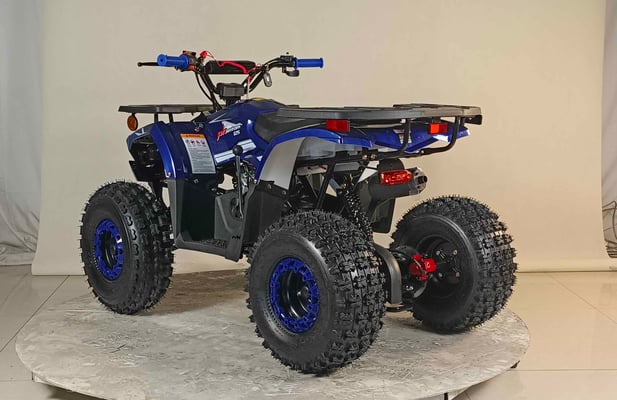

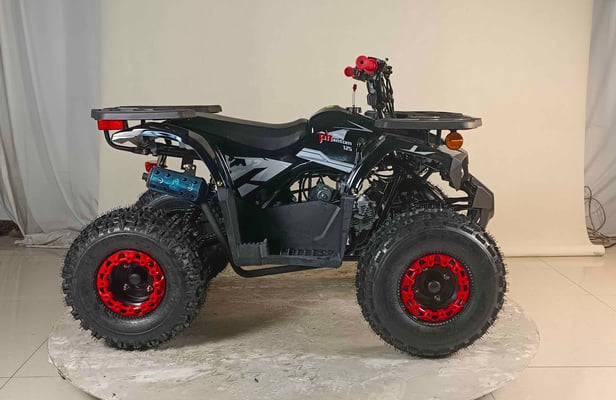

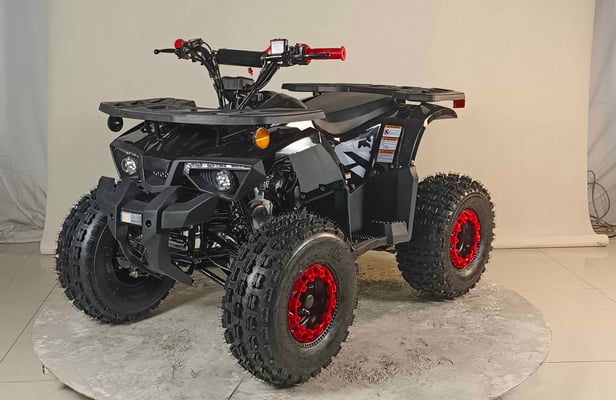

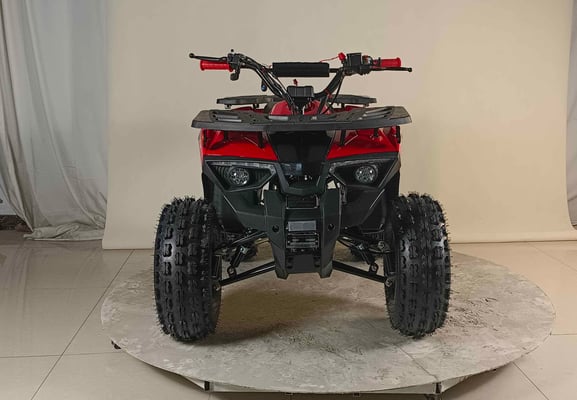

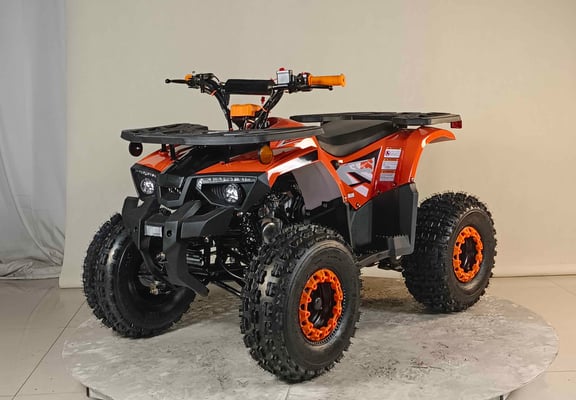

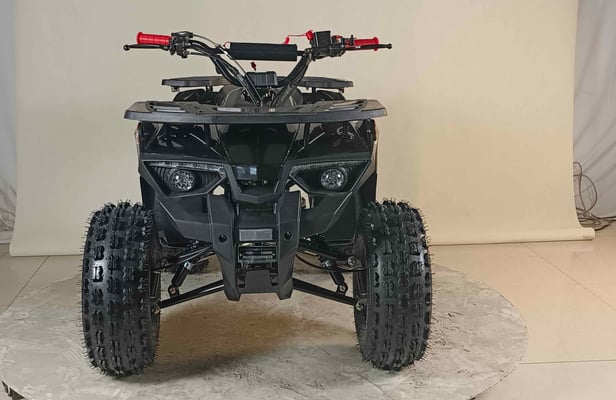

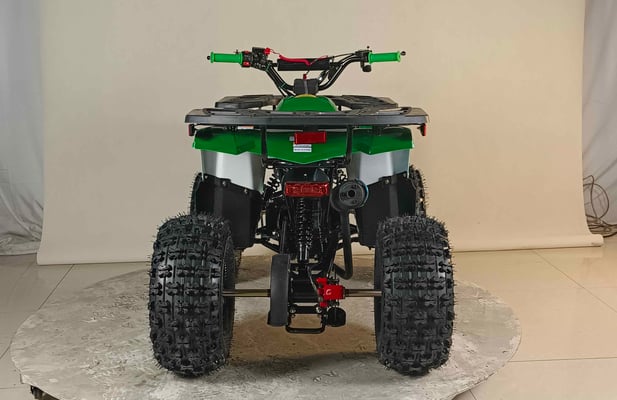

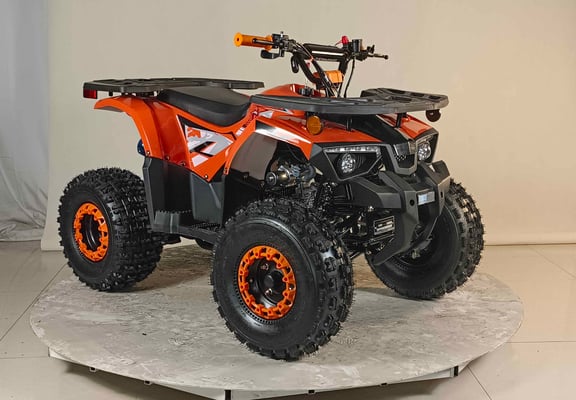

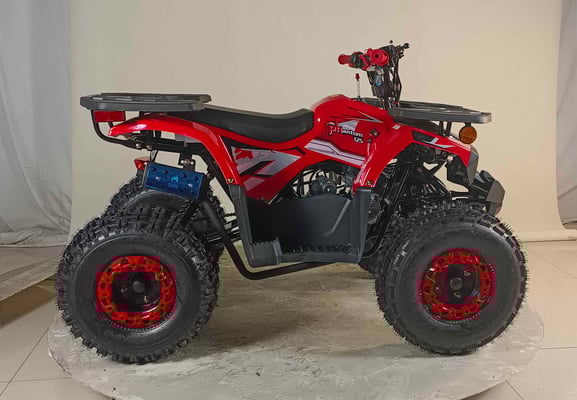

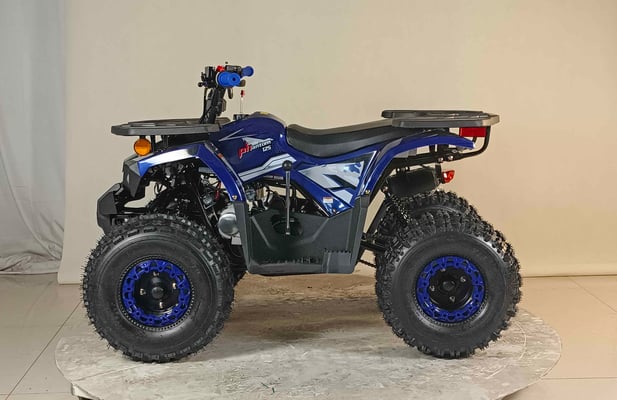

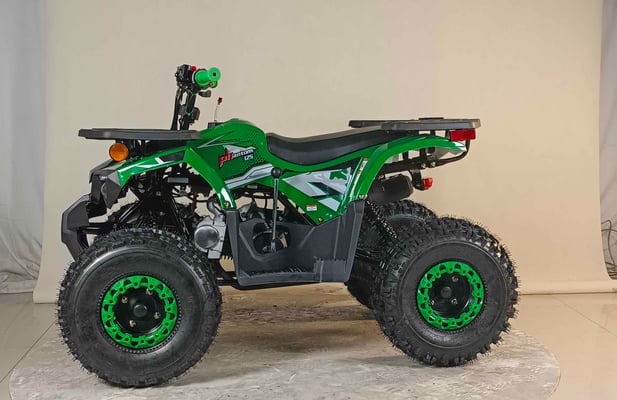

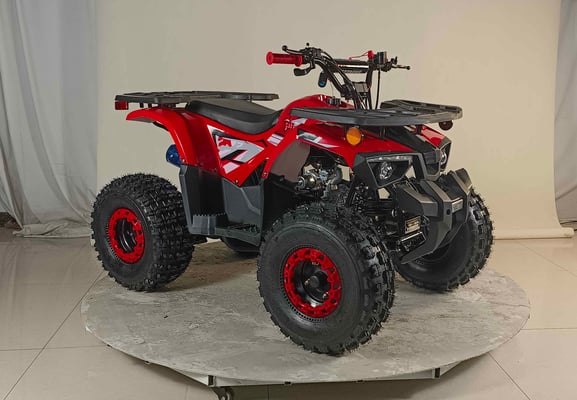

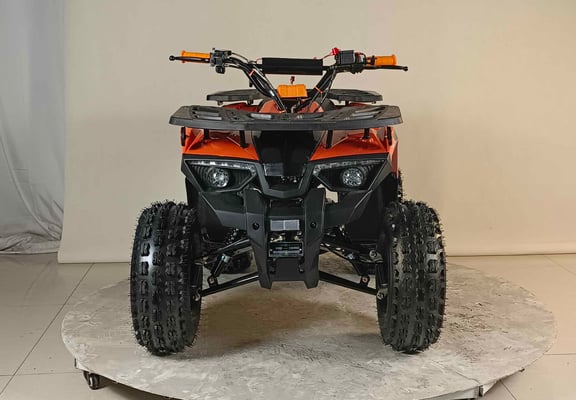

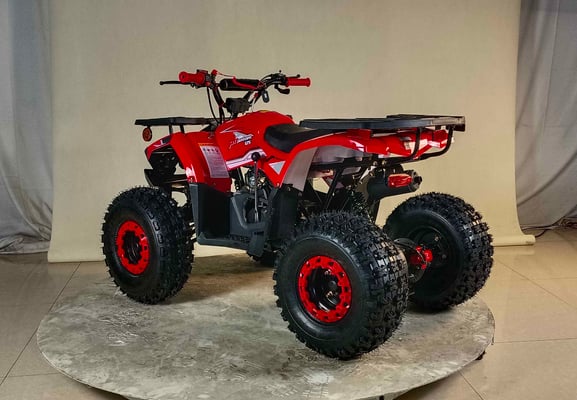

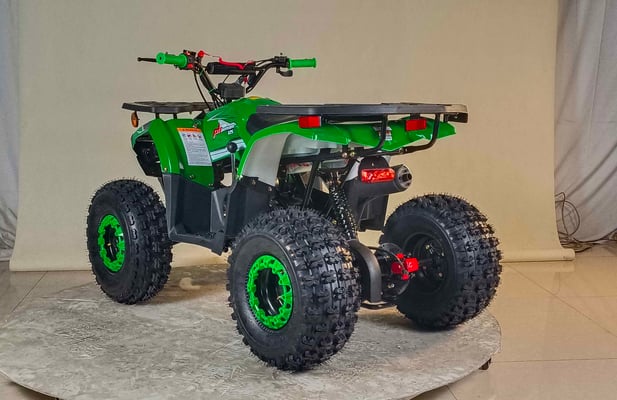

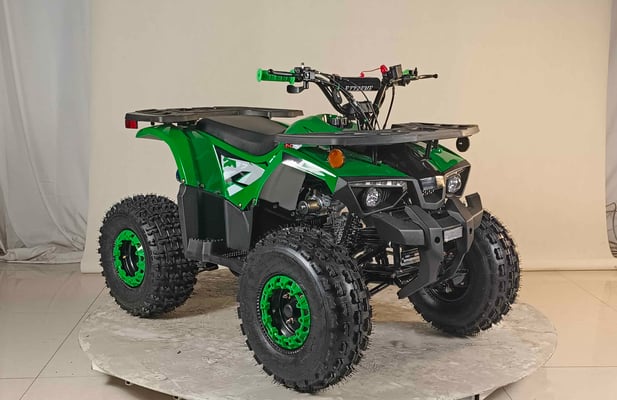

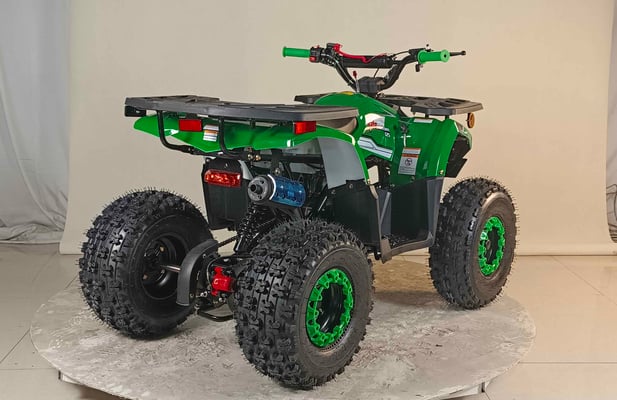

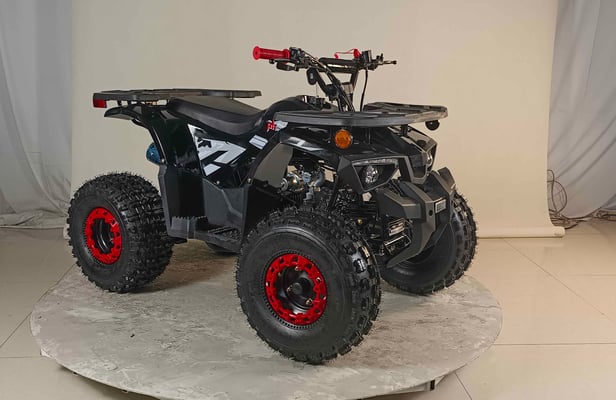

PHANTOM 125cc




Specifications

ENGINE
Type 125cc,风冷(Air cooled),4冲程(4-stroke),单缸(1-cylinder)
Bore x Stroke 52.4mmX55.5mm
Compression Ratio 9.1:1
Carburetor PZ20
Ignition CDI
Starting Time (Electric start)
Transmission (R-N-F)
Drive Train (Chain Drive)
Max. Torque 8.0N.m/5500r/min
Max. Power 5.3kw/7500r/min
CHASSIS
Suspension/Front (Independent double swing arm)
Suspension/Rear Single swing arm)
Brakes/Front Drum)
Brakes/Rear (Ventilated Hydraulic disc)
Tires/Front 19 x 7-8半径(19x 7-8 radial)
Tires/Rear 18x 9.5-8半径(18x9.5-8radial)
DIMENSIONS
L x W x H 1440mmX940mmX940mm
Seat Height 710mm
Wheelbase 960mm
Ground Clearance 135mm
Front track 760mm
Rear track 670mm
Battery 12V/5Ah
Fuel Capacity 2L
Dry Weight 106KG
Max. Load 75KG
Package Size 53.9X30.3X24.8 IN
Loading Quantity 96台/40高柜 (96pcs/40HQ)
MAIN PERFORMANCE
Max. Speed 48km/h
Fuel Consumption 2.6L/100kg
Starting Time 15s
Brake distance 30km/h6.5m
