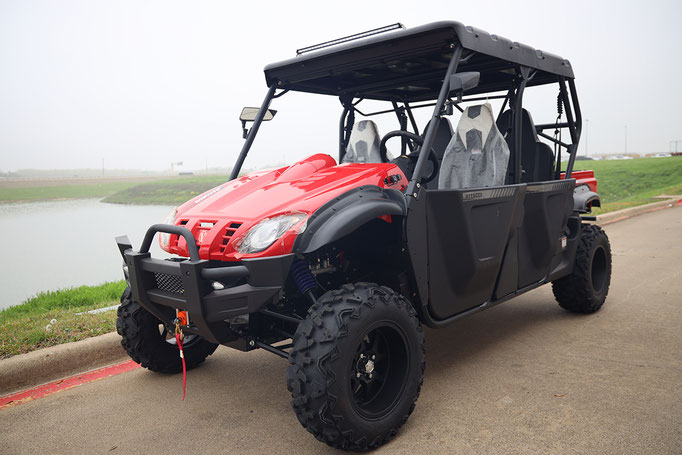

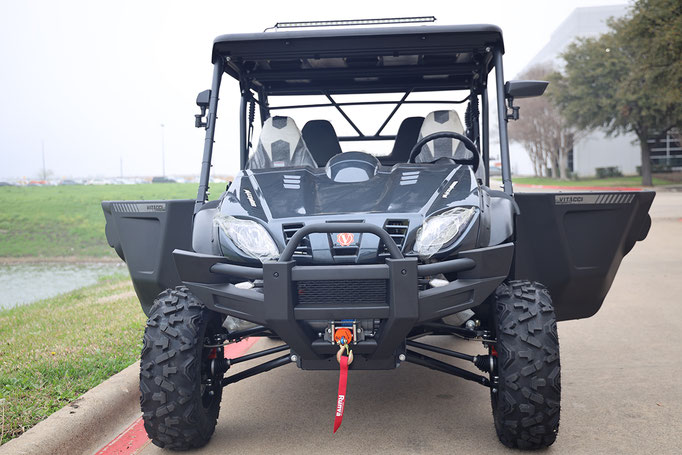

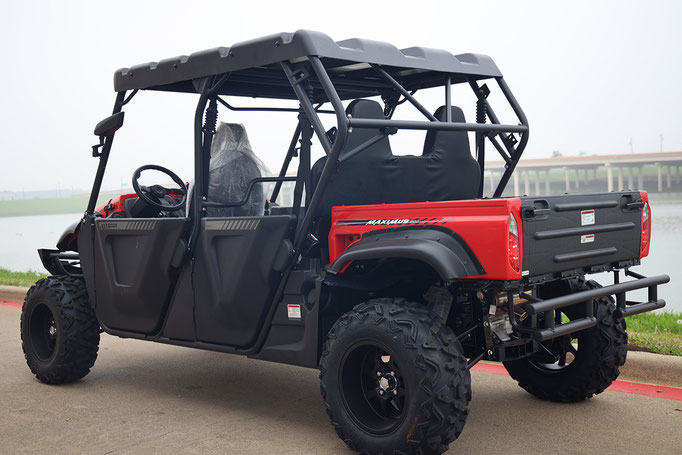

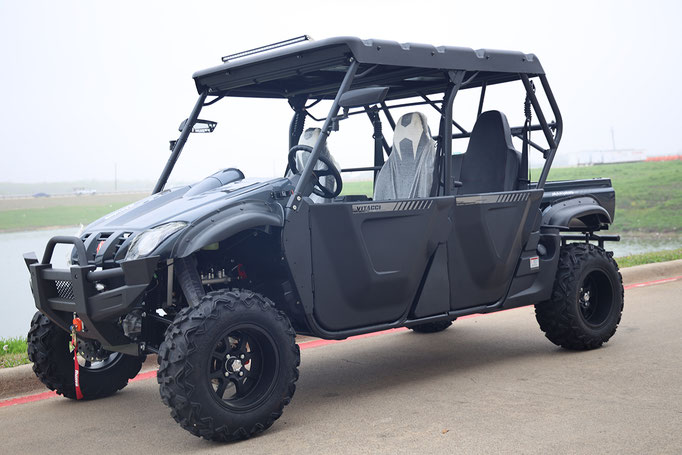

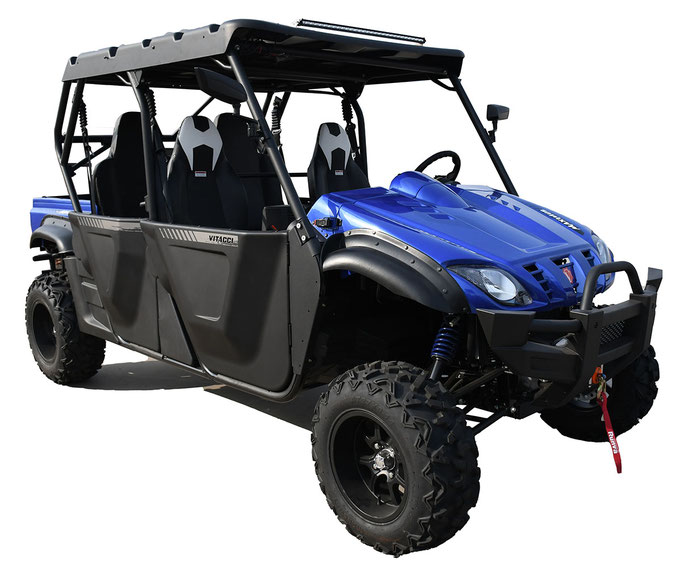

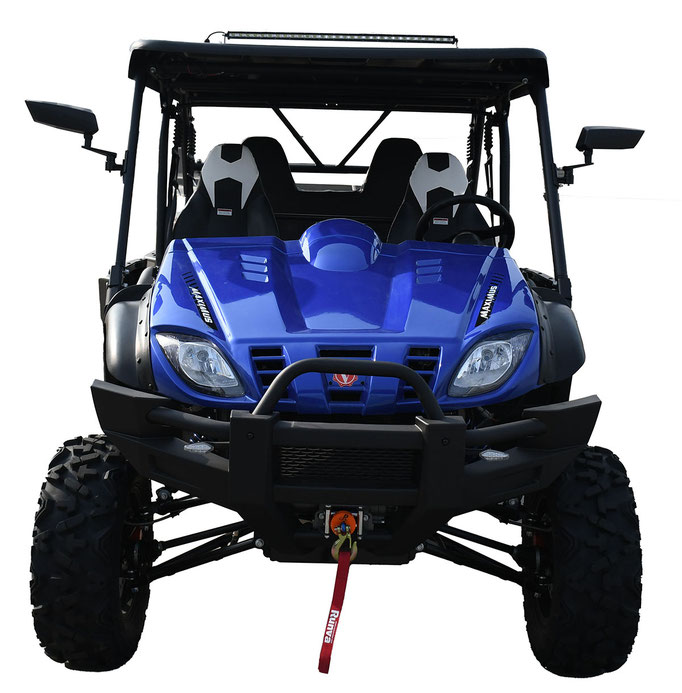

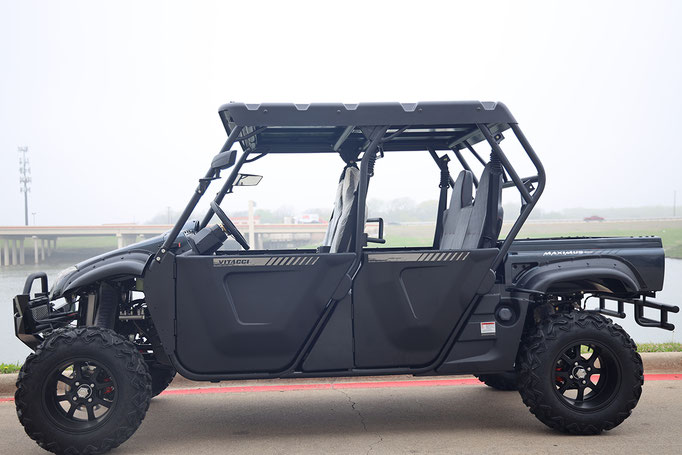

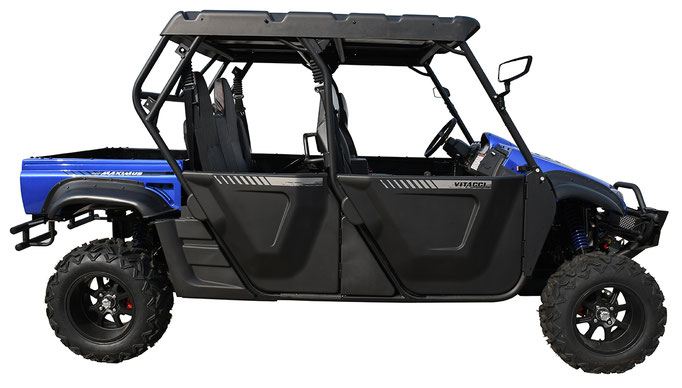

MAXIMUS 800CC EFI-4 SEATS - 4X4

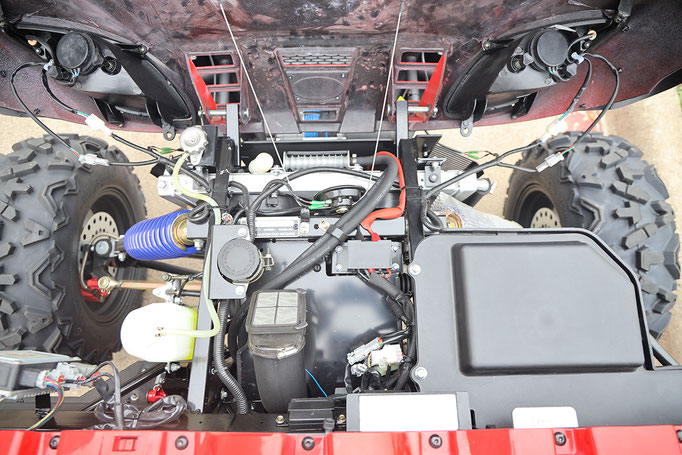

Engine Type: V-Twin Cylinder,4-Stroke
Engine Displacement: 800
Compression Ratio: 10.3:1
Fuel System: Electronic Fuel Injection
Max Power Output: 44.0kw/6000RPM
Max Torque: 73N.m/5000RPM
Cooling: Liquid Cooled
Starter: Electric

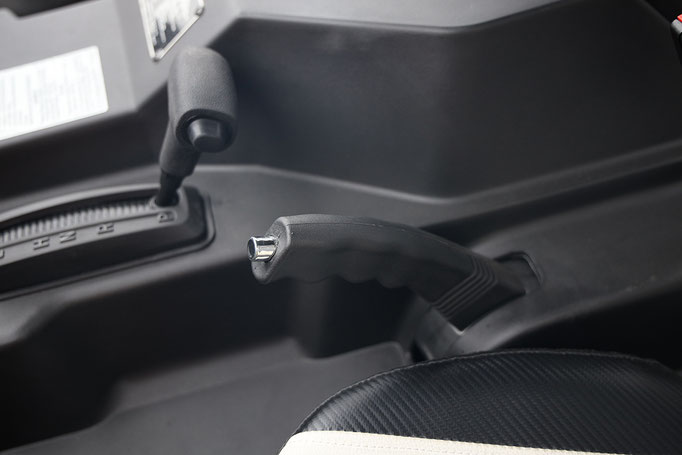

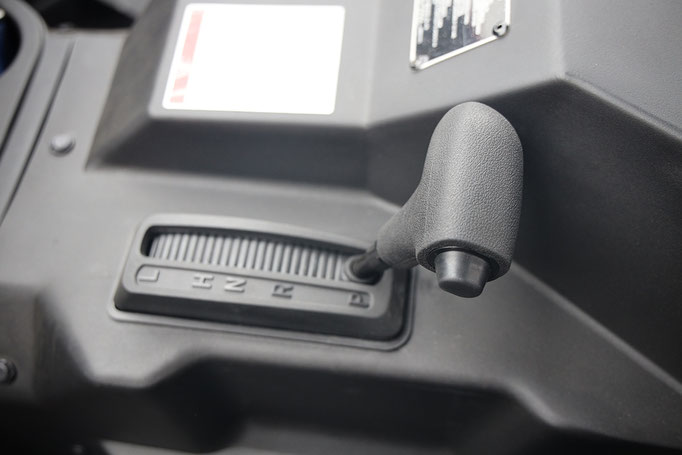

Transmission: CVT,L-H-N-R-P
Suspension/ Wheels/Brakes

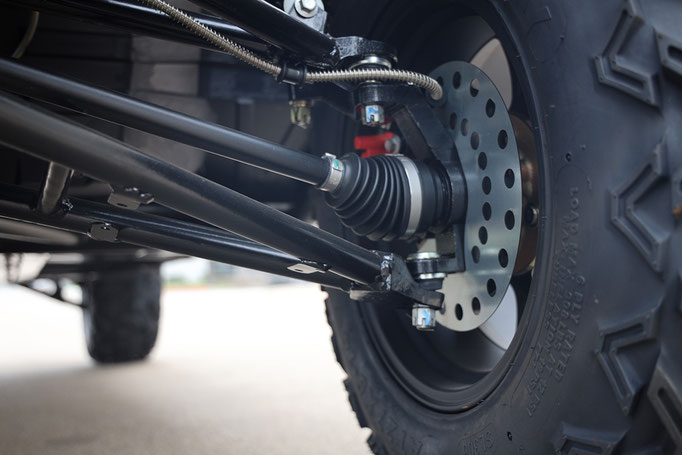

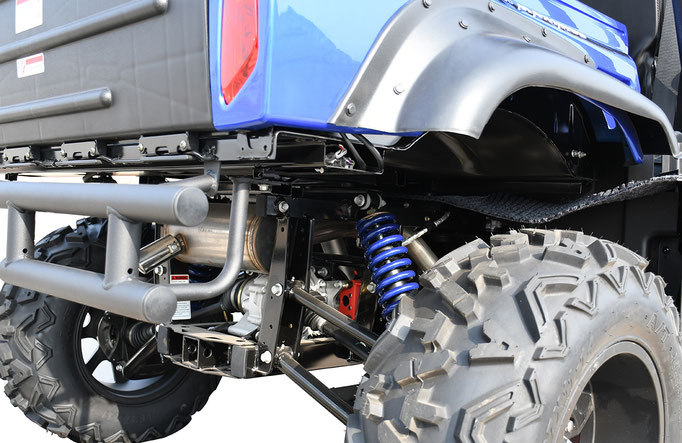

Front/Rear Suspension: Double A-Arm Independent
Shocks: Preloaded, Oil Damped

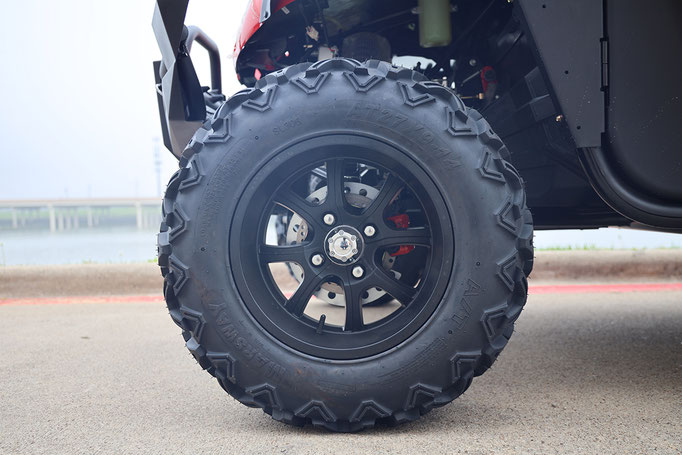

Front Tires: Alloy Wheel 27×9-14
Rear Tires: Alloy Wheel 27×11-14
Brakes (Front/Rear): Disc brake
Dimensions and Weight
Overall Vehicle (L X W X H): 151" X 68" X 77"
Wheel Base: 106"
Front Tread: 56"
Rear Tread: 54"
Ground Clearance: 11"

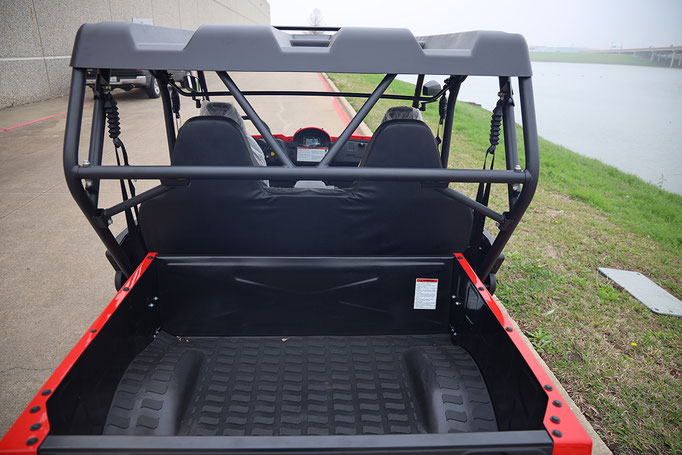

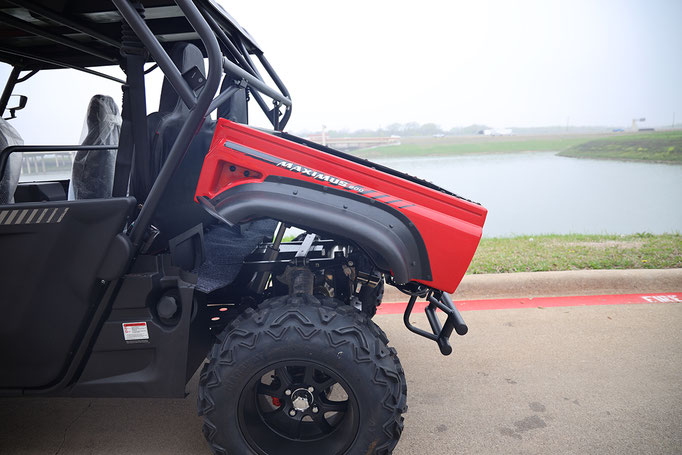

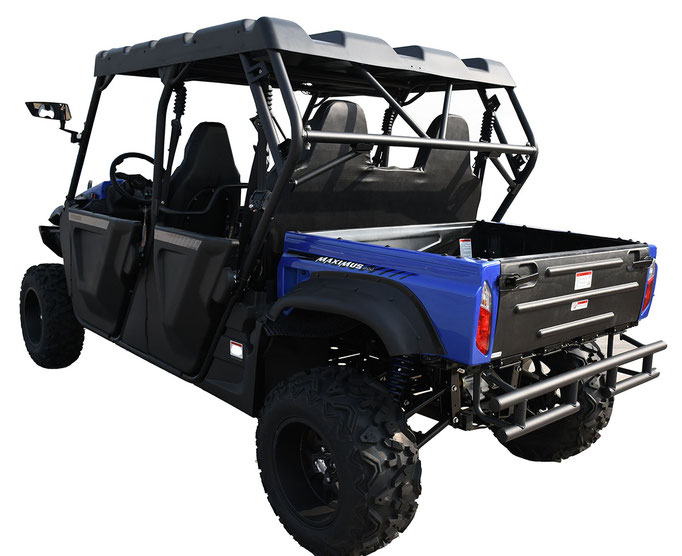

Cargo Bed Dump Type: Hydraulic Lift
Cargo Bed Capacity:: 220LBS

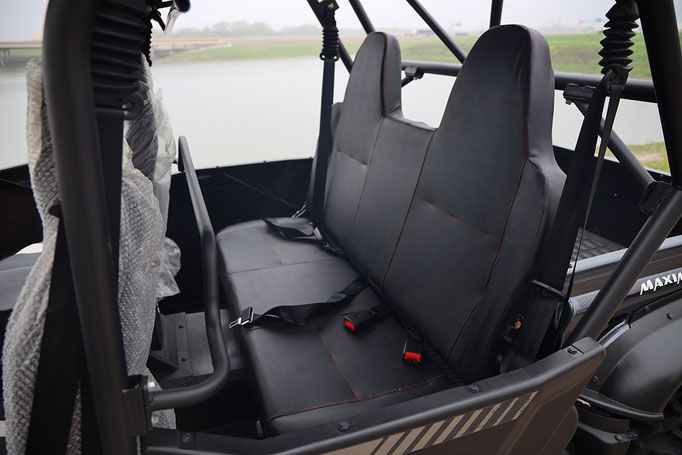

Person Capacity: 5

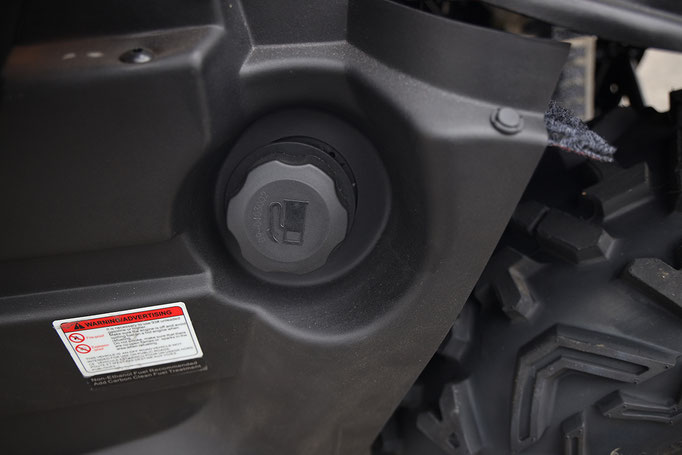

Fuel Capacity: 6.6 Gallons
Curb Weight: 1683LBS
Gross Vehicle Weight : 1874LBS
Towing Capacity: 2200LBS
Certification EPA
Container Loading 6PCS/40HQ
Colors Cyber Grey,Red,Blue
ACCESSORIES

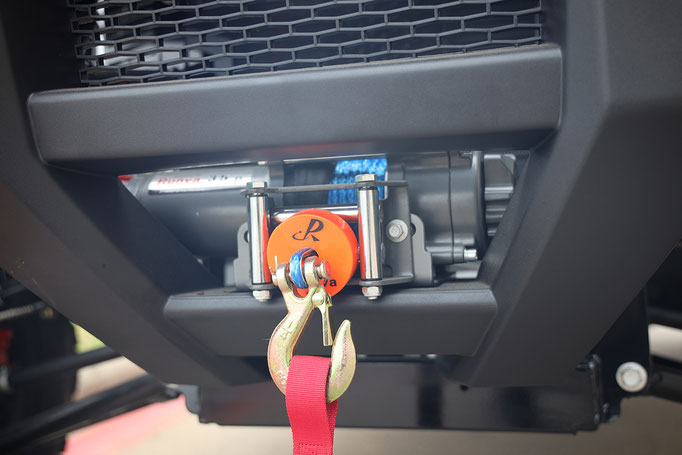

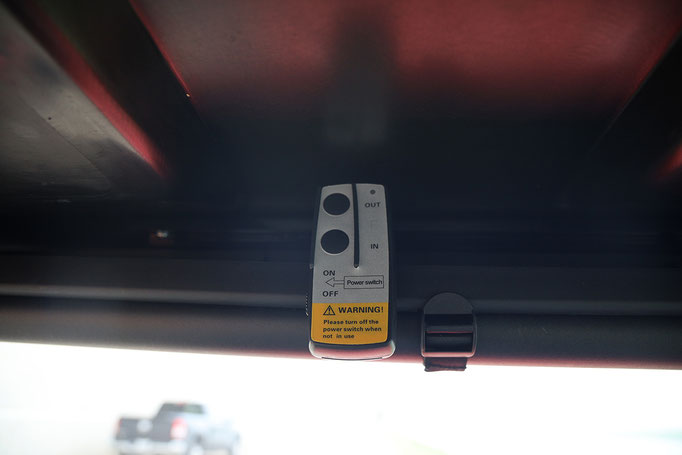

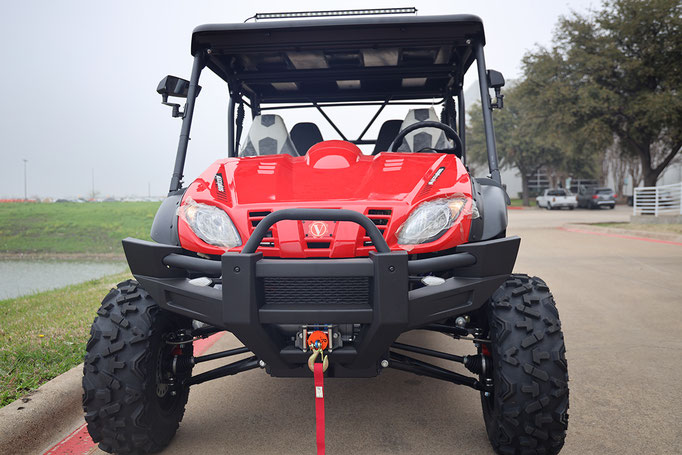

3500 LBS Front Winch Standard
Alloy Wheel Standard

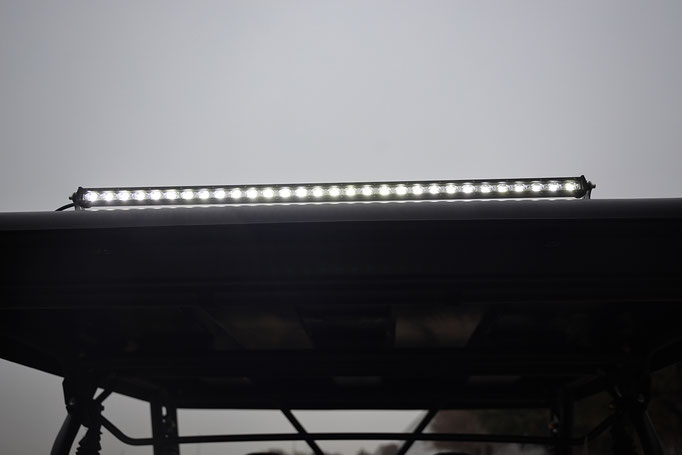

Roof LED Light Standard
Front Windshield Standard

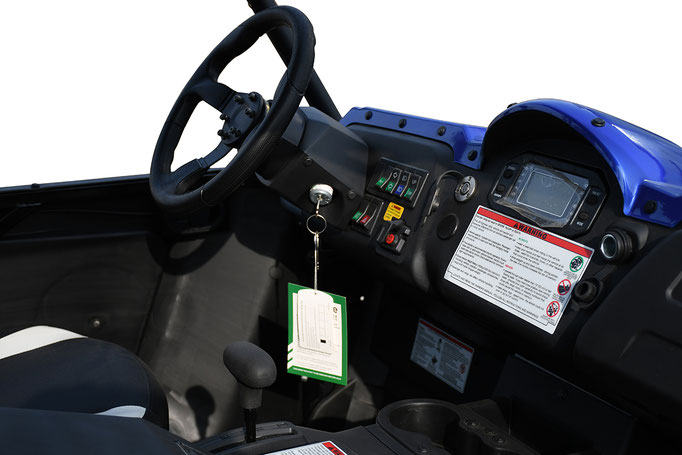

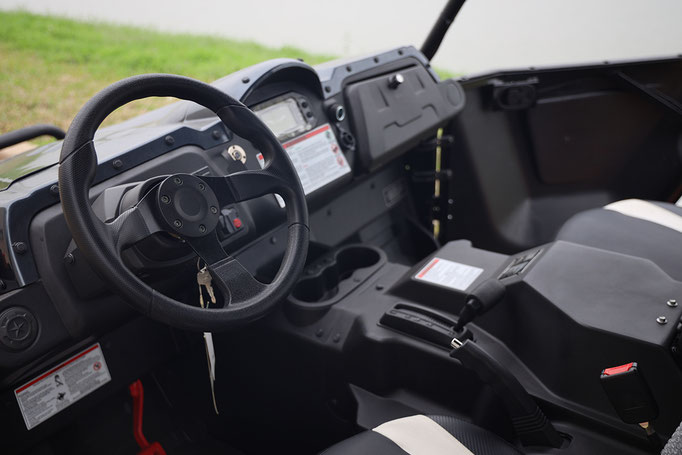

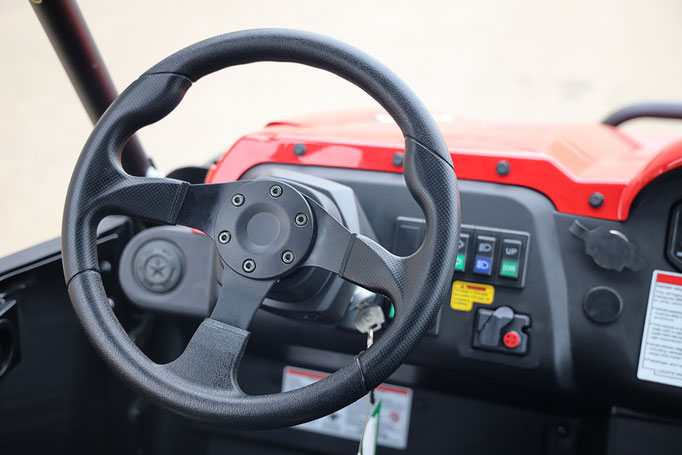

Power Steering Standard

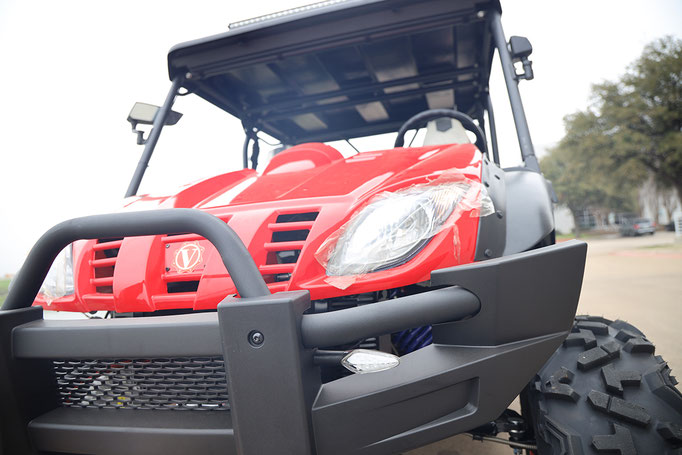

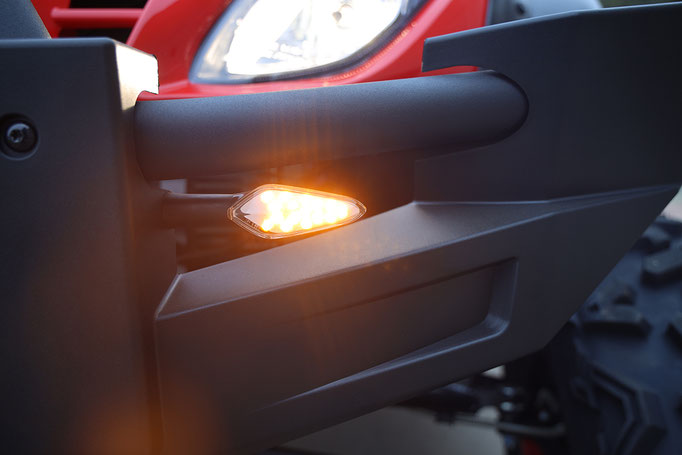

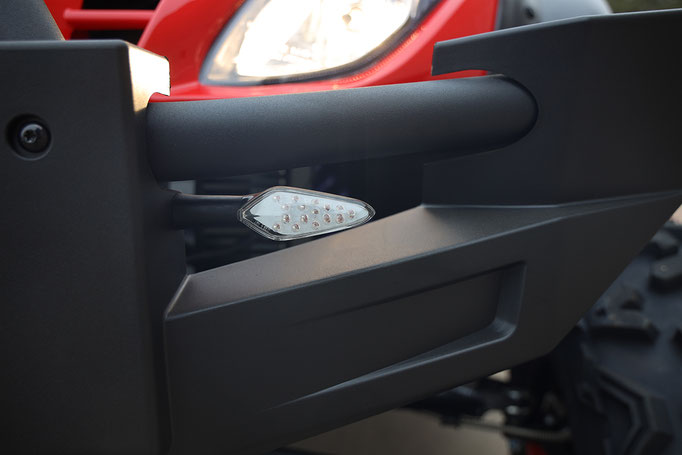

Front Bumper Standard
Rear Bumper Standard

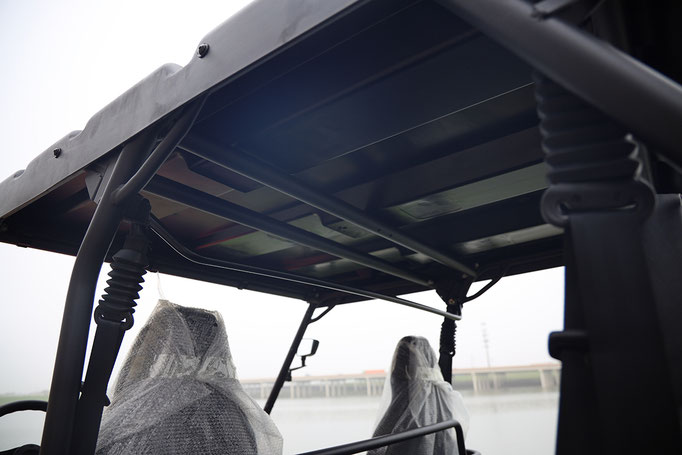

Roof Standard

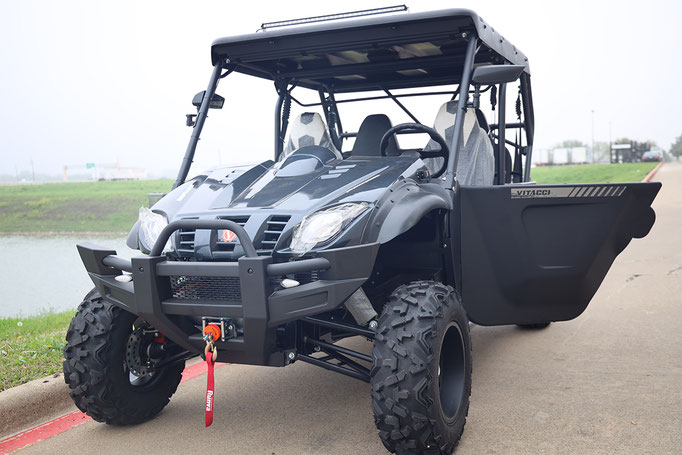

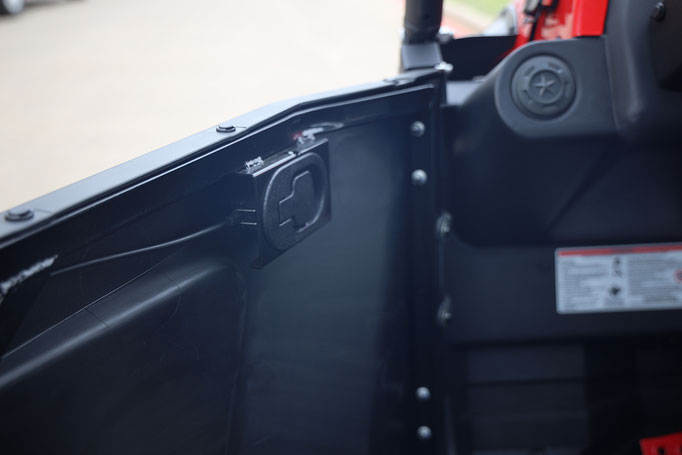

Plastic Door Standard

Download
User Manual-Maximus 800.pdf
Adobe Acrobat Document 6.2 MB

Download
Parts Diagram_2023 UTV Maximus 800 cc- 4
Microsoft Excel Table 14.2 MB
