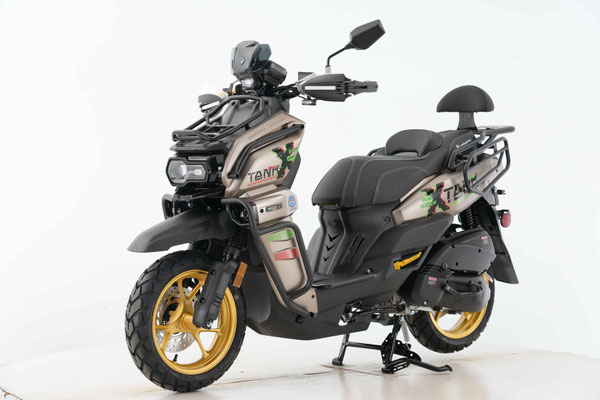

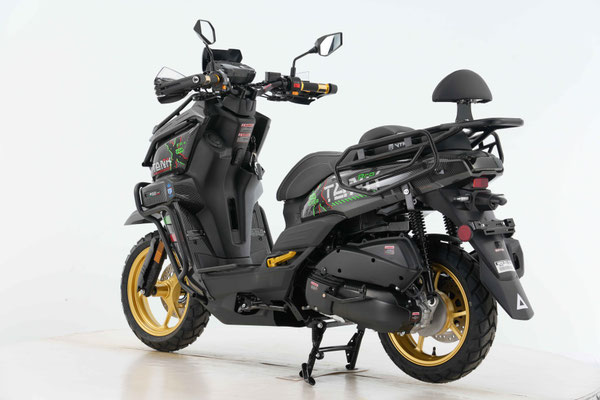

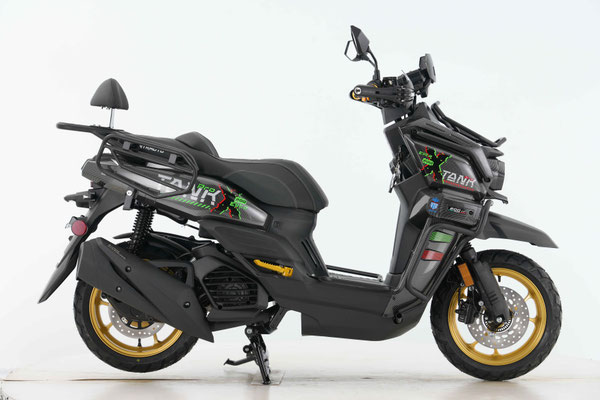

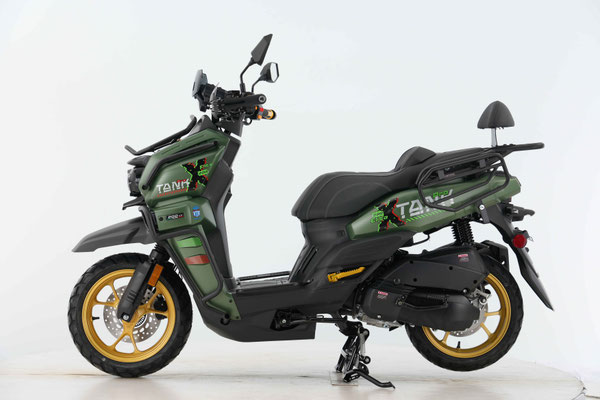

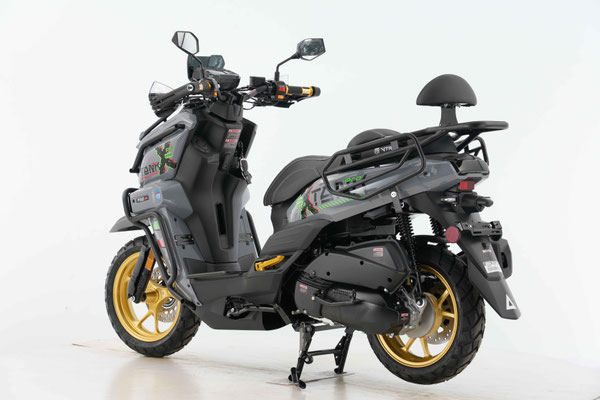

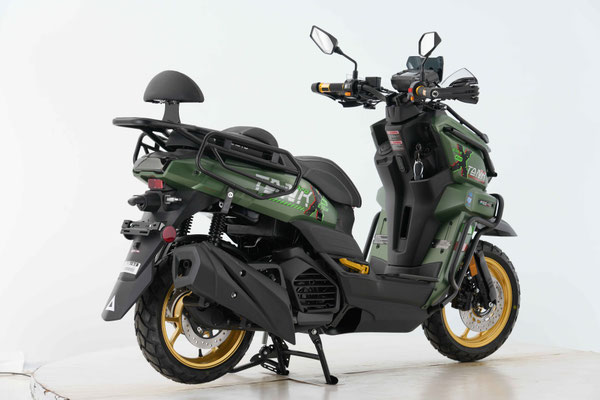

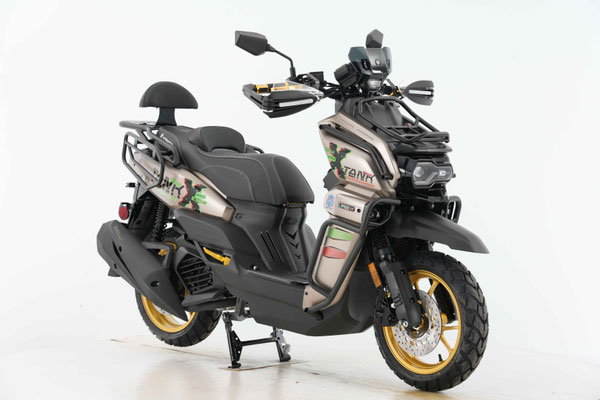

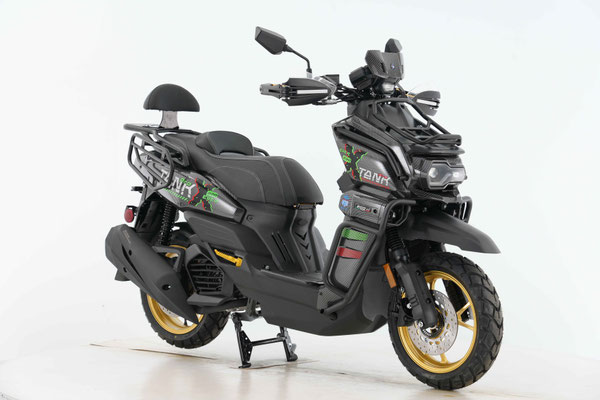

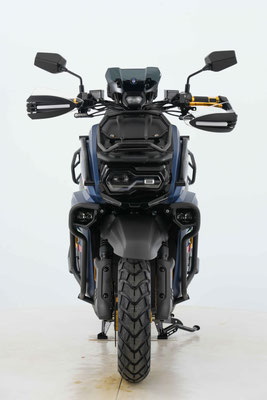

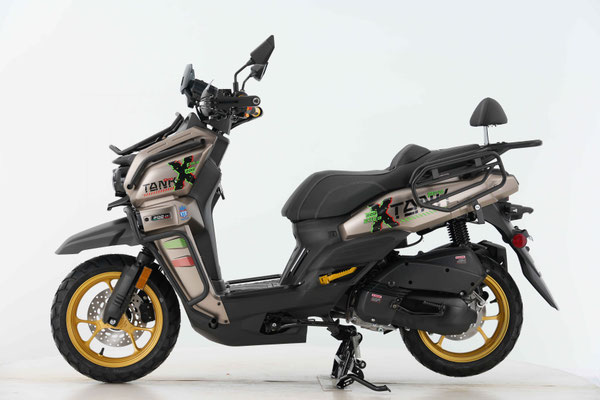

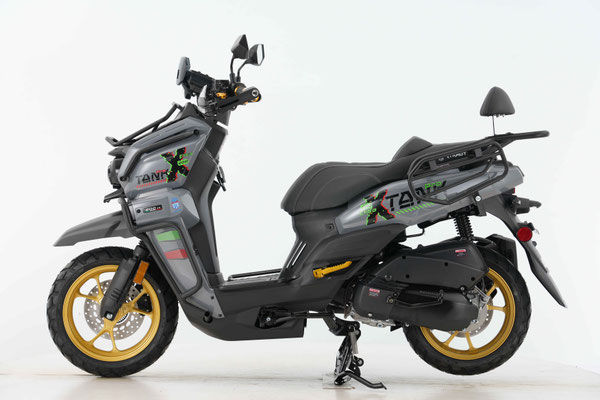

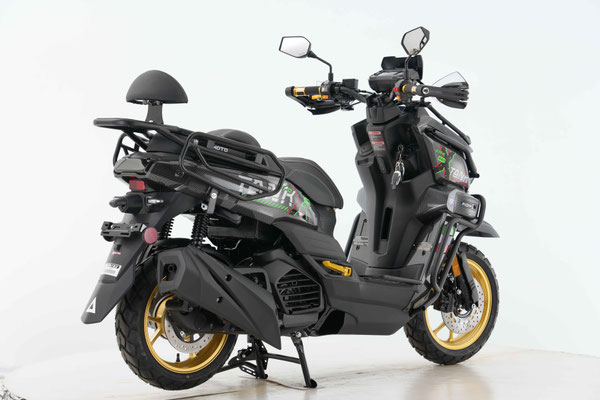

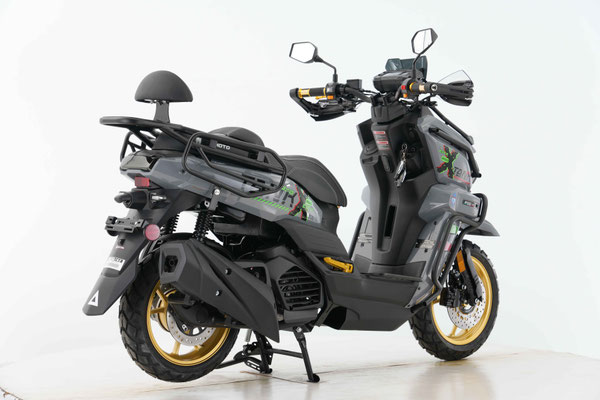

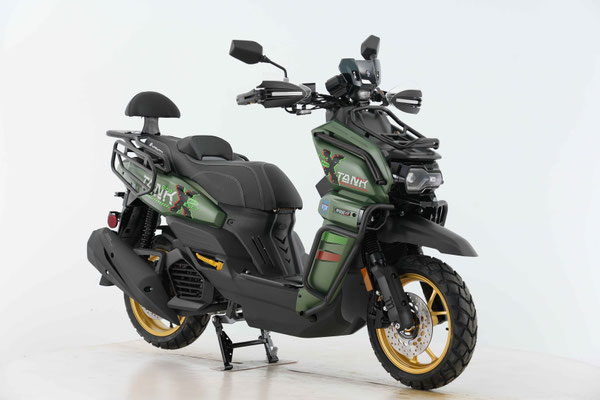

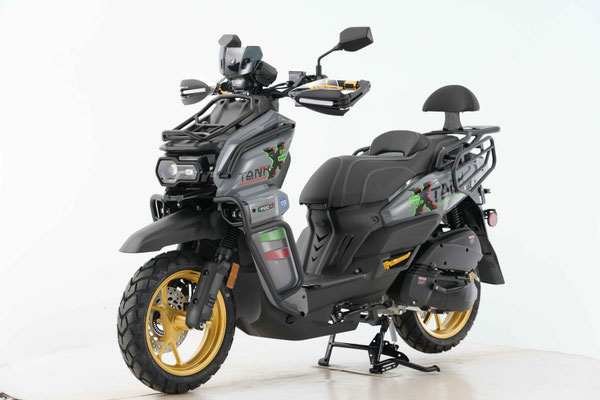

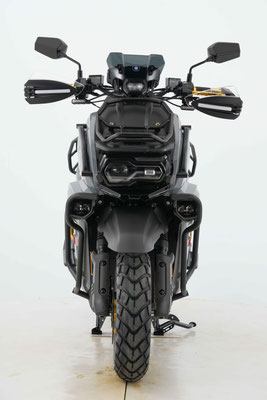

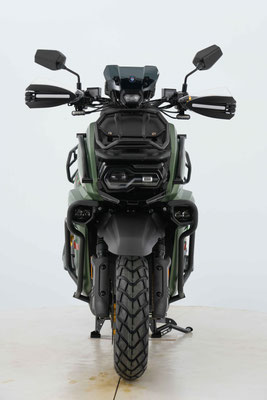

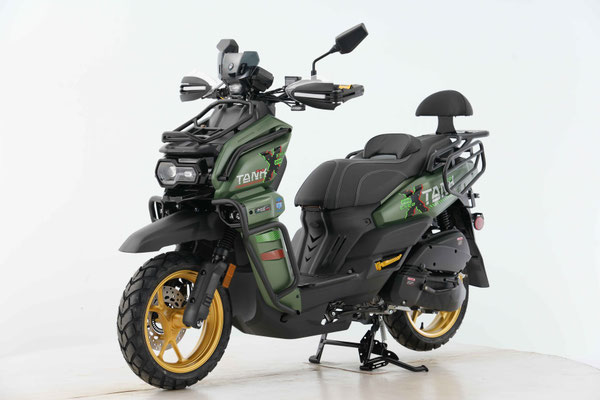

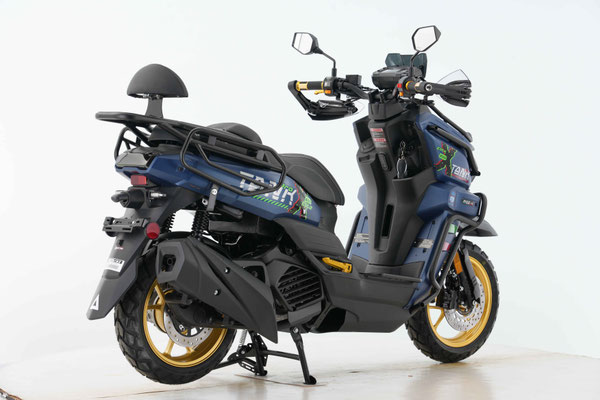

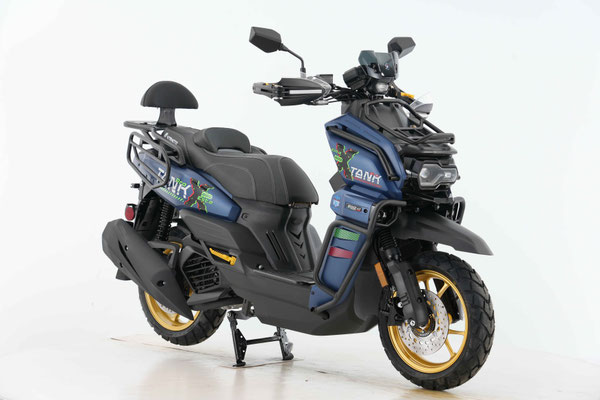

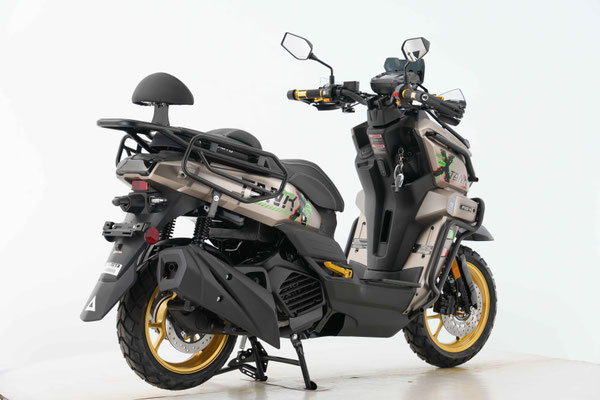

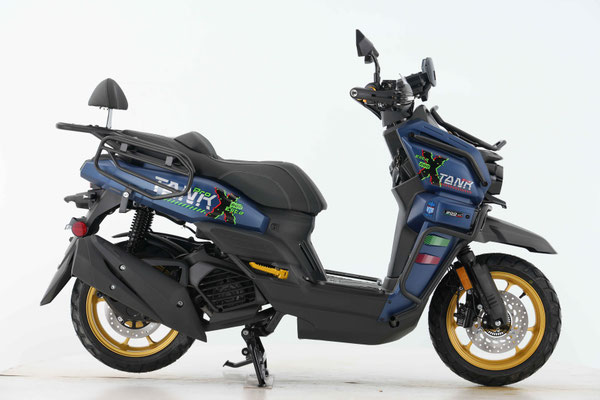

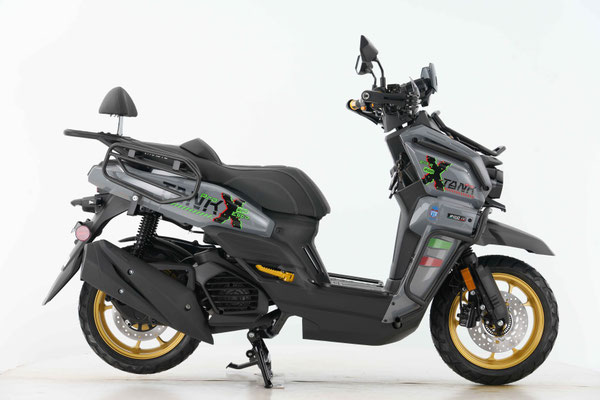

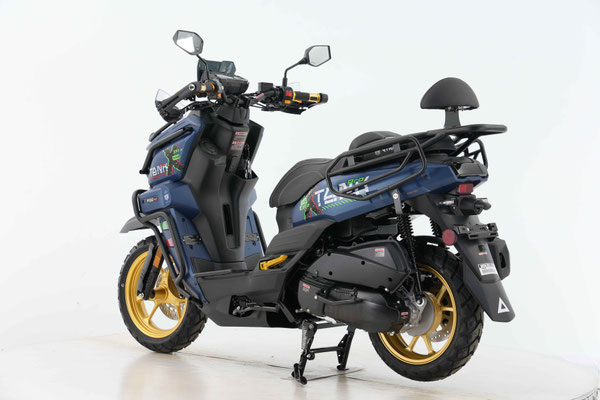

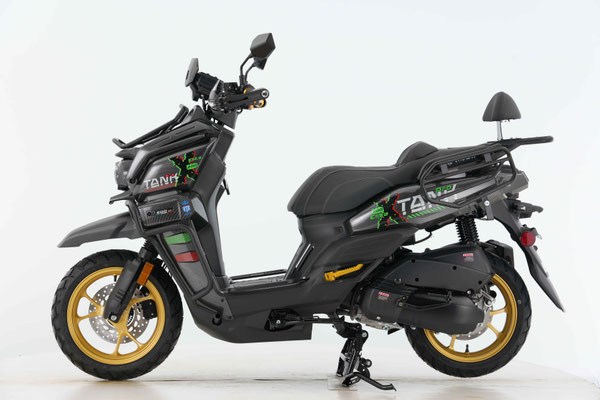

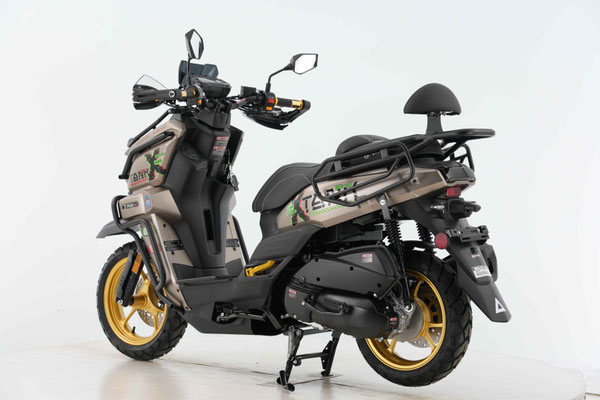

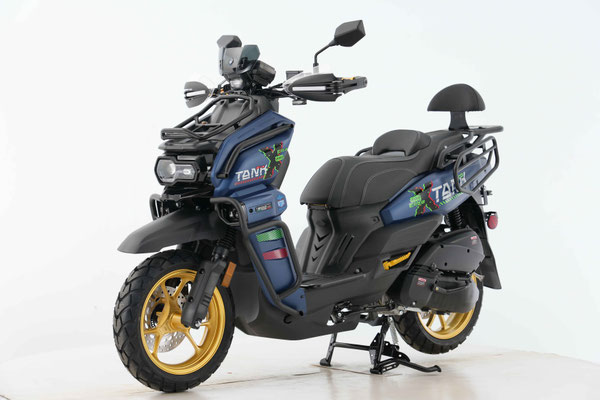

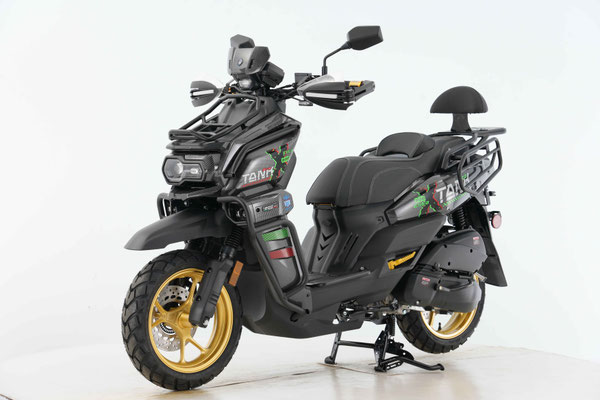

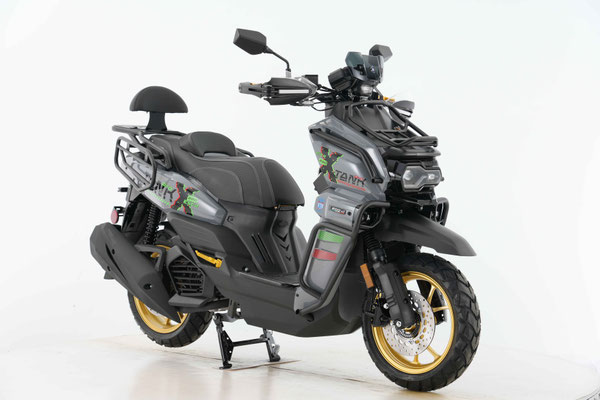

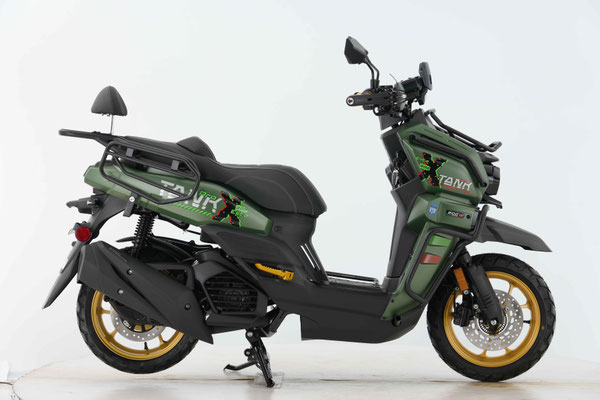

TANK PRO ELITE 200
SPECIFICATIONS
|
Category
|
Scooter
|
|
|
|
Displacement（cc）
|
168.9
|
|
Engine type
|
1P61QMK-A
|
|
|
Engine mode
|
1-cylinder/4-stroke/2-valve
|
|
|
Bore x stroke(mm)
|
ø61*57.8
|
|
|
Max.power
|
7.4kW/7000 r/min
|
|
|
Max.torque
|
11N·m/6000 r/min
|
|
|
Compression ratio
|
9.5:1
|
|
|
Fuel system
|
Carburetor
|
|
|
Valve train
|
SOHC
|
|
|
Ignition
|
C.D.I.
|
|
|
Starter
|
Electric & Kick
|
|
|
Lubrication system
|
Pressure splash lubrication
|
|
|
Cooling system
|
Forced-air-cooled
|
|
|
Gear shifting type
|
Automatic CVT
|
|
|
Transmission type
|
V-Belt
|
|
|
|
||
|
Clutch type
|
Automatic
|
|
|
Physical measures
|
Dry weight（kg）
|
122
|
|
Seat height（mm）
|
780
|
|
|
Overall length (mm)
|
1935
|
|
|
Overall width (mm)
|
725
|
|
|
Overall height (mm)
|
1240
|
|
|
Ground clearance (mm)
|
100
|
|
|
Wheelbase (mm)
|
1345
|
|
|
Chassis and dimensions
|
Frame type
|
Flat scooter
|
|
Front suspension
|
Telescopic forks, unadjustable
|
|
|
Front suspension travel (mm)
|
95
|
|
|
Rear suspension
|
Dual shock-absorber, preload adjustable
|
|
|
Rear suspension travel (mm)
|
60
|
|
|
Fr. tyre
|
130/70-13
|
|
|
Rr. tyre
|
130/70-13
|
|
|
Fr. Brakes
|
Disc, 2-piston caliper
|
|
|
Fr. brakes diameter (mm)
|
230
|
|
|
Rr. brakes
|
Disc, 2-piston caliper
|
|
|
Rear brakes diameter (mm)
|
220
|
|
|
Other specifications
|
Top speed（MPH）
|
59
|
|
Max.loadage (kg)
|
160
|
|
|
Fuel capacity(L)
|
5.6
|
|
|
Battery
|
12V，8.6Ah
|
|
|

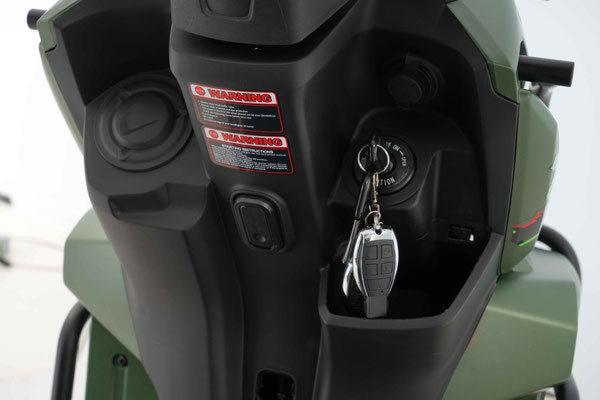

Keyless start system
|
YES
|
|
|

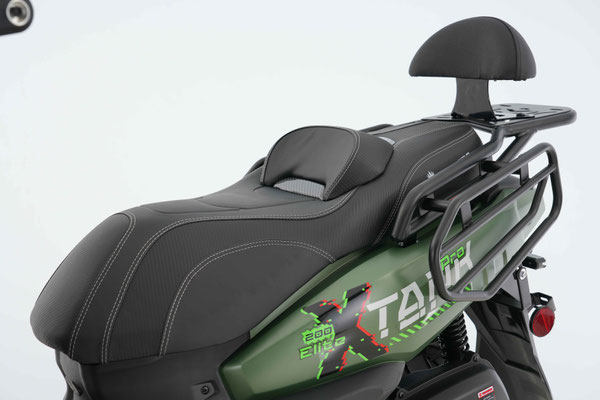

USB， ALARM ,BACKREST
|
HAVE
|
|
