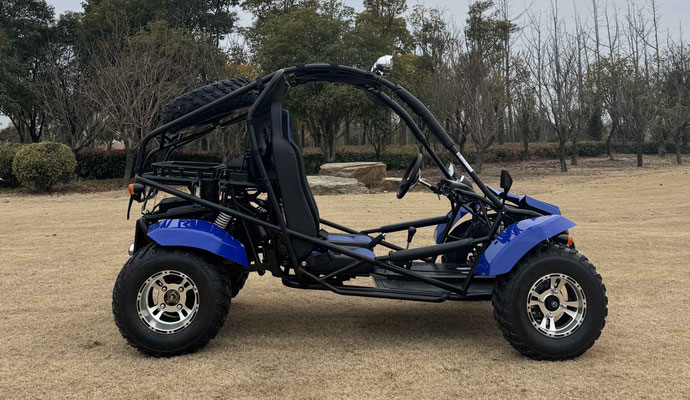

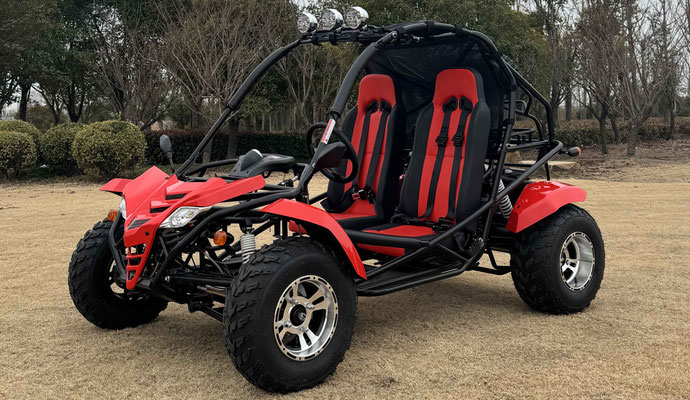

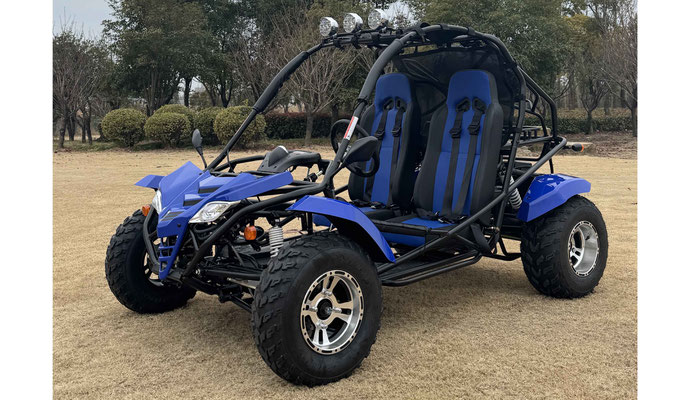

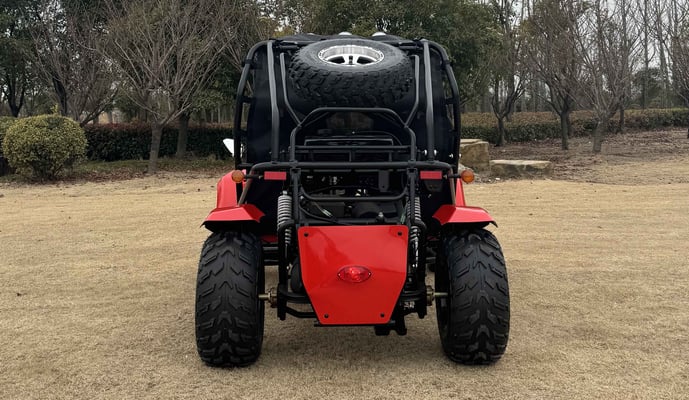

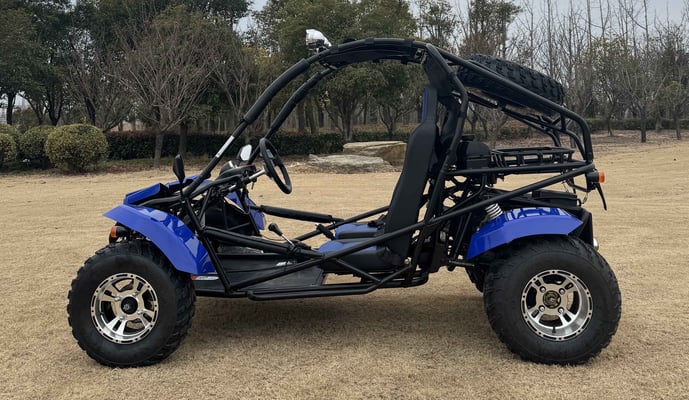

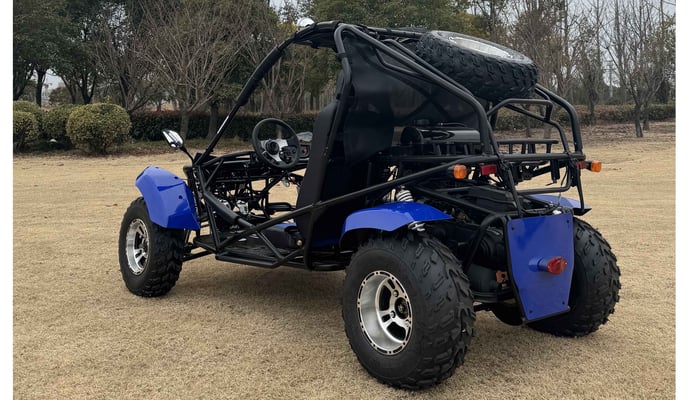

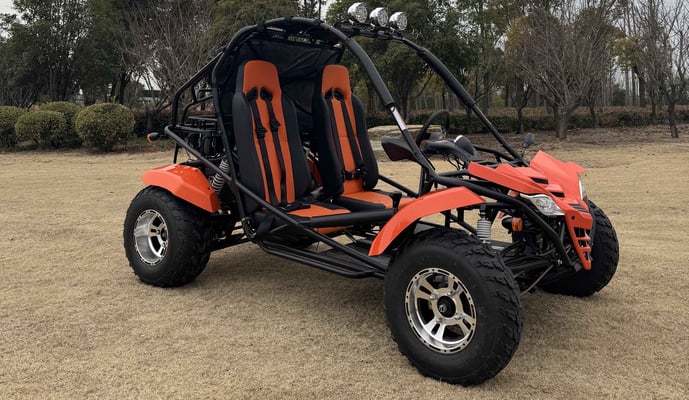

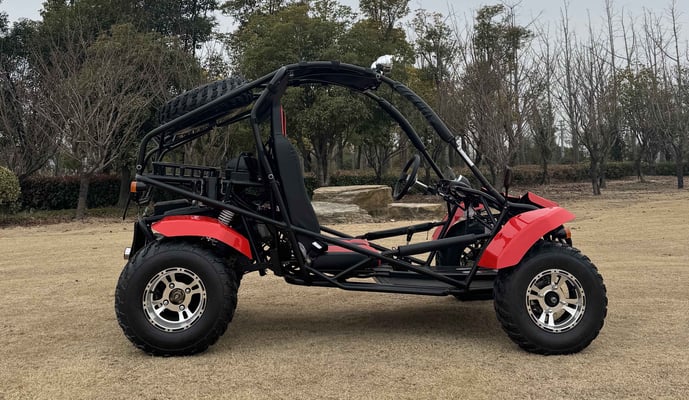

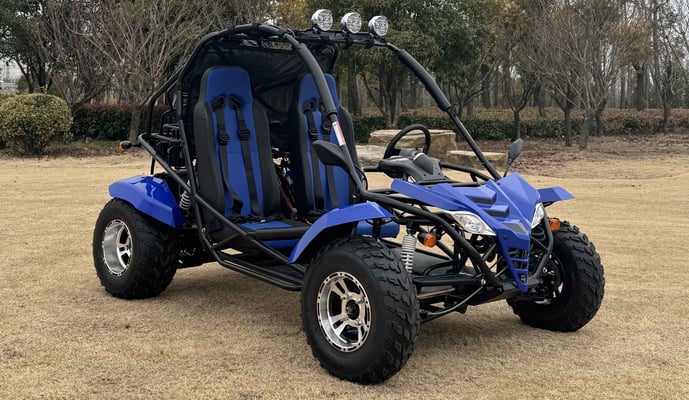

JAG 200 EFI (YK200G-2 ) Specification
|
|
Basic configuration
|
Option parts
|
|
Vehicle Specification
|
|
Overall Length
|
97.6 in. (2480mm)
|
|
Overall Width
|
61.14 in. (1553mm)
|
|
Overall Height
|
57.5 in.（1460mm）
|
|
Front Tire
|
AT21x7-10
|
|
Rear Tire
|
AT22x10-10
|
|
Wheelbase
|
68.5 in.(1740mm)
|
|
Min. ground clearance
|
4.7 inch (12cm)
|
|
Dry Weigh
|
586.43lbs (266kg)
|
|
Front Suspension
|
Double A-arm
|
|
Rear Suspension,
|
Drag arm suspension
|
|
Front Brake
|
Dual Hydraulic Disc
|
|
Rear Brake
|
Single Hydraulic Disc
|
|
Fuel Tank Capacity
|
2.3gal (8.5L)
|
|
Battery
|
12V 9Ah
|
|
Maximum Speed
|
43.7mile (70km/h)
|
|
Engine Specification
|
|
Engine Type
|
Four-Sroke, Single Cylinder
|
|
Displacement
|
168.9 cc
|
|
Bore & Stroke
|
61 × 57.8 mm
|
|
Compression Ratio
|
9.2：1
|
|
Fuel System
|
Electronic Fuel Injection (EFI)
|
|
Ignition
|
Electronic Control Unit (ECU)
|
|
Transmission
|
Automatic F-N-R
|
|
Drive Train
|
CVT belt, Chain drive
|
|
Cooling
|
Air cooling
|
|
Maximum power (Kw /r/min)
|
8.3KW/8000RPM
|
|
Maximum Torque (Nm /r/min)
|
11N·m/6000RPM
|
|

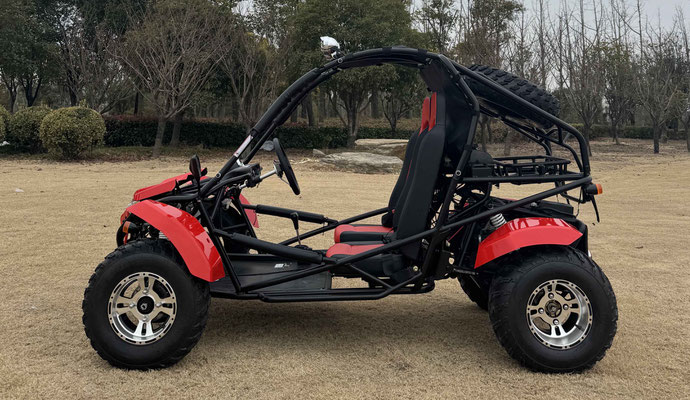

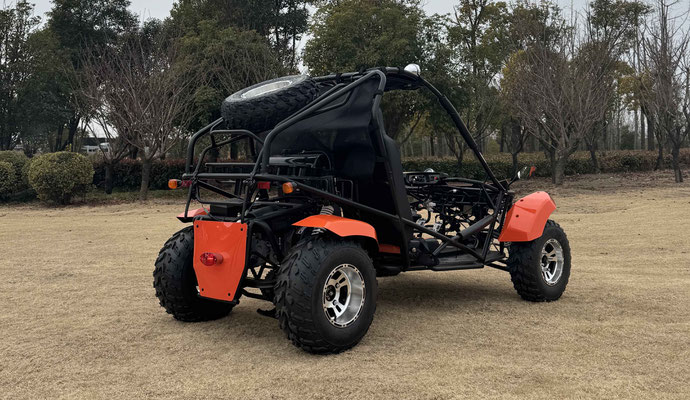

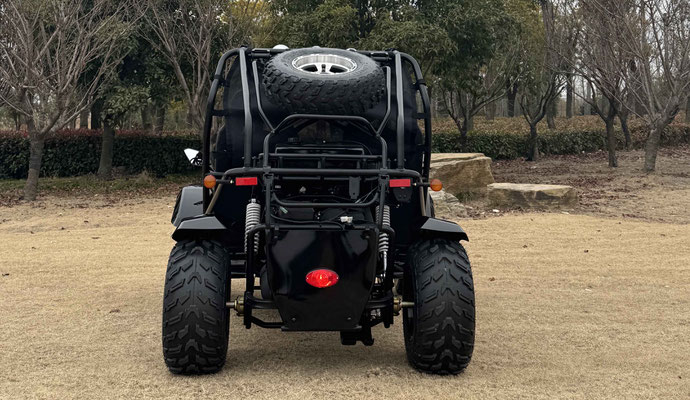

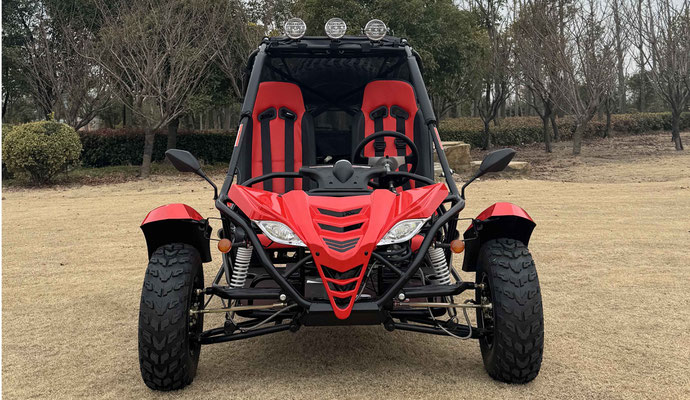

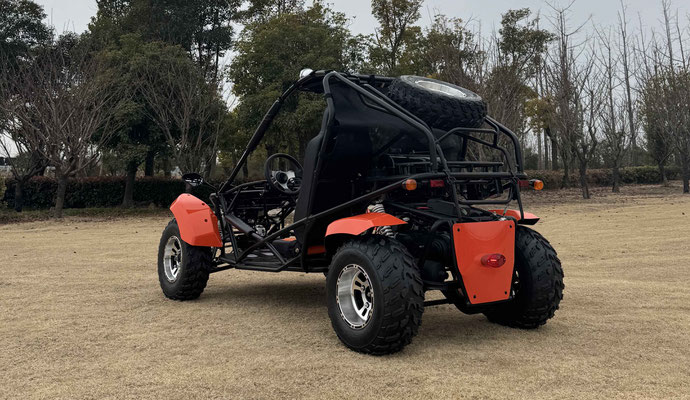

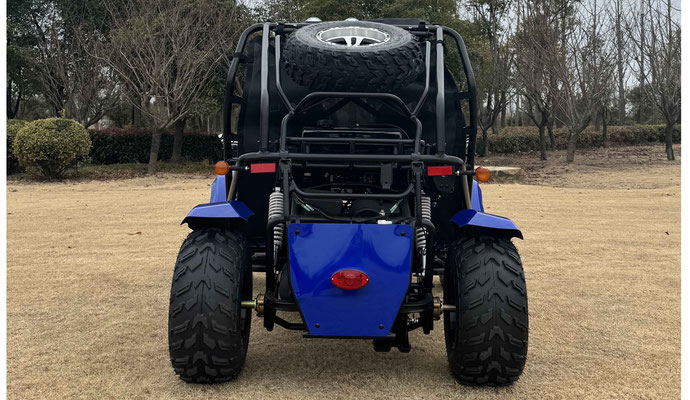

Color option
|
|
Red, Blue, Black, Orange
|
