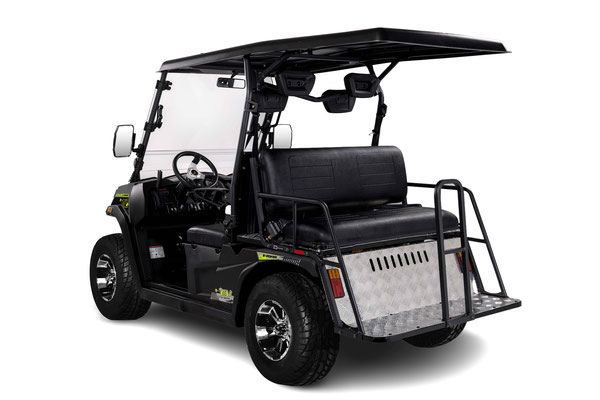

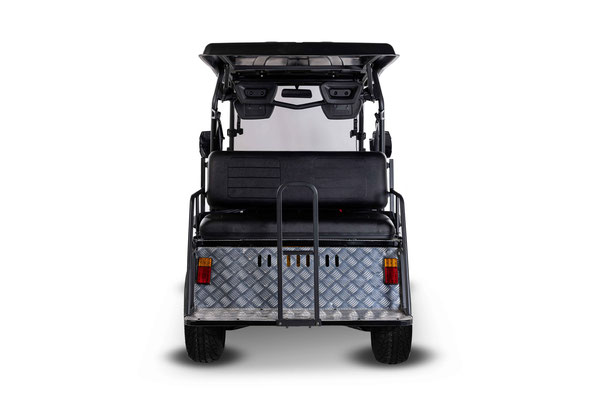

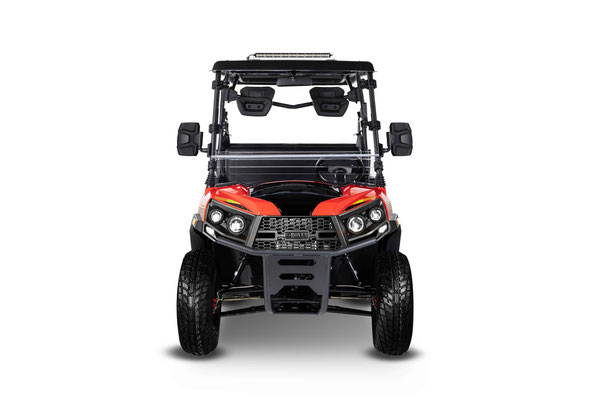

E-ROVER (LEAD ACID BATTERY)



SPECIFICATIONS

Overall Length  103.9"
Overall Width  52.8"
Overall Height 71.9"
Wheelbase  72.4"
Front Wheel Tread  44.1"
Rear Wheel Tread  39.8"
Minimum Ground Clearance  6.1"
Curb Weight 1282.60lbs
Gross Vehicle Weight : 1987.00lbs
Tire Size  24*8-12
Seating Capacity  Four persons
Max Forward Speed 40km/h
Available Model Colors True Timber ,Cyber Grey,Pearl White,Red,Blue
Power 48V150AH   Lead-acid gel battery
Motor  48-Volt AC
Output Rating  6.7 HP (5.0 kW)
Motor Control Unit  MC3818 Low-voltage AC controller

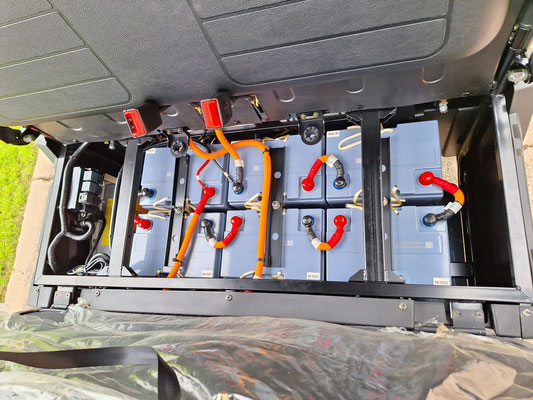

Batteries  Six,8 Volt Lead Acid Deep Cycle
Battery Charger 48V 25A,UL
Frame Welded Steel with Powder-Coat Protection
Body Plastics Spray Coating
Steering  Double Ended Rack & Pinion
Front Suspension  Independent Double A-Arm
Rear Suspension  Independent Double A-Arm
Brakes  Disk Brake Four Wheels
Person Capacity: 4
