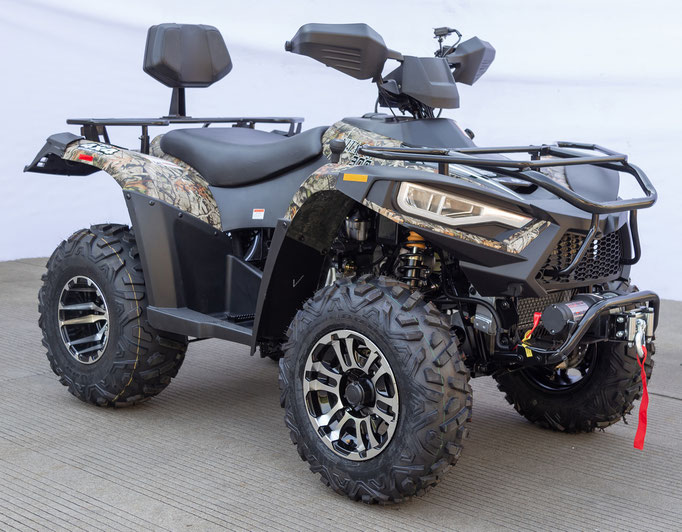

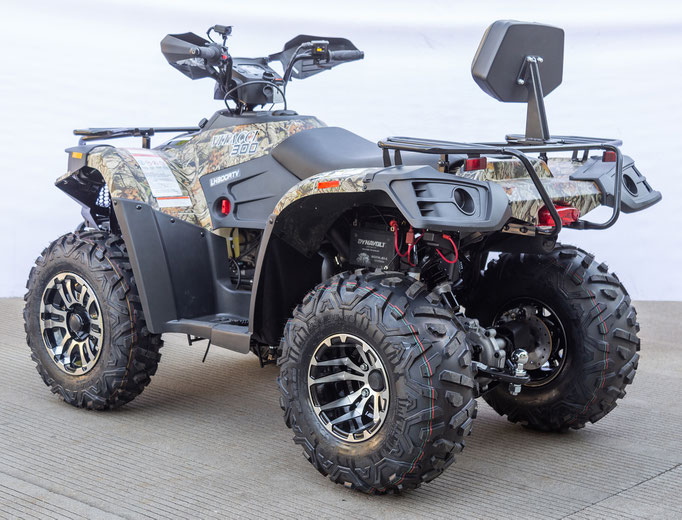

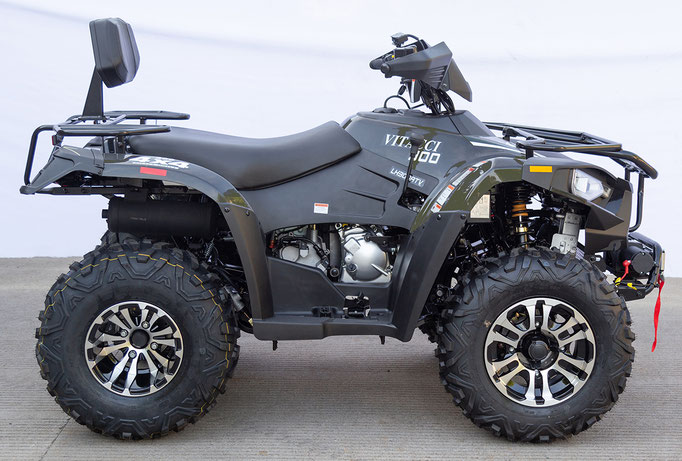

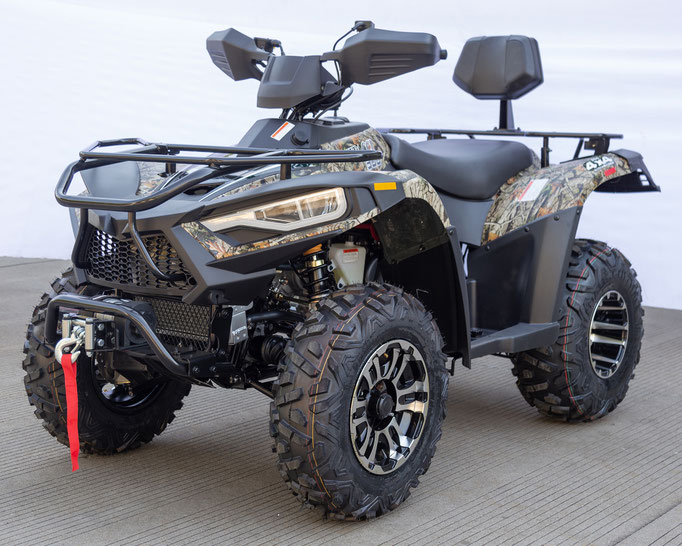

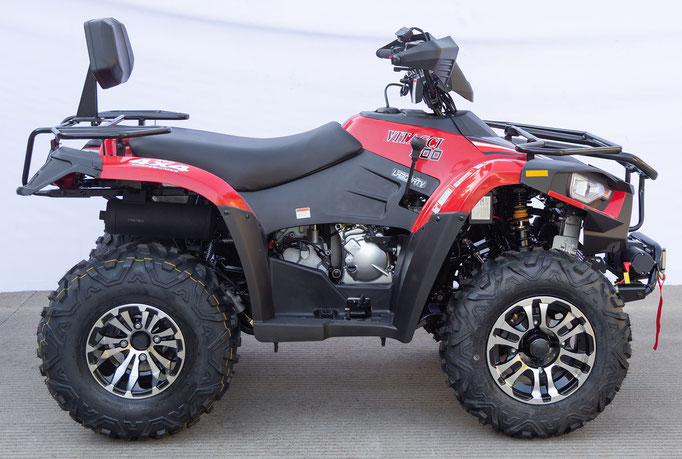

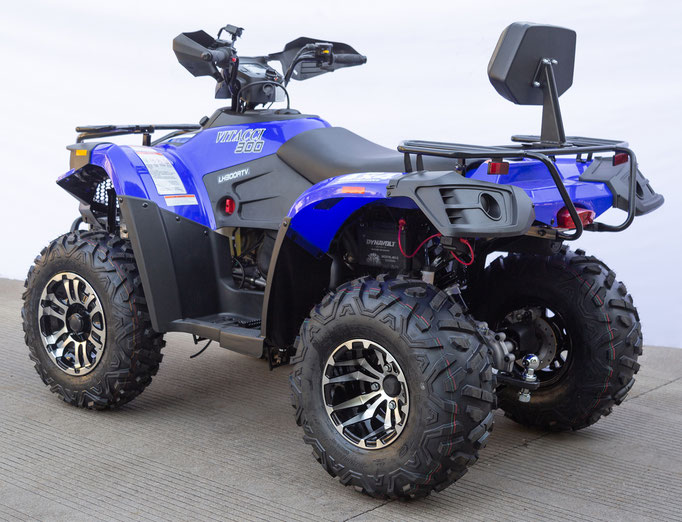

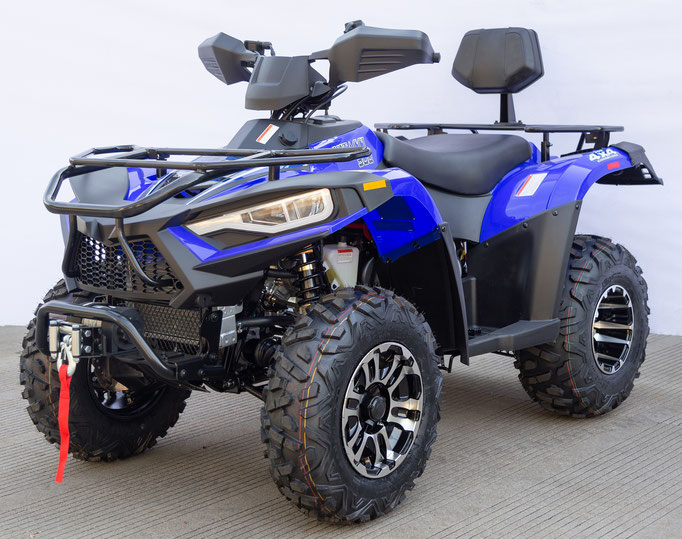

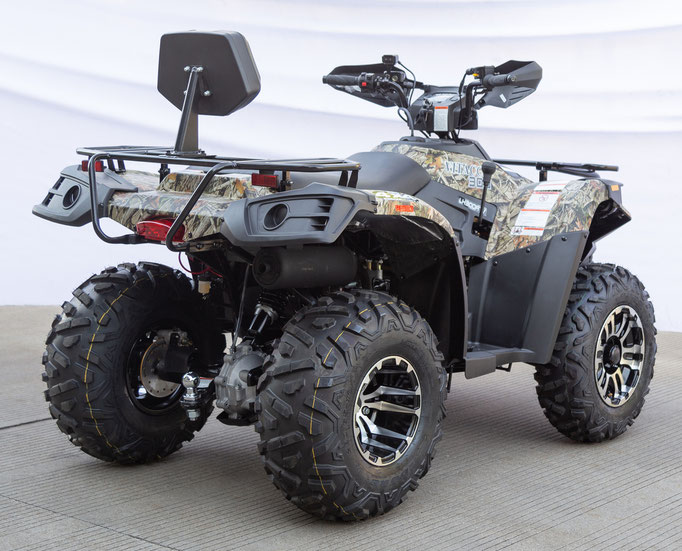

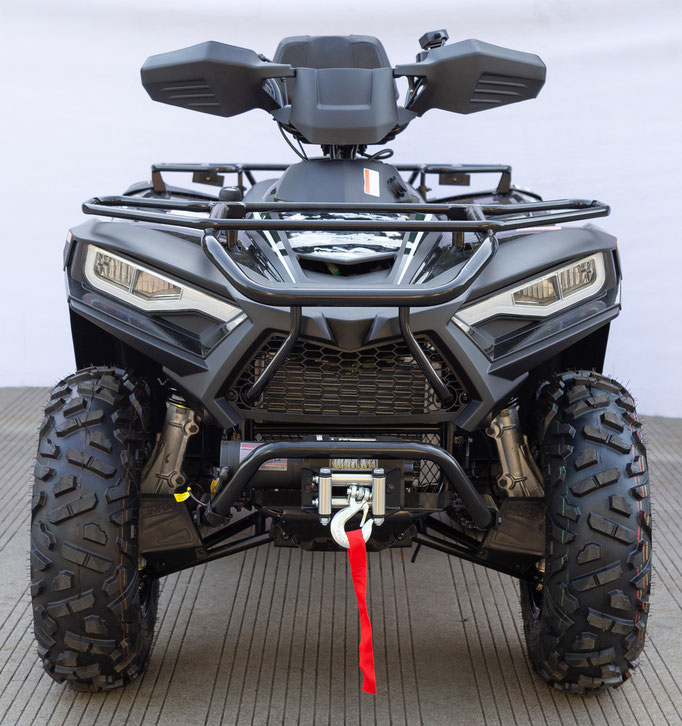

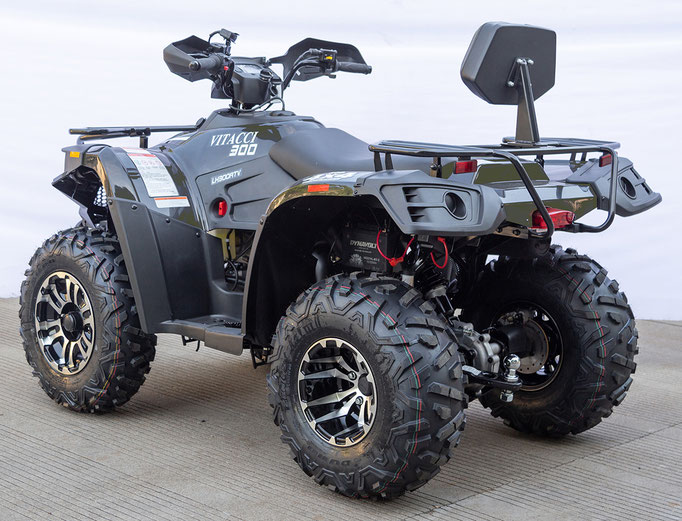

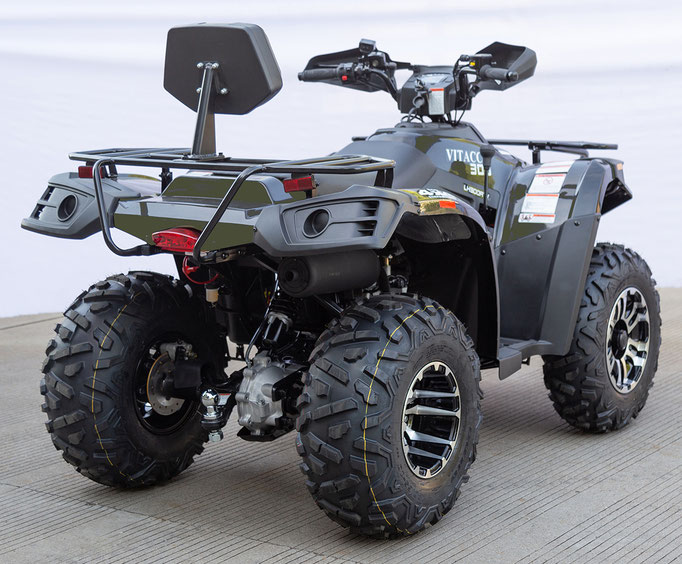

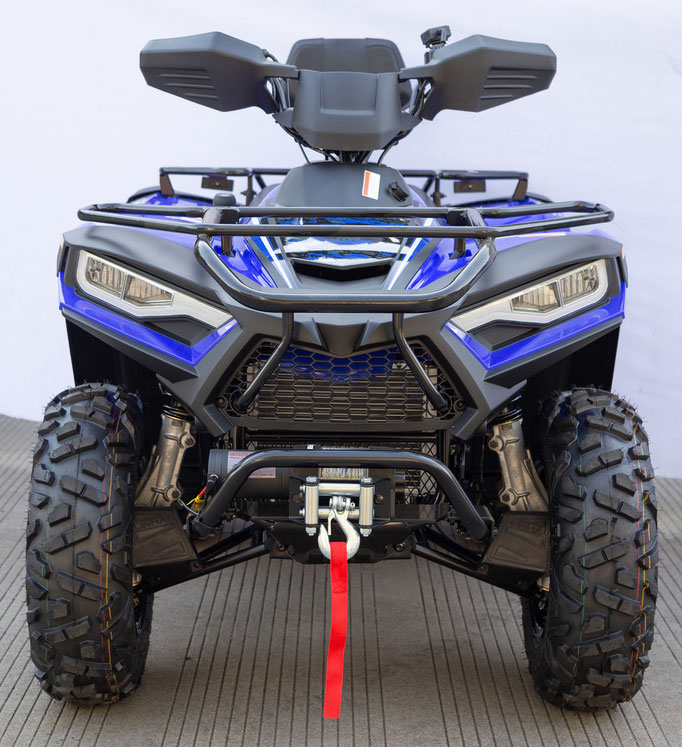

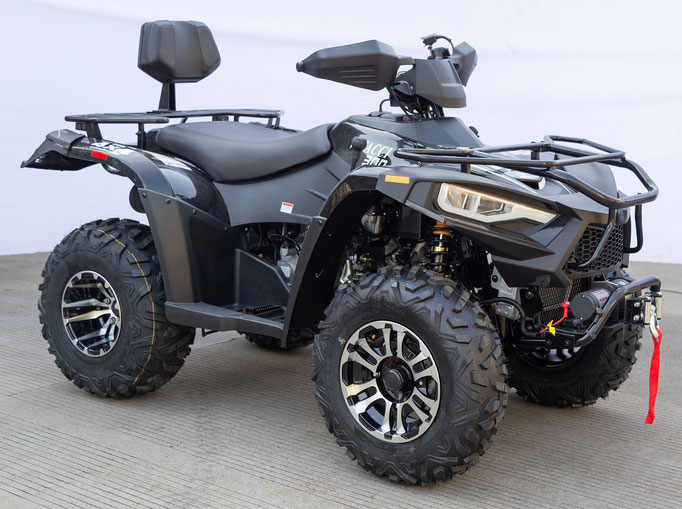

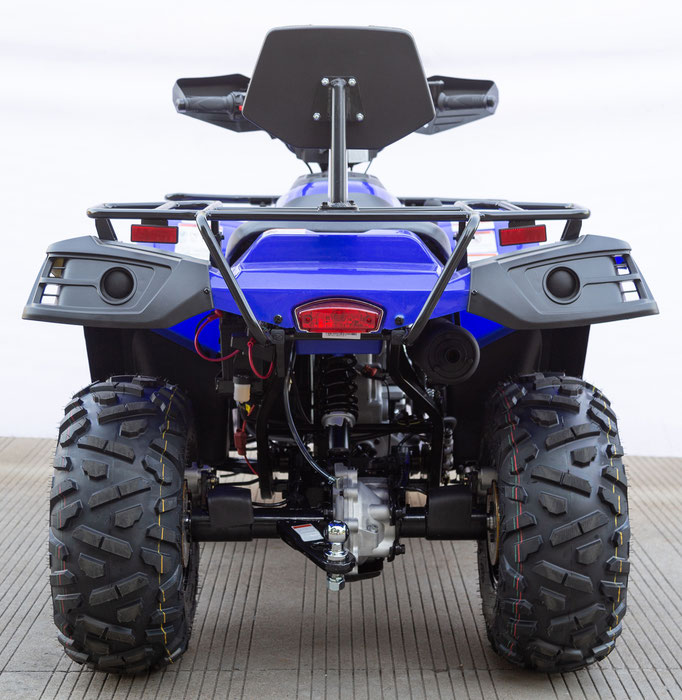

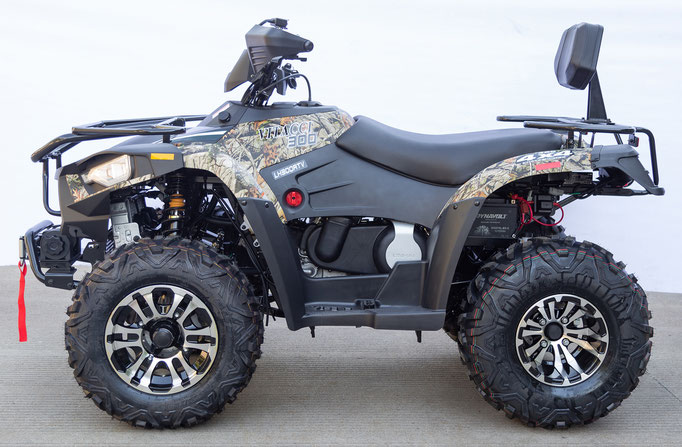

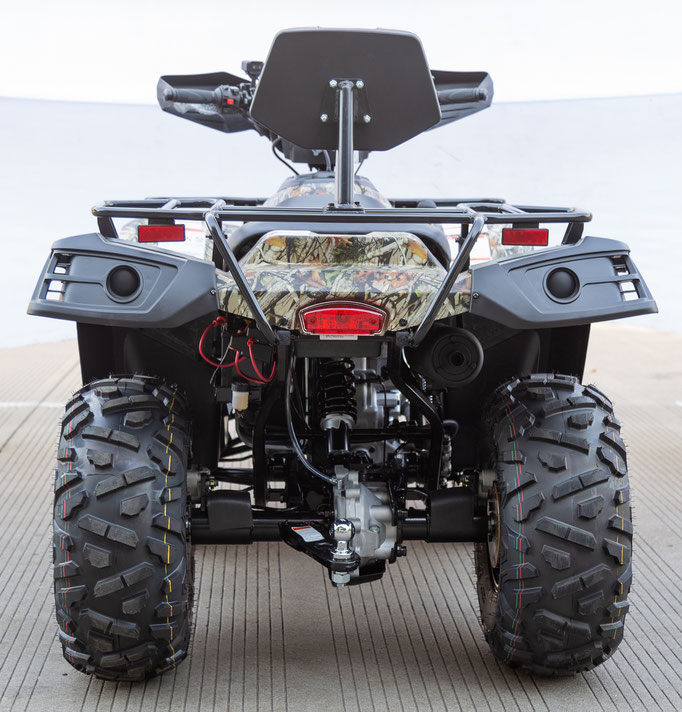

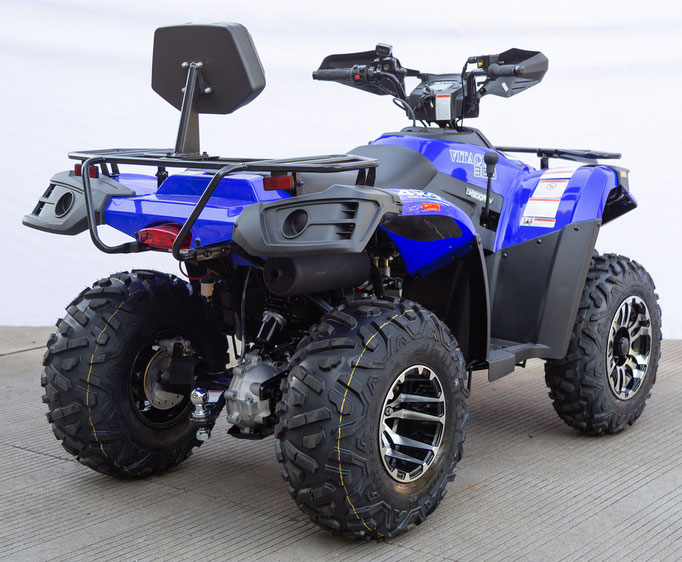

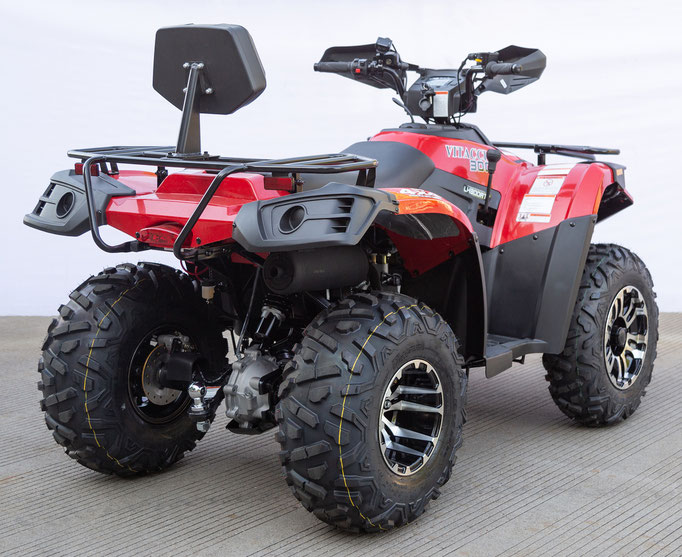

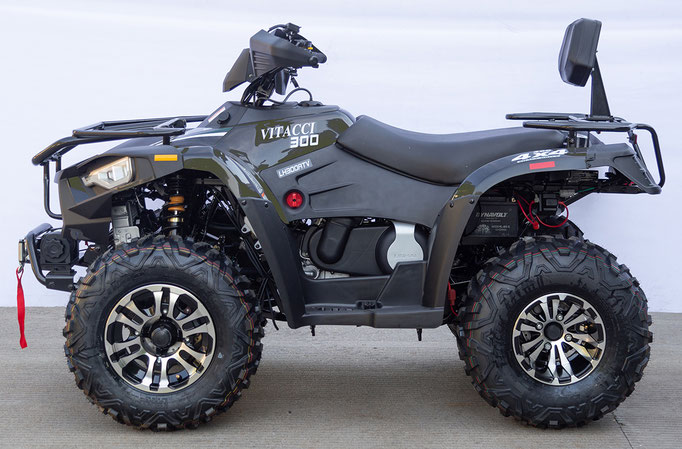

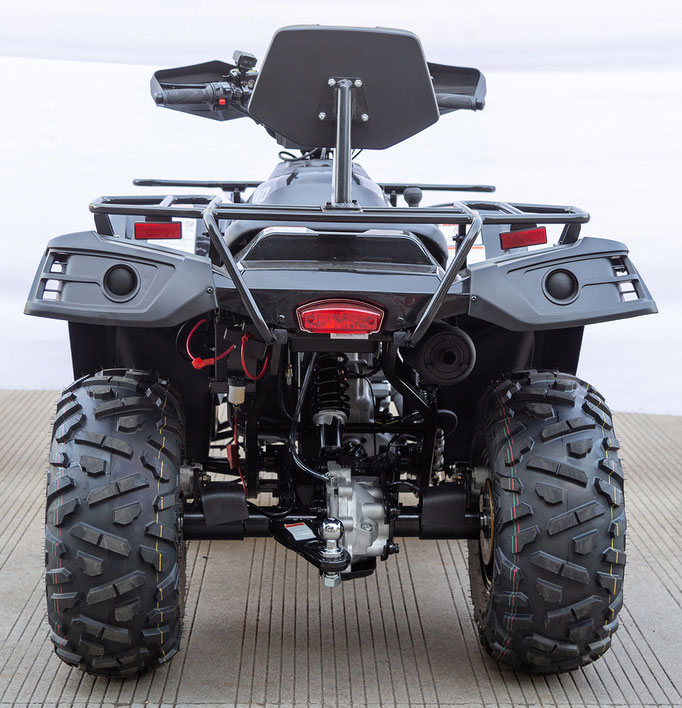

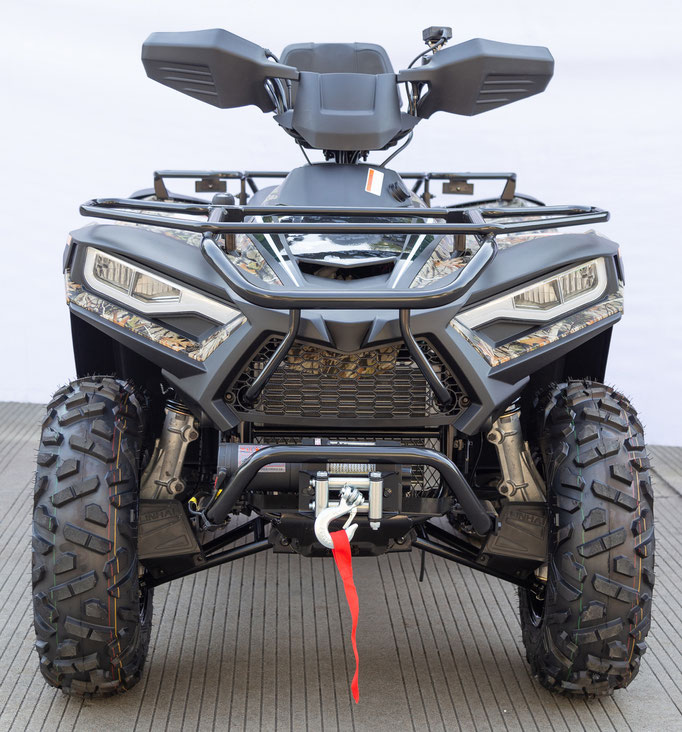

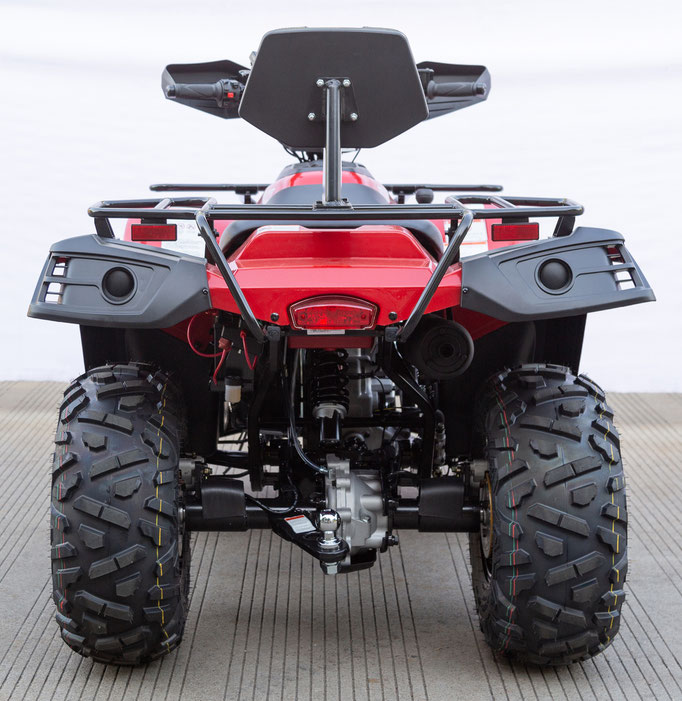

TERMINATOR 300


Vehicle specification



Overall Vehicle Size (L x W x H)

83x46x 50 in

Ground Clearance (inch)

7.2 in

Wheelbase (inch)

51 in

Weight with full equipment

618 lbs

Front / Rear Brakes

Two sides hydraulic disc

Parking Brake

Front / Rear hand brake,Foot brake

Front Tires

AT24X8-12

Rear Tires

AT24X11-10

Front Suspension

McPherson independent suspension

Rear Suspension

Socket centering structure

Fuel Capacity

3.8 gallons



Engine Specification



Engine model

LH173MN

Engine Type

Carburetor, 4 Stroke, Single Cylinder, SOHC, Water Cooling

Bore & stroke

2.85*2.63 in

Volumetric Compression Ratio

10.3:1

Displacement

257cc

Drive System Type

2WD or 4WD

Ignition type

T.C.I

Start type

Electric

Maximum  power (Kw /r/min)

22 HP @ 6500 RPM





AGE REQUIREMENT: (G16) 16-year-old and up

Download
ATV300-D USA PARTS MANUAL.pdf
Adobe Acrobat Document 7.2 MB
Download
ATV300-D USA PARTS MANUAL.xls
Microsoft Excel Table 6.6 MB
Download
ATV300 WEARING SPARE PARTS LIST.xlsx
Microsoft Excel Table 14.8 KB

Download
Terminator 300_ OWNERS MAUAL
Terminator 300_ OWNERS MAUAL.pdf
Adobe Acrobat Document 4.7 MB
